Mean Well A301-600-B2 Modified sine wave 600W 110V - DC-AC Inverter
Log in to see priceOverview
A301-600-B2 is the model of this series: rated power 600W, typical efficiency 82%.
Features
- 12V or 24V DC input
- Power ON-OFF switch
- Input voltage range: -15% ~ +25%
- Output voltage regulation:±10%
- Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
- Output waveform: Modified sine wave
- Cooling fan ON-OFF control
- Topology: Microprocessor
- Approvals: E13 / EAC / CE / UKCA
- 1 year warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- A301-600
- AC VOLTAGE
- 110V
- RATED POWER
- 600W
- SURGE POWER
- 1200W
- WAVEFORM
- Modified Sine Wave
- FREQUENCY
- 60Hz±1%
- AC REGULATION
- ±10%
- STANDARD RECEPTACLES
- TYPE-2* 2ea
- LED INDICATOR
- Green LED for power on; Red LED for power failure status
INPUT
- DC CURRENT
- 60A
- NO LOAD CURRENT DRAW
- 0.5A
- DC VOLTAGE
- 12V
- VOLTAGE RANGE
- 10 ~ 15VDC
- EFFICIENCY (Typ.)
- 82%
- DC CONNECTOR
- 900mm Battery clip*1ea
- FUSE
- 25 A * 3ea
PROTECTION
- BAT. LOW ALARM
- 10±0.5V
- BAT. LOW SHUTDOWN
- 9.5±0.5V
- OVER LOAD
- >750W shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 15 ~ 17V
- OVER TEMPERATURE
- 60±5℃ / 140±9oF
- OUTPUT SHORT
- Shut-off
- BAT. POLARITY
- By fuse open
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +30℃@100% load, 40℃@ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.05% / ℃ (0 ~ 50℃)
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms min./ 500VDC / 25℃/ 70% RH
- EMI RADIATION
- Compliance to BS EN/EN55014-1, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
- LVD
- Compliance to BS EN/EN62368-1
OTHERS
- MTBF
- 100Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 210*173*65mm (L*W*H)
- PACKING
- 2.1kg ; 8pcs / 20kg / CARTON
- COOLING
- by fan, >50% load fan on
- APPLICATIONS
- Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

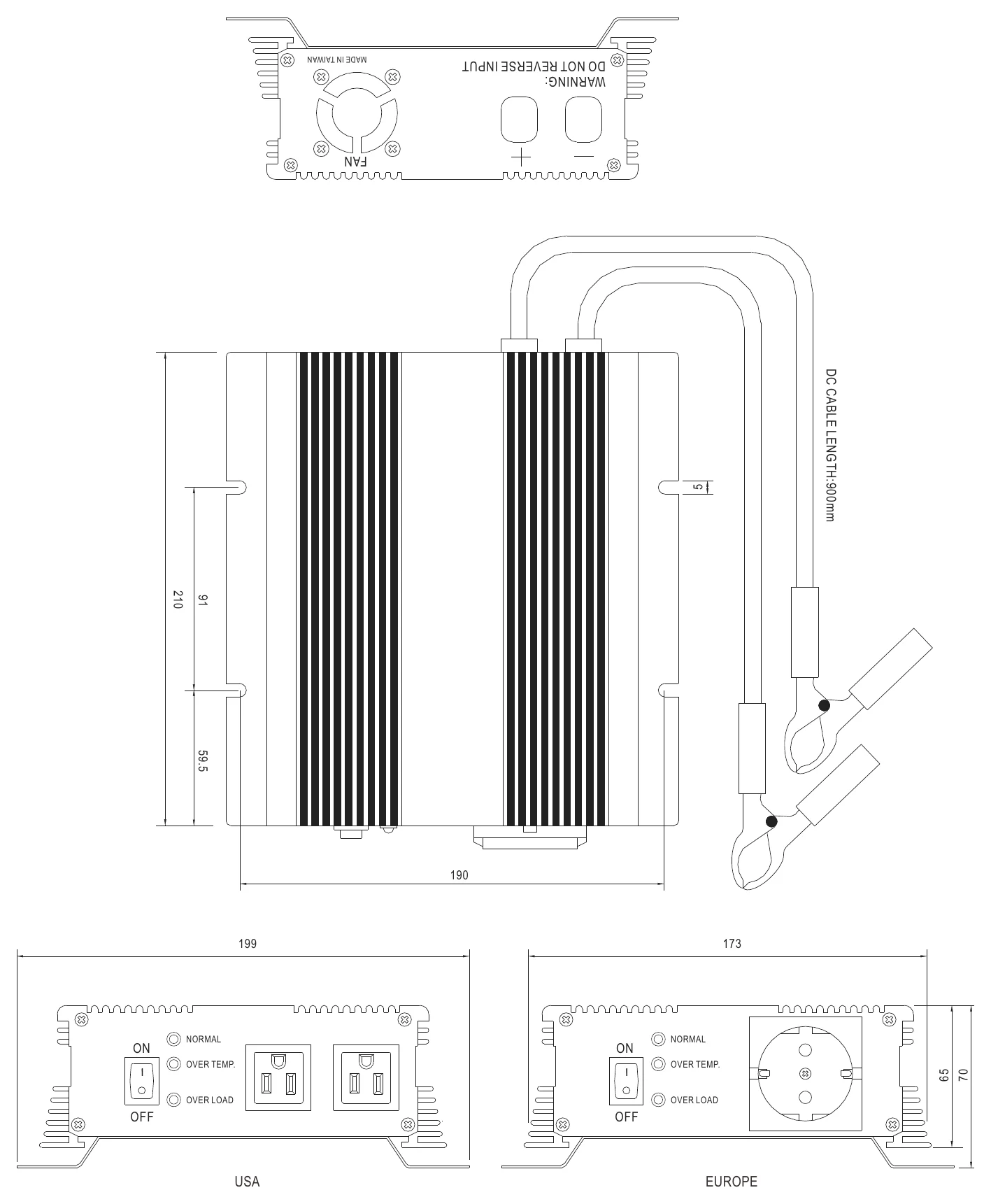

Technical drawings
