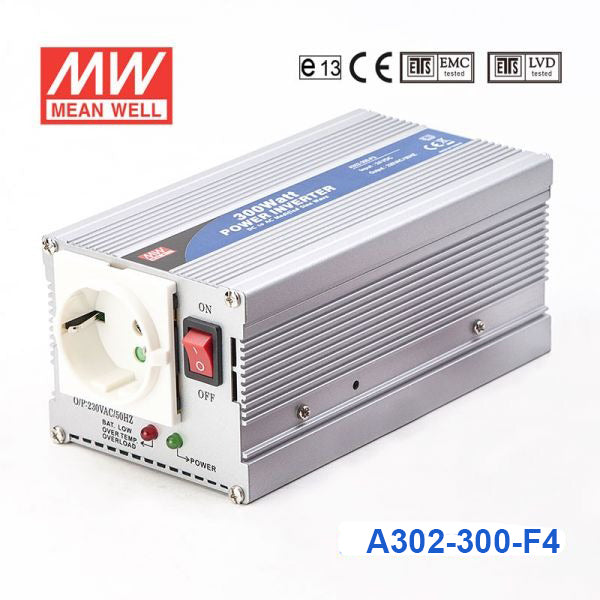

Mean Well A302-300-F4 Modified Sine Wave 300W 230V DC-AC Power Inve...
Please Login for Pricing
Description
Description
The A302-300 is a 300W Mean Well. power converter. and an input range of 10~15VDC.
Key Features
- ✓ Input voltage range: 10~15VDC
- ✓ Protections: Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating300 Watt
-
Output Voltage230 Volt
-
Input Voltage21V~30V
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length16.5 cm
-
Width8.8 cm
-
Height7.4 cm
-
Weight1.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of inverter is the Mean Well A302-300-F4?
The A302-300-F4 is a 300W DC-AC power inverter with a modified sine wave output. It is designed for applications that need AC power from a DC source and includes microprocessor-based control plus multiple built-in protections.
What output voltage does this model provide?
The product name and structured product data identify this model as a 230V output inverter. The embedded description table also shows a 110V AC output entry, so this specification should be confirmed against the official datasheet or supplier listing before purchase.
Is this a pure sine wave inverter?
No. The A302-300-F4 uses a modified sine wave output rather than a pure sine wave. Buyers who specifically require pure sine output for sensitive equipment should compare this model with a pure sine wave alternative.
What protections are built into the A302-300-F4?
This inverter includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short. The product data also states that output short protection operates by shut-off.
What operating temperature range is specified for this inverter?
The listed working condition is 0 to 30°C at 100% load, and 40°C at 50% load. That makes it important to consider both ambient temperature and load level when evaluating it for enclosed or warmer environments.
What approvals and compliance marks are listed for this model?
The product description lists E13, EAC, CE, and UKCA approvals. It also references EAC TP TC 004 for safety and IEC61000-4-2,3 plus EAC TP TC 020 for EMC-related standards.
What are the size, weight, and warranty for the A302-300-F4?
The listed dimensions are 165 x 88 x 74 mm, and the product weight is 1.1 kg. This model is supplied with a 1-year warranty.
Other A302-300 Models
3 other models| Model | Power | Voltage | Waveform | Frequency | |
|---|---|---|---|---|---|
| Mean Well A302-300-F5 Modified sine wave 300W 230V - DC-AC Inverter | 300W | 230V | Modifined Sine Wave | 50Hz | View |
| Mean Well A302-300-B4 Modified Sine Wave 300W 110V - DC-AC Power Inverter | 300W | 110V | Modifined Sine Wave | 60Hz | View |
| Mean Well A302-300-B2 Modified sine wave 300W 110V - DC-AC Inverter | 300W | 110V | Modifined Sine Wave | 60Hz | View |
