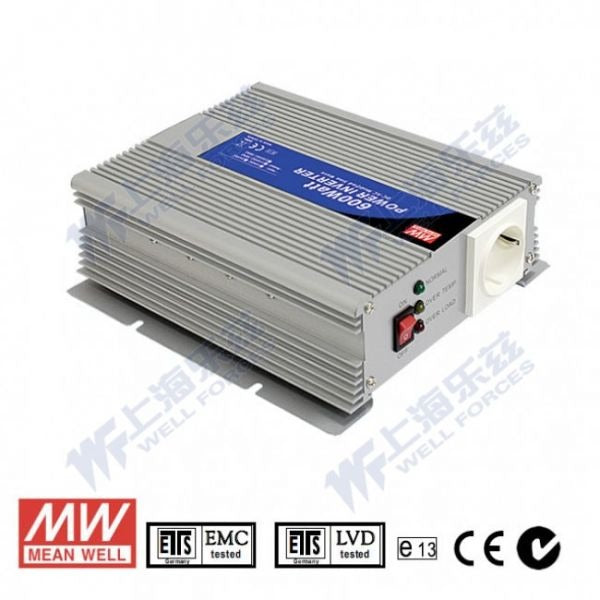

Mean Well A302-600-F5 Modified sine wave 600W 230V - DC-AC Inverter
Log in to see priceOverview
A302-600-F5 is the model of this series: rated power 600W, typical efficiency 85%.
Features
- 12V or 24V DC input
- Power ON-OFF switch
- Input voltage range: -15% ~ +25%
- Output voltage regulation:±10%
- Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
- Output waveform: Modified sine wave
- Cooling fan ON-OFF control
- Topology: Microprocessor
- Approvals: E13 / EAC / CE / UKCA
- 1 year warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- A302-600
- AC VOLTAGE
- 230V
- RATED POWER
- 600W
- SURGE POWER
- 1200W
- WAVEFORM
- Modified Sine Wave
- FREQUENCY
- 50Hz±1%
- AC REGULATION
- ±10%
- STANDARD RECEPTACLES
- TYPE-5 (Australia)
- LED INDICATOR
- Green LED for power on; Red LED for power failure status
INPUT
- DC CURRENT
- 30A
- NO LOAD CURRENT DRAW
- 0.38A
- DC VOLTAGE
- 24V
- VOLTAGE RANGE
- 21 ~ 30VDC
- EFFICIENCY (Typ.)
- 85%
- DC CONNECTOR
- 900mm Battery clip*1ea
- FUSE
- 20 A * 3ea
PROTECTION
- BAT. LOW ALARM
- 21±1V
- BAT. LOW SHUTDOWN
- 20±1V
- OVER LOAD
- >750W shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 30 ~ 32V
- OVER TEMPERATURE
- 60±5℃ / 140±9oF
- OUTPUT SHORT
- Shut-off
- BAT. POLARITY
- By fuse open
ENVIRONMENT
- WORKING TEMP.
- 0 ~ +30℃@100% load, 40℃@ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.05% / ℃ (0 ~ 50℃)
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms min./ 500VDC / 25℃/ 70% RH
- EMI RADIATION
- Compliance to BS EN/EN55014-1, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
- LVD
- Compliance to BS EN/EN62368-1
OTHERS
- MTBF
- 100Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 210*173*65mm (L*W*H)
- PACKING
- 2.1kg ; 8pcs / 20kg / CARTON
- COOLING
- by fan, >50% load fan on
- APPLICATIONS
- Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
Technical drawings
Downloads
FAQ
What is the Mean Well A302-600-F5 used for?
The A302-600-F5 is a DC-AC inverter designed to convert 24V DC input into 230V AC output. It is suited to applications that need up to 600W of modified sine wave AC power from a DC power source.
Is the A302-600-F5 a pure sine wave inverter?
No. This model produces a modified sine wave output rather than a pure sine wave. Buyers comparing inverter types should check that their intended equipment is suitable for modified sine wave power.
What are the main electrical specifications of this inverter?
This model is rated for 600W output power and provides 230V AC output. It accepts 24V DC input (21 ~ 30VDC range), and its output voltage regulation is specified at ±10%.
What protection features are included on the A302-600-F5?
The inverter includes protection for battery reverse polarity (by fuse open), battery low shutdown, over voltage, overload, over temperature, and output short conditions. Output short protection is specified as shut-off.
What operating temperature range is specified for this model?
The specified working temperature is 0 to 30°C at 100% load, and up to 40°C at 50% load. The over temperature protection point is listed as 60±5°C.
Does the A302-600-F5 include cooling and switching features?
Yes. It has an ON/OFF power switch on the front panel and is cooled by a built-in fan, which switches on above 50% load.
What approvals does this inverter have?
The A302-600-F5 carries the E13 mark and EAC TP TC 004 safety approval. It complies with BS EN/EN62368-1 (LVD) and BS EN/EN55014-1/-2 (EMC).
What are the size and weight of the A302-600-F5?
The listed dimensions are 210 × 173 × 65 mm. The product weight provided is 2.1 kg.
