Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

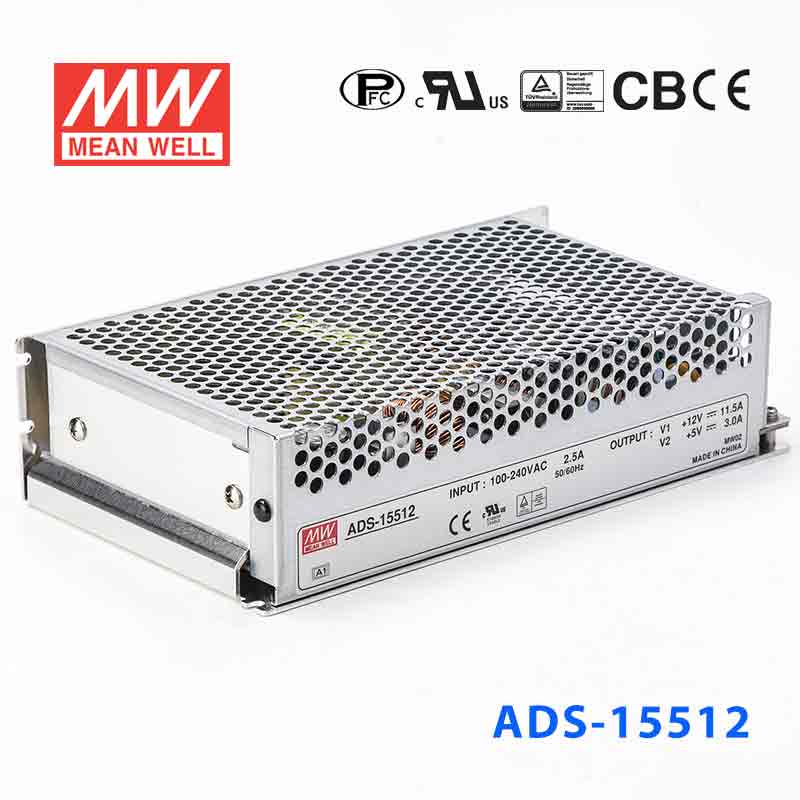

Mean Well ADS-15512 Power Supply 153W 12V 11.5A - 5V Output

100% full load burn-in test, fixed switching frequency at 45KHz, UPS function

|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
2 years warranty

General Specification

I/P-O/P:3KVAC; I/P-FG:2.0KVAC; O/P-FG:0.5KVAC
AC input voltage range 88~264VAC; 124~370VDC
AC inrush current COLD START 23A/115VAC; 45A/230VAC
Leakage current

<1mA / 240VAC

Overload protection 105%~135% rated output power
Over-voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1000ms, 2000ms, 24ms
Withstand voltage
Working temperature -10~+60°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Case No. 906
Dimension (LxWxH) 199x110x50 mm
Packing 16pcs / 16kg

Specifications

  • Brand
    Mean Well
  • Series
    ADS Series
  • Power Rating
    153 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    11.5 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    19.9 cm
  • Width
    11 cm
  • Height
    5 cm
  • Weight
    1 kg
