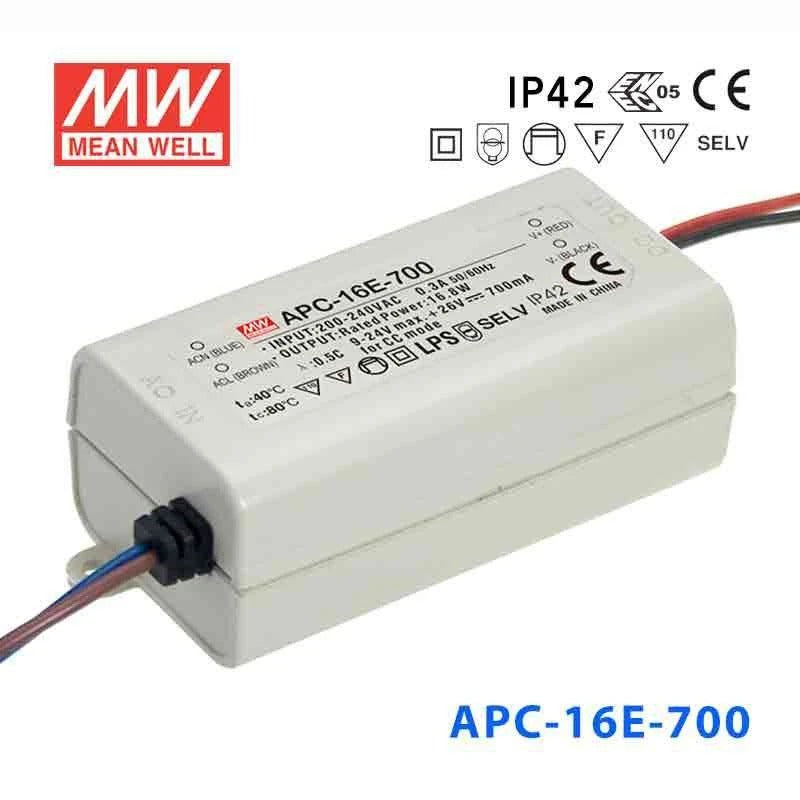

Mean Well APC-16E-700 Power Supply 16W 700mA

Class II designlow costsmall and compactIP42

SKU:

APC-16E-700

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The APC-16E is a 16W Mean Well. power converter. and an input range of 12~48V.

Key Features

✓ Input voltage range: 12~48V
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~70℃
✓ Protections: Over voltage
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13, EN62384 IP42
✓ 3 years warranty

Frequently Asked Questions

What type of power supply is the Mean Well APC-16E-700?

The APC-16E-700 is a constant current LED power supply rated at 700mA. It is designed for LED lighting and moving sign applications, with a maximum output power of 16.8W and an output voltage of 24V.

Is the APC-16E-700 dimmable?

No, this model does not include a dimming control function. It is intended for applications that require a fixed 700mA constant current output rather than adjustable light output.

Where is the APC-16E-700 typically used?

Mean Well specifies this model for LED lighting and moving sign applications. Its compact plastic case, Class 2 design, and constant current output make it suitable for low-power commercial and light electrical LED use cases.

Can the APC-16E-700 be used in demanding temperature conditions?

This model has a working temperature range of -30°C to +70°C, subject to the output derating curve. That makes it suitable for environments where ambient temperatures vary significantly, provided the application stays within the product's rated operating conditions.

What protection and reliability features does the APC-16E-700 include?

The APC-16E-700 includes short circuit, overload, and over voltage protection. It uses hiccup mode with auto-recovery for protection behavior, is cooled by free air convection, and is 100% full load burn-in tested to support reliable operation.

What standards and enclosure characteristics does this model offer?

The APC-16E-700 is built with a fully isolated plastic case and an IP42 design. It is approved to ENEC EN61347-1, EN61347-2-13, and EN62384 safety standards, and it also meets the listed EMC standards including EN55015 and EN61547.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APC-16E-350 Power Supply 16W 350mA	16.8W	48V	0.35A	Indoor	View
