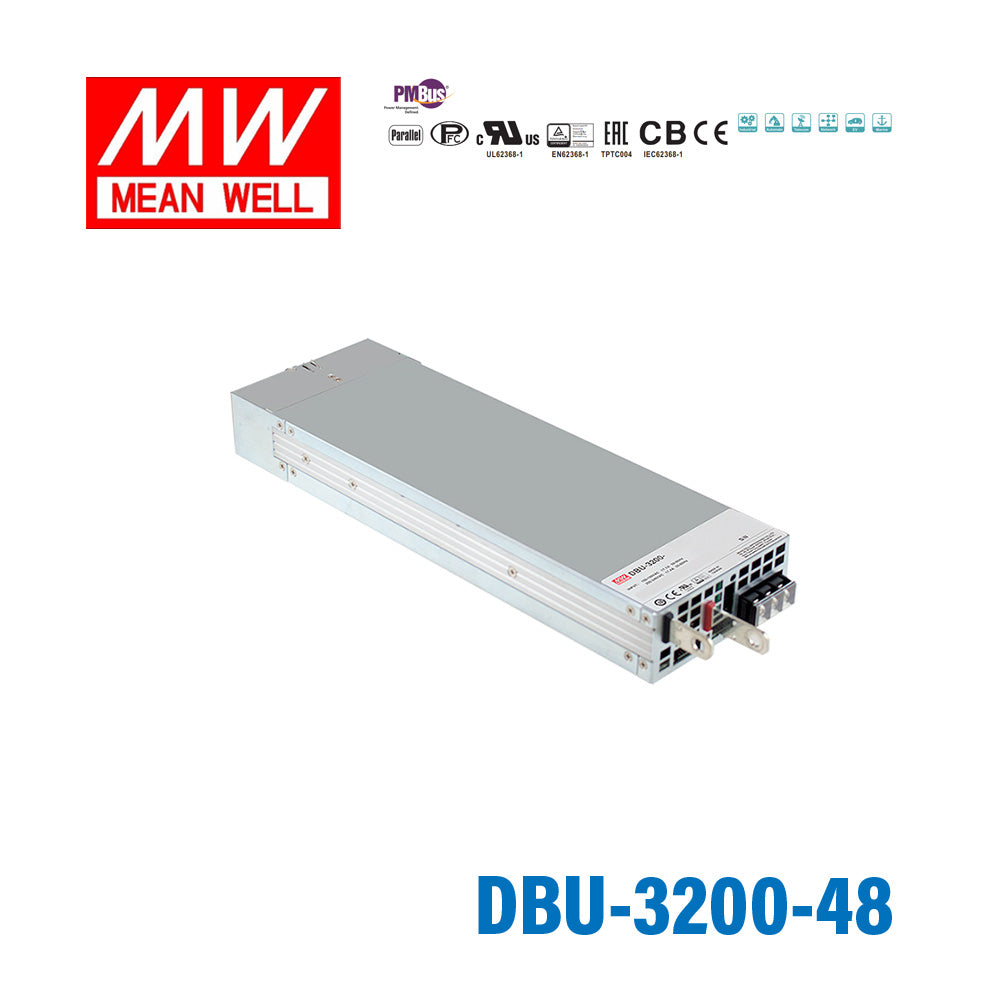

Mean Well DBU-3200-48 Programmable Charger 3200W 48V

suitable for lead-acid and Li-ion batteries, built-in default 3 stage charging curve, built-in I²C interface, PMBus protocol, active current sharing up to 6400W

|

Description

Features

Charger for lead-acid batteries(Gel, flooded and AGM) and Li-ion batteries(lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I²C interface, PMBus protocol(Optional CANBus protocol)
Universal AC input/Full range
Built-in active PFC function
Forced air cooling by built-in thermal controlled DC fans
Output voltage and current programmable
Built-in OR-ing FET
Active current sharing up to 6400W(1+1)
Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature
5 years warranty



General Specification

AC input voltage range 90~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 55A at 230VAC
DC adjustment range up to 124% rated output voltage
Leakage current from battery <2mA / 230VAC
Over temperature protection Shut down o/p voltage, auto recovery
Over voltage protection 115%~135% rated output voltage
Leakage current <1.5mA/230VAC
Withstand voltage I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -30~+70ºC (refer to output derating curve)
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-4-2,3,4; -6-2,4,6,8,11
Case No 256
Dimension (LxWxH) (mm) 325.8*107*41mm
Packing 4pcs/12Kg

Specifications

  • Brand
    Mean Well
  • Power Rating
    3200 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    55 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    32.58 cm
  • Width
    10.7 cm
  • Height
    4.1 cm
  • Weight
    2.76 kg
