Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

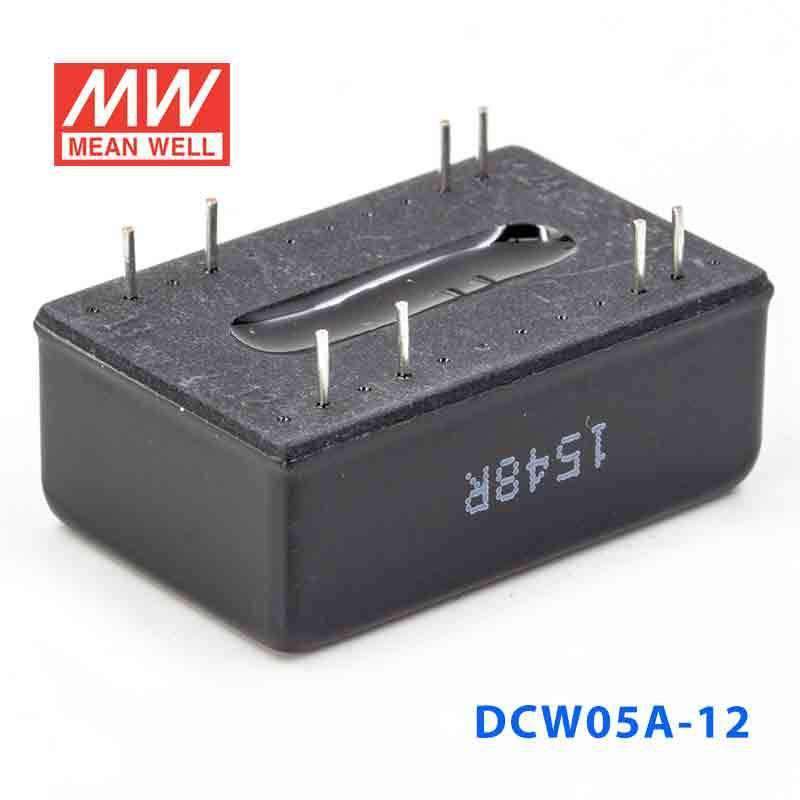

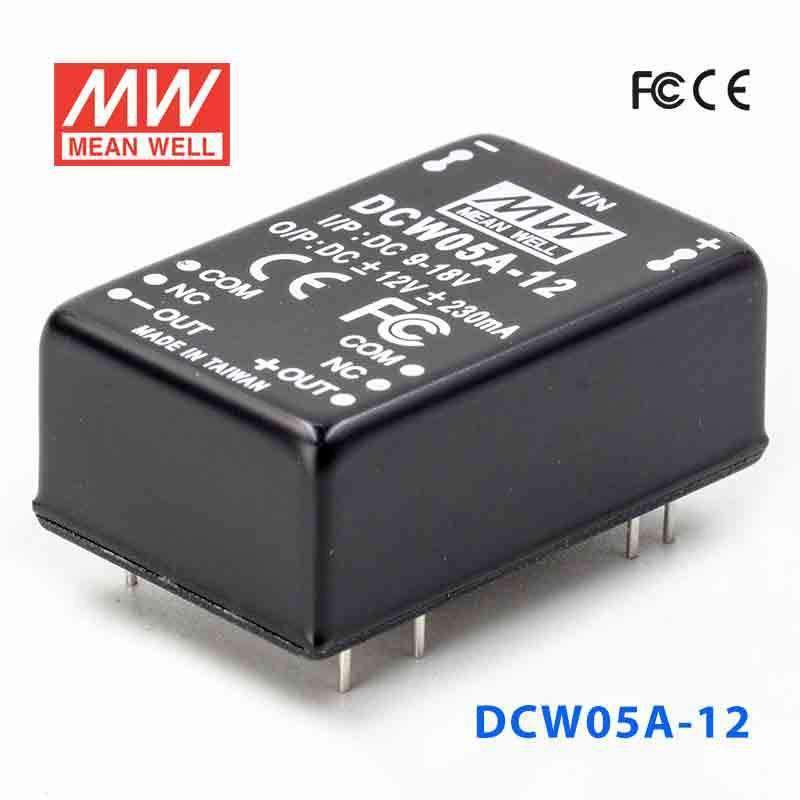

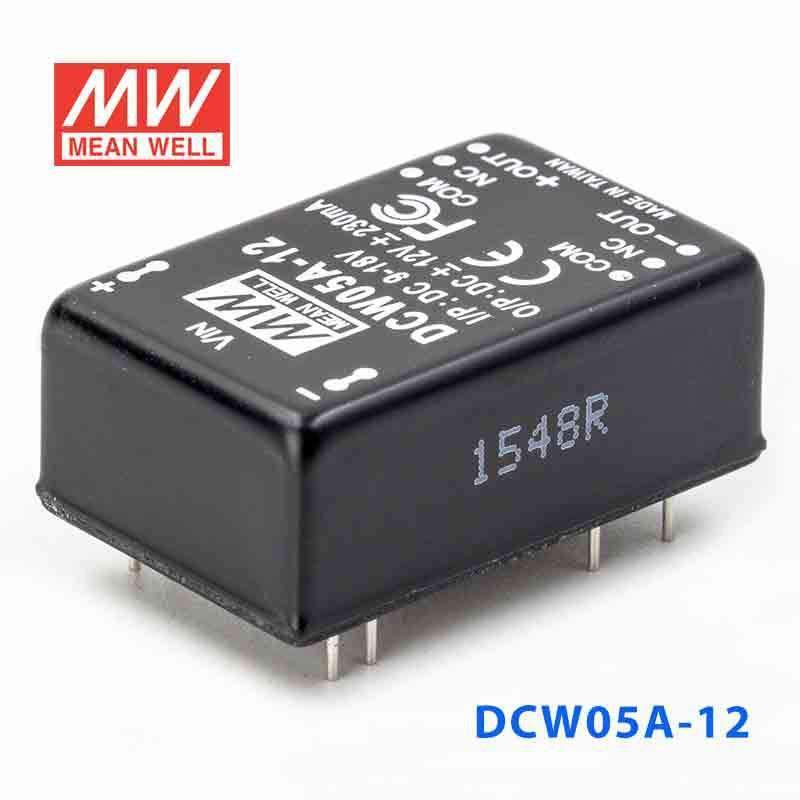

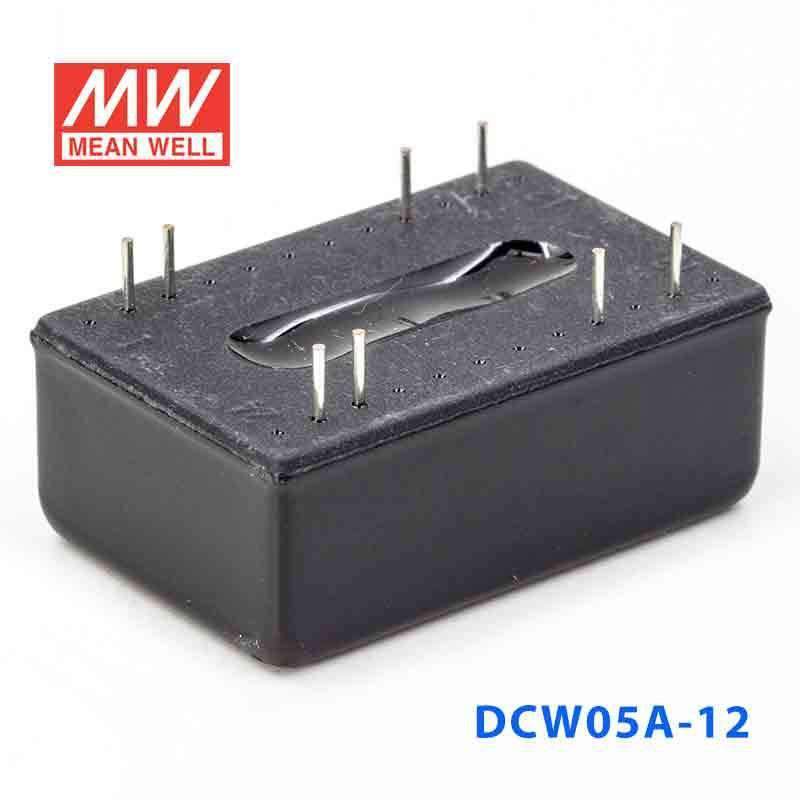

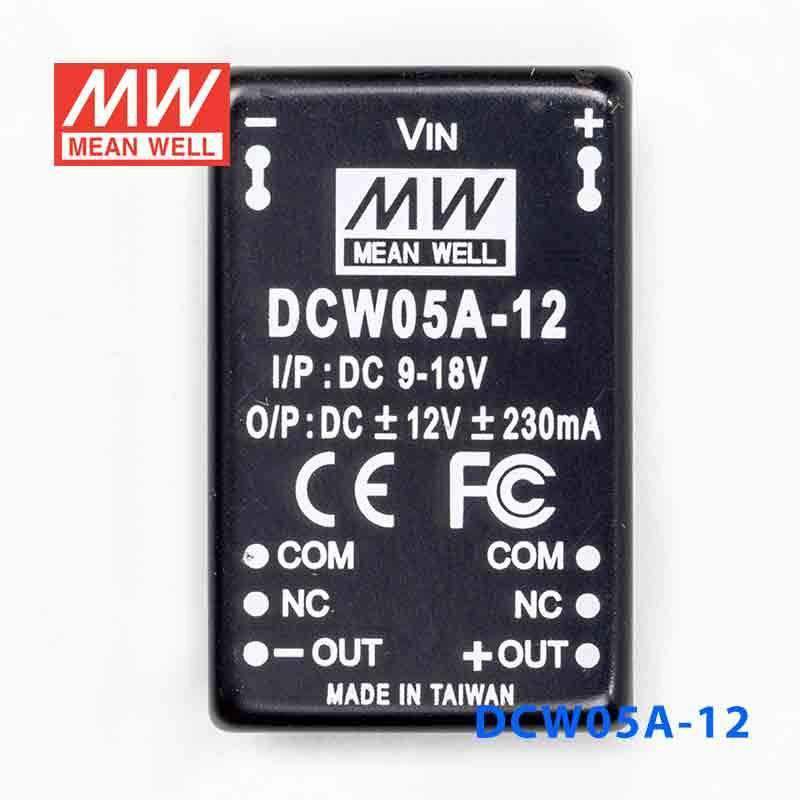

Mean Well DCW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out
Log in to see priceFeatures
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1000VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Five-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 150% ~ 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Isolation capacitance | 80pF (max.) |
| Working temperature | -40 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -40°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 1.25" x 0.8" x 0.48" |
| Case material | Five-sided shield metal case |
-
BrandMean Well
-
SeriesDCW Series
-
Power Rating5 Watt
-
Output Voltage12 Volt
-
Rated Current0.23 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DCW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well DCW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.19A | — | View |
| Mean Well DCW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out | 5W | 12V | 0.23A | — | View |
| Mean Well DCW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | — | View |
| Mean Well DCW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out | 5W | 15V | 0.19A | — | View |
| Mean Well DCW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out 230mA | 5W | 12V | 0.23A | Indoor | View |
| Mean Well DCW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out | 5W | 5V | 0.5A | — | View |
| Mean Well DCW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out | 5W | 15V | 0.19A | — | View |
| Mean Well DCW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | — | View |
