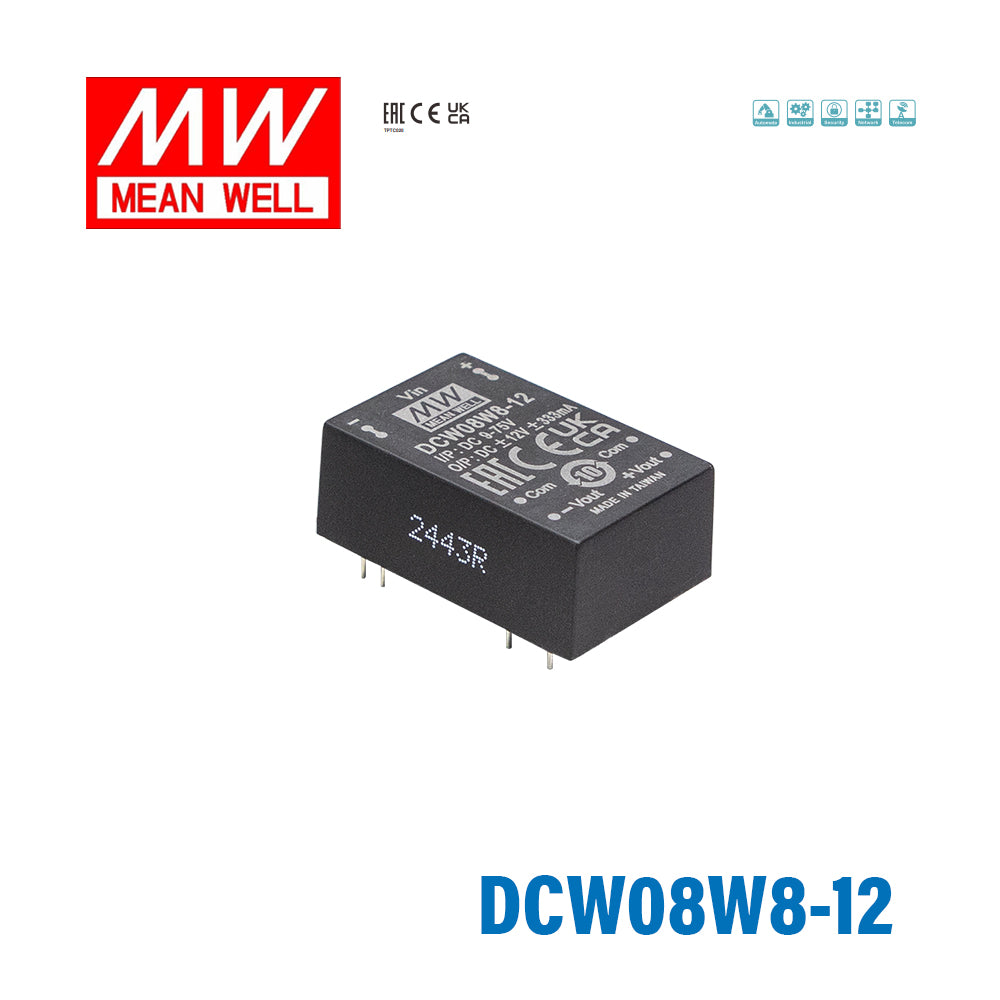

Mean Well DCW08W8-12 DC-DC Converter - 8W 9~75V DC in ±12V out 10mA
Please Login for Pricing
Description
Description
The DCW08W8 is a 8W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating8 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well DCW08W8-12 designed for?
The DCW08W8-12 is an 8W isolated DC-DC converter module for applications that need a very wide DC input range and dual output rails. It accepts 9 to 75V DC input and provides ±12V output, which makes it suitable for industrial and embedded equipment that operates across multiple nominal DC bus voltages.
What input voltage range does the DCW08W8-12 support?
This model supports an ultra-wide 9 to 75V DC input range. That covers common nominal systems including 12V, 24V, 36V, 48V, and 72V DC, which helps reduce the need for different converter variants across platforms.
Does the DCW08W8-12 provide isolated output?
Yes, the DCW08W8-12 provides 3KVdc input-to-output isolation. This isolation is useful in equipment where separation between input and output circuits is important for system design and noise management.
Can this converter operate in harsh temperature conditions?
Yes, this model is rated for operation from -40°C to +90°C, with reference to the derating curve. That wide temperature range makes it a practical option for demanding industrial environments where ambient conditions can vary significantly.
What protection features are included in the DCW08W8-12?
The DCW08W8-12 includes protection for short circuit, overload, over voltage, and under-voltage lockout. Short-circuit protection is continuous with automatic recovery, and overload protection uses hiccup mode with recovery after the fault is removed.
How does the DCW08W8-12 compare with narrower-input DC-DC converters?
Its main differentiator is the 8:1 ultra-wide input range, allowing one model to cover several common nominal DC input systems. Compared with narrower-range converters, it can simplify product selection in fleets or equipment designs that may see different DC bus voltages.
