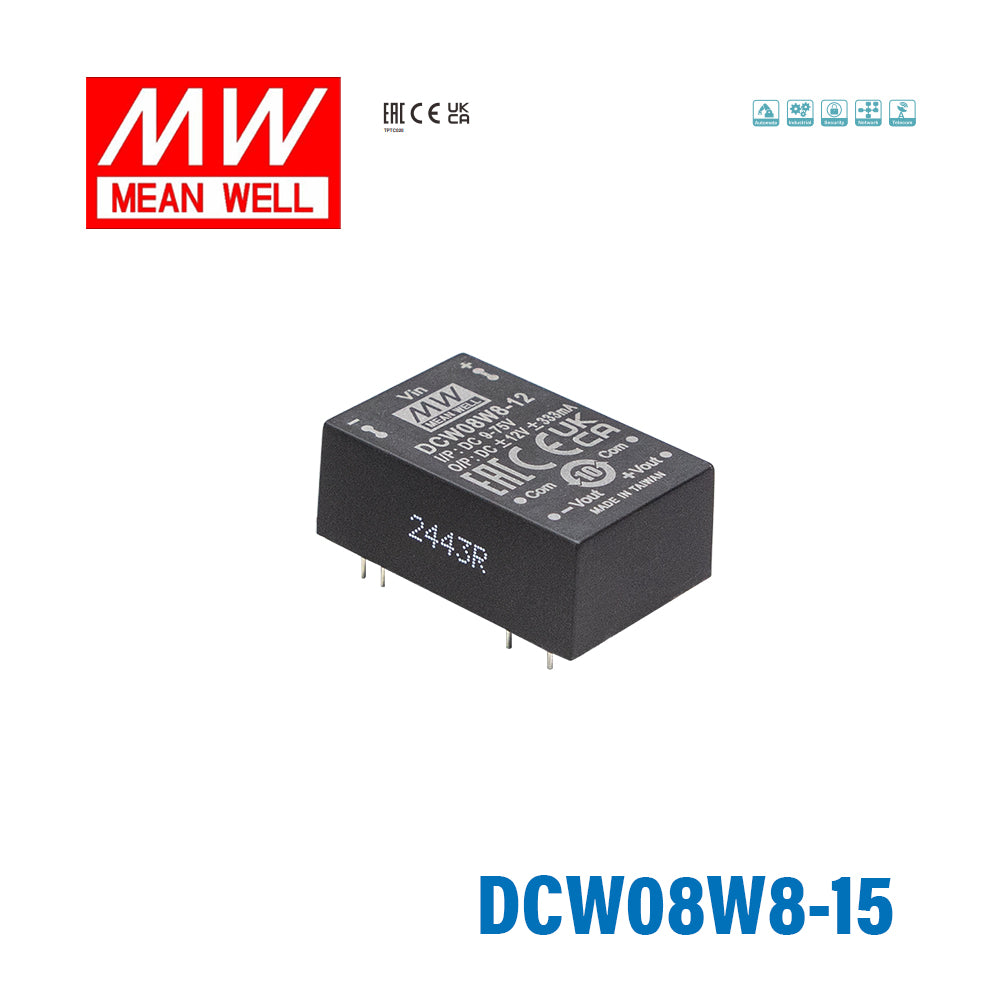

Mean Well DCW08W8-15 DC-DC Converter - 8W 9~75V DC in ±15V out 10mA
Please Login for Pricing
Description
Description
The DCW08W8 is a 8W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the input and output range of the Mean Well DCW08W8-15?
The DCW08W8-15 is an 8W DC-DC converter with an ultra-wide 9 to 75V DC input range. It provides a regulated dual output of ±15V DC. This wide input span supports use across several nominal DC bus voltages including 12V, 24V, 36V, 48V, and 72V systems.
What types of applications is the DCW08W8-15 suited for?
This model is designed for embedded and industrial power conversion where a compact isolated DC-DC module is needed. Its DIP24 package, 3KV DC input-to-output isolation, and wide 9 to 75V DC input range make it a practical option for equipment that operates across varying DC supply platforms. It is best suited to applications that require a dual ±15V output within an 8W power budget.
How does the DCW08W8-15 handle harsh operating environments?
The DCW08W8-15 is rated for operation from -40°C to +90°C, making it suitable for demanding temperature conditions. It also offers built-in protection features including short circuit, overload, over voltage, and under voltage lockout. These characteristics help support stable operation in industrial and mobile equipment environments.
Does the DCW08W8-15 require a minimum load to regulate properly?
No, this model does not require a minimum load. That can simplify product selection for systems where load conditions vary or may be very light during some operating states. It is intended to maintain its specified performance without adding extra load just to satisfy a minimum requirement.
What protection and isolation features are included in the DCW08W8-15?
The DCW08W8-15 includes continuous short circuit protection with automatic recovery, overload protection in hiccup mode, over voltage protection by TVS diode clamp, and under voltage lockout. It also provides 3KV DC input-to-output isolation. These built-in protections are important for equipment that needs a more robust DC power conversion stage.
What makes the DCW08W8-15 different from narrower input DC-DC converters?
A key differentiator is its 8:1 ultra-wide input range of 9 to 75V DC, which covers multiple nominal system voltages in a single model. That can reduce the need to stock different converters for different DC input platforms. It also combines this flexibility with a compact DIP24 form factor and dual ±15V output.
