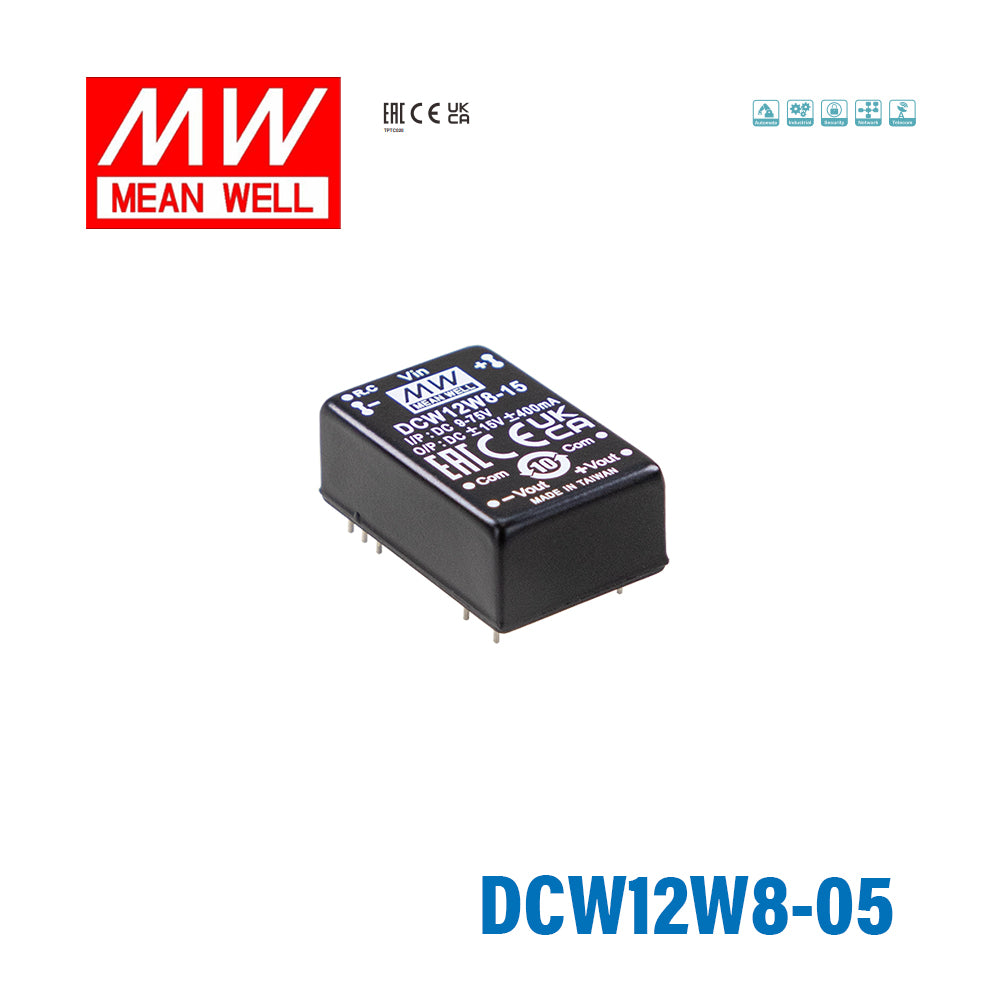

Mean Well DCW12W8-05 DC-DC Converter - 12W 9~75V DC in ±5V out 10mA
Please Login for Pricing
Description
Description
The DCW12W8 is a 12W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What input voltage range does the Mean Well DCW12W8-05 support?
This model accepts a very wide 9-75V DC input range, which covers nominal 12V, 24V, 36V, 48V, and 72V DC systems. That 8:1 input range makes it suitable for applications where the available DC bus can vary across different equipment or vehicle-powered environments.
What output does the DCW12W8-05 provide?
The DCW12W8-05 is a 12W DC-DC converter with a ±5V DC output. It is designed for applications that need isolated dual-polarity output from a wide DC input source.
Is the DCW12W8-05 suitable for harsh temperature environments?
Yes. This converter is rated for operation from -40°C to +85°C, making it appropriate for demanding industrial and enclosed equipment environments. Buyers should still review system-level thermal conditions and derating requirements for the final design.
What protection features are included in the Mean Well DCW12W8-05?
This model includes short circuit protection with automatic recovery, overload protection, over voltage protection, and under voltage lockout. It is also specified with 3KVdc input-to-output isolation for applications that require electrical isolation between input and output sides.
Where is the DCW12W8-05 typically used?
The DCW12W8-05 is aimed at embedded and board-level DC power conversion where a compact DIP24 package and wide input tolerance are important. Its ultra-wide input range, isolated design, and no-minimum-load operation make it a practical option for industrial electronics, control equipment, and mobile or battery-based DC systems.
Does the DCW12W8-05 require extra EMI components to meet radiated Class A performance?
Mean Well specifies that this model complies with BS EN/EN55032 radiated Class A without additional components. That can simplify product selection for equipment designers who want a compact isolated converter with baseline EMC performance already considered at the module level.
