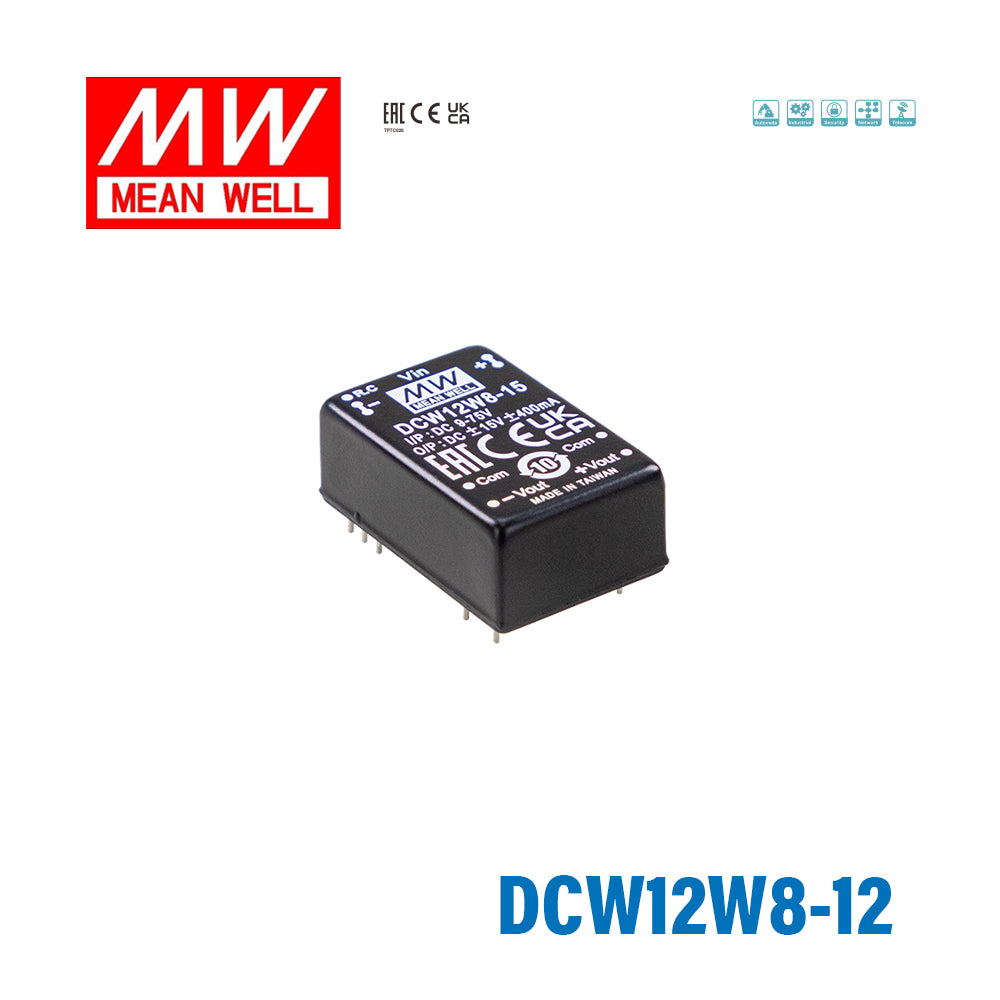

Mean Well DCW12W8-12 DC-DC Converter - 12W 9~75V DC in ±12V out 10mA
Please Login for Pricing
Description
Description
The DCW12W8 is a 12W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating12 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the input voltage range of the Mean Well DCW12W8-12?
The DCW12W8-12 accepts a very wide 9 to 75V DC input range. This 8:1 input range lets the module support multiple common DC system voltages within one model.
What output does the DCW12W8-12 provide?
This model is a 12W DC-DC converter with a ±12V DC output. It is designed for applications that need an isolated dual-output DC supply in a compact DIP24 package.
Is the DCW12W8-12 suitable for harsh temperature environments?
Yes. The specified operating temperature range is -40 to +85 degrees C, making it suitable for demanding industrial and embedded environments when used within its ratings.
What protections are included in the Mean Well DCW12W8-12?
The DCW12W8-12 includes short circuit, overload, over voltage, and under-voltage lockout protection. Short circuit protection is continuous with automatic recovery, and overload protection uses hiccup mode with automatic recovery after the fault is removed.
What kinds of applications is the DCW12W8-12 commonly used for?
This converter is typically considered for industrial electronics, control systems, telecom equipment, and embedded devices that need isolated DC power conversion from a wide DC input source. Its compact DIP24 form factor and 3KVdc input-to-output isolation make it relevant where board-level power conversion and isolation are important.
What makes the DCW12W8-12 different from narrower-input DC-DC converters?
A key difference is its 8:1 ultra-wide 9 to 75V DC input range, which gives it more flexibility than models built for a much narrower input window. It also combines that broad input range with up to 87% efficiency and 3KVdc isolation in a compact module format.
