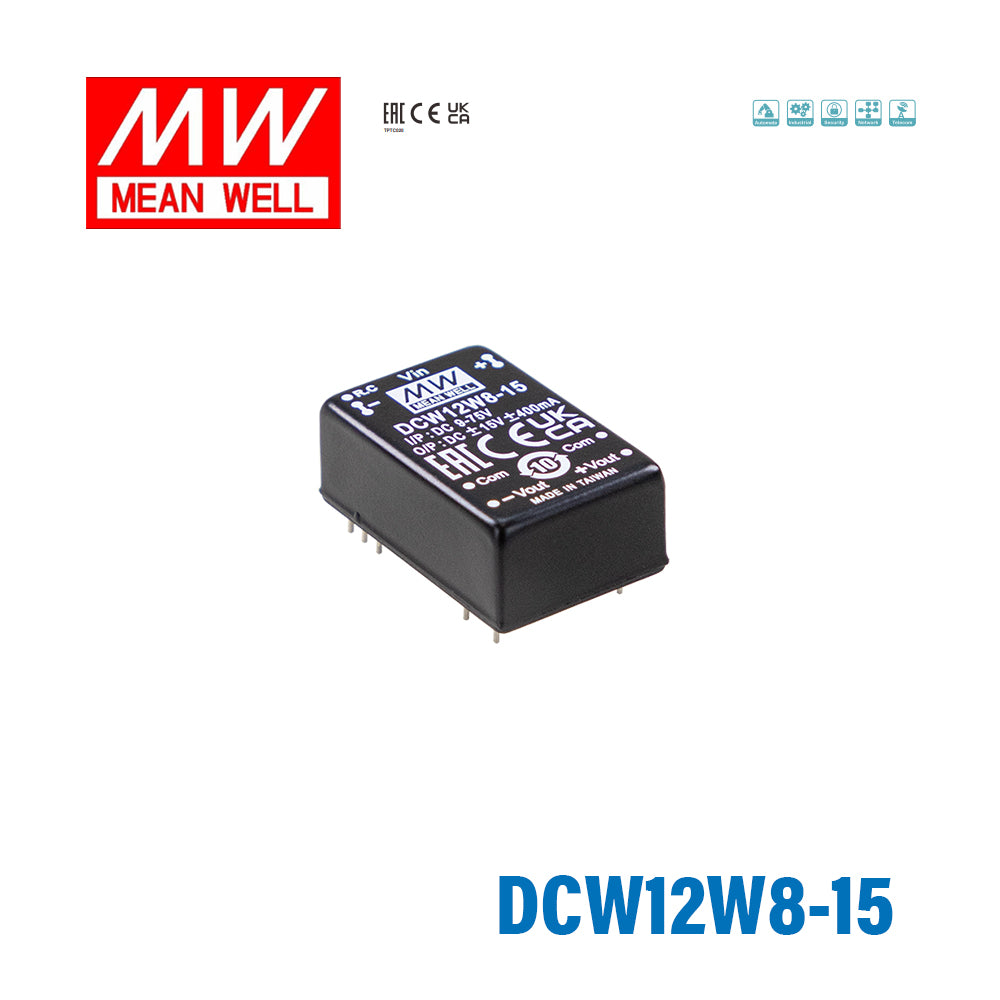

Mean Well DCW12W8-15 DC-DC Converter - 12W 9~75V DC in ±15V out 10mA
Please Login for Pricing
Description
Description
The DCW12W8 is a 12W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well DCW12W8-15 provide?
The DCW12W8-15 is a 12W DC-DC converter with dual ±15V DC output. This model is designed for applications that need a regulated bipolar output from a wide DC input source.
What input voltage range does the DCW12W8-15 support?
This model accepts an ultra-wide 9 to 75V DC input range, described as an 8:1 input range. That makes it suitable for systems where the available DC input can vary across common 12V, 24V, 36V, 48V, or 72V nominal supplies.
Does the DCW12W8-15 require a minimum load to regulate properly?
No minimum load is required for this converter. That can be useful in control, instrumentation, or intermittent-load applications where the output demand is low or changes significantly during operation.
Is the DCW12W8-15 suitable for demanding temperature environments?
The specified operating temperature range is -40°C to +85°C, subject to the product's derating curve. This wide range makes it a practical choice for industrial and enclosed equipment environments where ambient temperatures can be more demanding than standard room conditions.
What protection features are included in the DCW12W8-15?
The converter includes continuous short circuit protection with automatic recovery, overload protection, over voltage protection, and under voltage lockout. Mean Well also recommends a 4A slow-blow fuse on the input side for protection.
Does the DCW12W8-15 provide input-to-output isolation?
Yes, the DCW12W8-15 provides 3KV DC input-to-output isolation. This is an important specification for designs that need stronger electrical separation between the input source and the powered circuitry.
