Mean Well

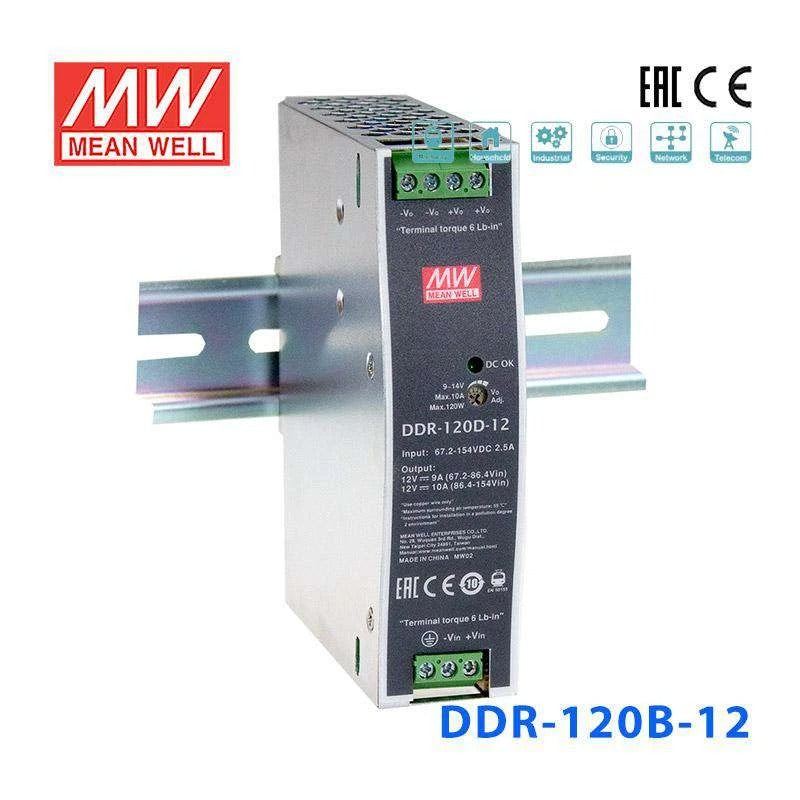

Mean Well DDR-120B-12 DC-DC Converter - 120W - 16.8~33.6V in 12V out

2:1 or 4:1 wide input range, fanless design, 4KVdc I/O isolation, ultra slim dimensions
SKU:
DDR-120B-12
Model
Please for Pricing
|

Description

The DDR-120B is a 120W DIN Rail type DC-DC converter for railway and industrial applications. With a 16.8~33.6Vdc input range (nominal 24Vdc), it converts from 24Vdc on-board bus supplies to isolated 12V, 24V, or 48V outputs. Compliant with EN50155:2021 S1 level and rated per IEC61373 for shock and vibration, it operates from -40~+70°C in demanding transport environments.

Key Features

  • ✓ Input voltage range: 16.8~33.6Vdc (nominal 24Vdc)
  • ✓ 32mm width — DIN rail TS-35 compatible
  • ✓ DC output voltage adjustable ±10%
  • ✓ 4KVdc reinforced I/O isolation
  • ✓ Wide operating temperature: -40°C ~ +70°C
  • ✓ Protections: Overload / Over voltage / Reverse polarity / Under voltage lockout
  • ✓ EN50155:2021 S1 level compliance (interruption of voltage supply)
  • ✓ Railway standards: EN45545-2 (fire protection), EN50155 / IEC60571, IEC61373 (shock & vibration)
  • ✓ Safety approvals: IEC 62368-1, UL 62368-1, AS/NZS 62368.1, EAC TP TC 004
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    DDR Series
  • Power Rating
    120 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    16.8V~33.6V
  • Standards Met
    CE,EMC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    12.52 cm
  • Width
    10.2 cm
  • Height
    3.2 cm
  • Weight
    0.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DDR-120B-12 to power 12V surveillance cameras from a 24V DC distribution bus?

Yes. The DDR-120B-12 accepts 16–33V DC input and outputs 12V at up to 10A (120W), making it well suited for stepping down a 24V building DC bus to power multiple 12V IP cameras, DVRs, or access control devices in a DIN rail panel.

Is this converter appropriate for converting a 24V solar system to 12V for radio equipment?

The DDR-120B-12 accepts 16–33V input, which covers a typical 24V solar battery bank including charge-state voltage variations. With 120W (10A at 12V) of output capacity and 4KVdc isolation, it can cleanly power 12V two-way radios, repeaters, or communication gear at remote solar sites.

Can the DDR-120B-12 supply 12V to industrial HMI displays and embedded PCs in a factory panel?

Yes. At 120W and 10A output, the DDR-120B-12 has enough capacity for industrial displays and embedded computing platforms that run on 12V. Its 24V-nominal input range (16–33V) matches common factory DC bus voltages, and the DIN rail mounting fits standard industrial enclosures.

Will the DDR-120B-12 work in a freezer warehouse control cabinet?

The DDR-120B-12 is rated for -40°C to +85°C, so it can operate in freezer environments well below 0°C without issues. The fanless design eliminates concerns about fan bearings seizing in extreme cold, and there are no vents that could accumulate frost.

How does the DDR-120B input range differ from the DDR-120A and DDR-120C?

The DDR-120A sub-series accepts 9–18V DC input, the DDR-120B accepts 16–33V, the DDR-120C accepts 33–67V, and the DDR-120D accepts 67–154V. The B-series is designed for 24V nominal DC bus systems. All DDR-120 models share the same 125.2 x 102.0 x 32.0 mm DIN rail form factor and are available in 12V, 24V, and 48V output variants.
