Mean Well

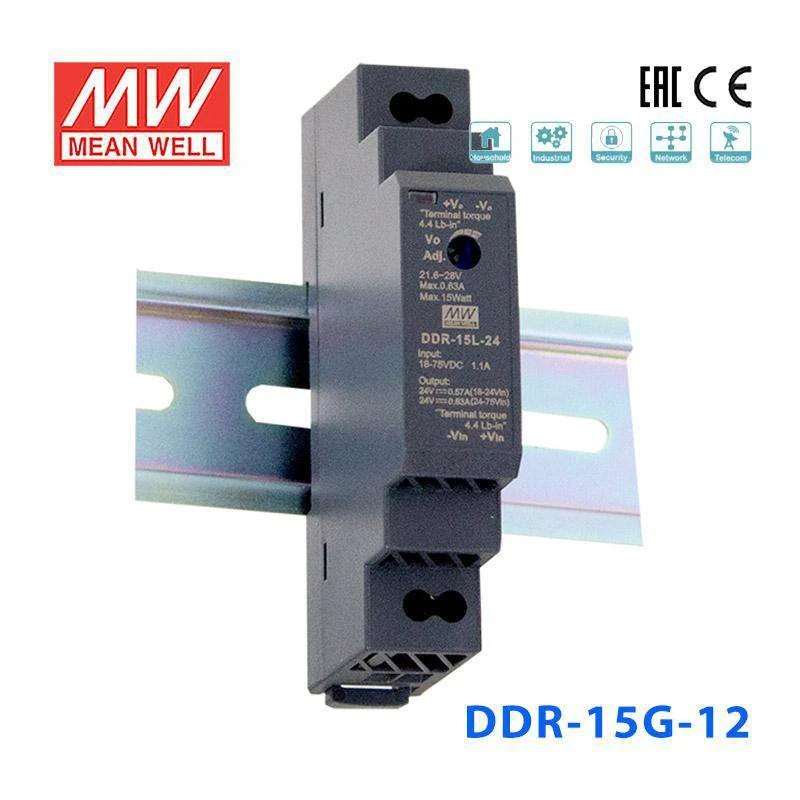

Mean Well DDR-15G-12 DC-DC Converter - 15W - 9~36V in 12V out

2:1 or 4:1 wide input range, fanless design, 4KVdc I/O isolation, ultra slim dimensions
SKU:
DDR-15G-12
Model
Please for Pricing
|

Description

The DDR-15G is a compact 15W DIN Rail type DC-DC converter engineered for industrial power distribution. Its ultra slim 17.5mm (1SU) profile fits standard TS-35 DIN rails, while a 4:1 wide input voltage range of 9~36Vdc accommodates diverse DC supply sources across industrial control, security, and communications applications. With no minimum load requirement, free air convection cooling, and reinforced 4KVdc I/O isolation, the DDR-15G delivers dependable, noise-resistant power conversion across a wide -40~+85°C operating range.

Key Features

  • ✓ Ultra slim 17.5mm (1SU) width — DIN rail TS-35/7.5 or 15 compatible
  • ✓ 4:1 wide input voltage range: 9~36Vdc
  • ✓ DC output voltage adjustable ±10%
  • ✓ 4KVdc reinforced I/O isolation
  • ✓ Cooling by free air convection — no minimum load required
  • ✓ Wide operating temperature: -40°C ~ +85°C
  • ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
  • ✓ Safety approvals: UL 62368-1, IEC 62368-1, AS/NZS 62368.1
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    DDR Series
  • Power Rating
    15 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1.25 Ampere
  • Input Voltage
    9V~36V
  • Standards Met
    CE,EAC,EMC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    1.75 cm
  • Weight
    0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DDR-15G-12 to power a 12V sensor or relay module from a 24V DC control bus?

Yes. The DDR-15G-12 accepts 9-36V DC input and outputs 12V at 1.25A (15W). A 24V control bus is in the middle of the input range, and 15W is sufficient for a few small sensors, a relay board, or a status display panel. The ultra-slim 17.5mm width conserves valuable DIN rail space.

Is the DDR-15G-12 suitable for powering a small embedded computer or IoT gateway from a 12V or 24V battery?

Yes, as long as the battery voltage stays within 9-36V. Many compact single-board computers and IoT gateways draw under 15W at 12V. The 4KVdc I/O isolation protects the embedded device from noise or transients on the battery bus, which is important in mobile or vehicle-mounted installations.

Can I use the DDR-15G-12 inside a compact DIN rail enclosure where space is limited?

Yes. At just 90.0 x 54.5 x 17.5 mm and 0.068 kg, it is one of the most compact DIN rail DC-DC converters available. The fanless design means no additional clearance is needed for airflow, making it ideal for small junction boxes and crowded control panels.

Does the DDR-15G-12 work in harsh-temperature industrial environments?

Yes. It is rated for -40°C to +85°C, which covers freezing warehouses, outdoor enclosures, and hot factory floors. Since it is fanless and has no moving parts, it is well suited for dusty or vibration-prone locations. Mount it inside a sealed enclosure for protection against moisture and debris.

What is the difference between the DDR-15G and DDR-15L series at 12V?

Both output 12V at 1.25A (15W) in an ultra-slim DIN rail package. The DDR-15G-12 accepts a 9-36V DC input (4:1 range), while the DDR-15L-12 accepts a different input voltage window. The G and L suffixes denote input voltage range variants, so choose the one that matches your DC bus voltage.
