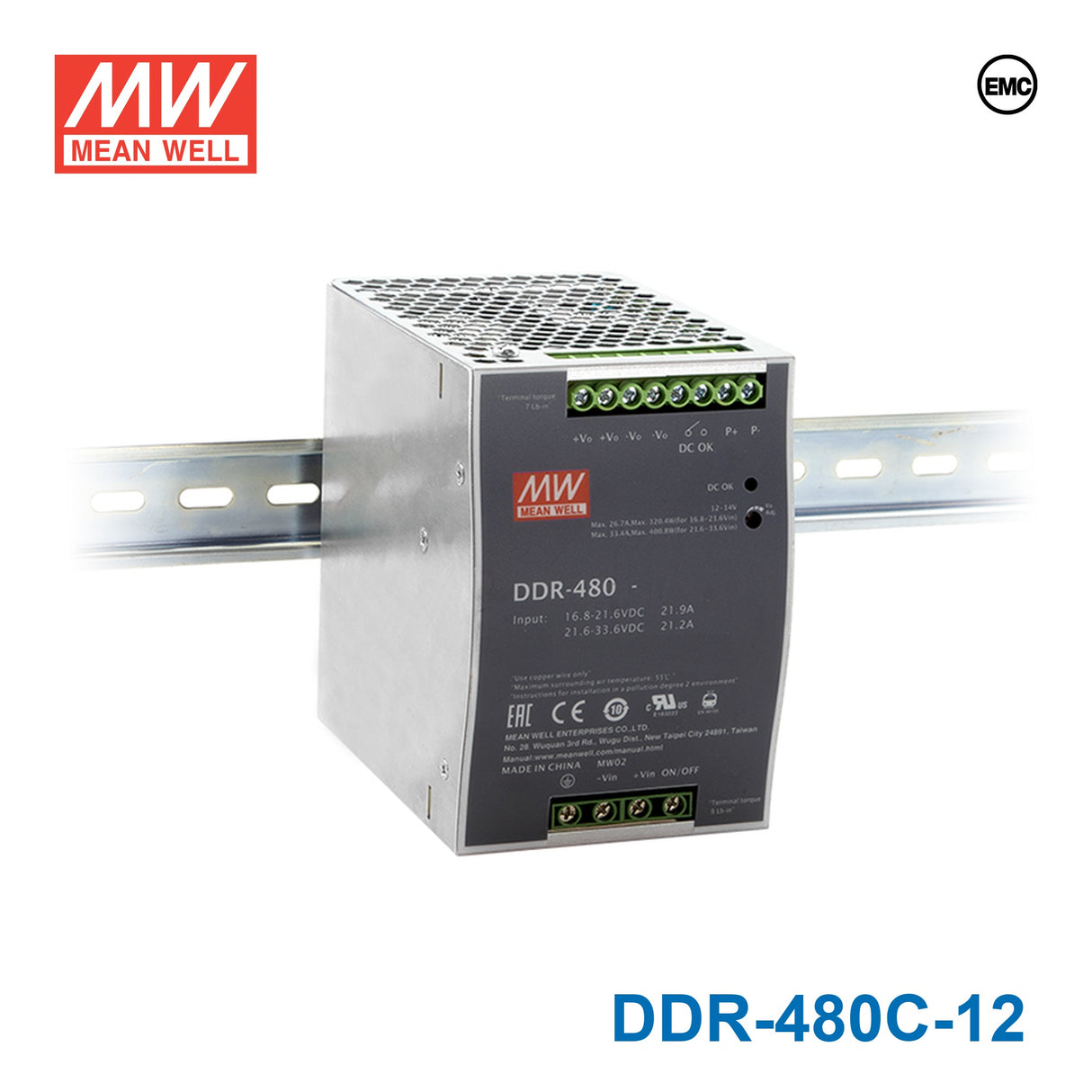

Mean Well DDR-480C-12 DC-DC Converter - 400.8W - 33.6~67.2V in 12V out

2:1 or 4:1 wide input range, fanless design, 4KVdc I/O isolation, ultra slim dimensions
SKU:
DDR-480C-12

Model
|

Description

Features

Width only 32mm
Compliance with EN50155 and EN45545-2 railway standard
DC output adjustable ( 10%)
2:1 wide input range
150% peak load capability
Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
Can be installed on DIN rail TS-35/7.5 or 15
-40~+70°C wide working temperature
Cooling by free air convection
3 years warranty

General Specification

Over current protection Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery
Over-voltage protection

12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V;

Protection mode: Shut down o/p voltage, re-power on to recover

REVERSE POLARITY By internal MOSFET, no damage recovers automatically after the fault condition removed
Withstand voltage I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
Working temperature -40~+70°C (Refer to "Derating Curve"")
Safety standards IEC 62368-1 (LVD), EAC TP TC 004 approved, Design refer to UL508
EMC standards With external components Compliance to EN55032 Class B;EN61000-3-,3,EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm) 32 x 125.2 x 102 mm

Specifications

  • Brand
    Mean Well
  • Series
    DDR Series
  • Power Rating
    400.8 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    33.4 Ampere
  • Input Voltage
    33.6V~67.2V
  • Standards Met
    EMC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    3 Year
  • Length
    12.85 cm
  • Width
    12.52 cm
  • Height
    8.55 cm
  • Weight
    1.38 kg
