Mean Well

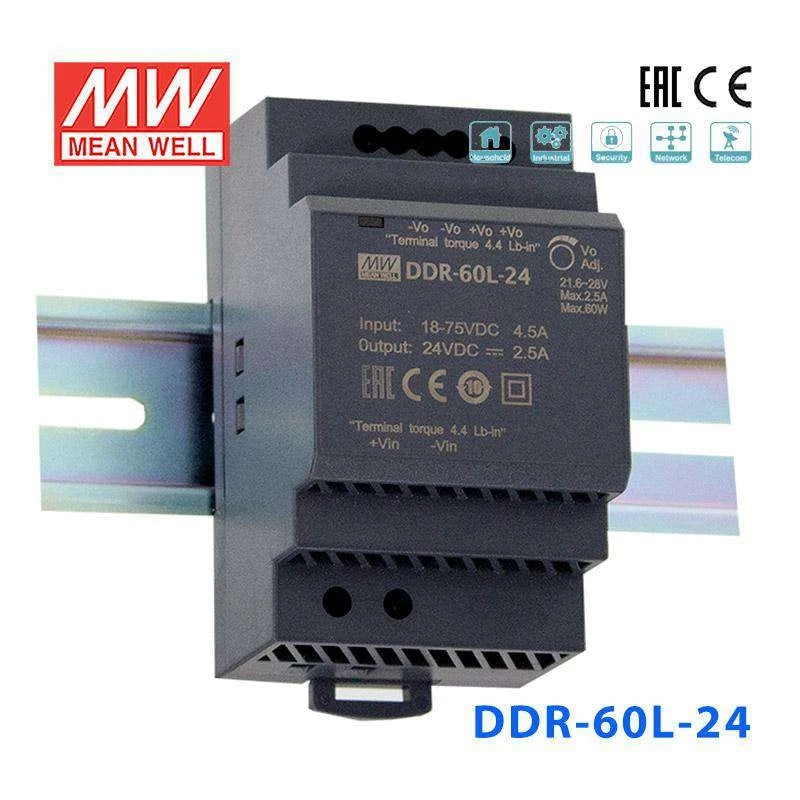

Mean Well DDR-60L-24 DC-DC Converter - 60W - 18~75V in 24V out

2:1 or 4:1 wide input range, fanless design, 4KVdc I/O isolation, ultra slim dimensions
SKU:
DDR-60L-24
Model
Please for Pricing
|

Description

Features

Width only 52.5mm (3SU)
DC output adjustable ( 10%)
4:1 ultra wide input range
No minimum load required
Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
Can be installed on DIN rail TS-35/7.5 or 15
-40~+85°C wide working temperature
Cooling by free air convection
3 years warranty

General Specification

Over current protection 110%~150% rated output power;Protection type:Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection

5V:5.75~7V ; 12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V;

Protection mode:Shut down o/p voltage, re-power on to recover
REVERSE POLARITY By internal MOSFET, no damage, recovers automatically after fault condition removed
Withstand voltage I/P-O/P:4KVDC
Working temperature -40~+85°C (Refer to ""Derating Curve"")
Safety standards IEC 62368-1 (LVD) approved, Design refer to UL508
EMC standards With external components Compliance to EN55032 Class A for 1m I/O cable,Class B for 30cm I/O cable ;EN61000-3-,3，EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm) 52.5 x 90 x 54.5 mm

Specifications
  • Brand
    Mean Well
  • Series
    DDR Series
  • Power Rating
    60 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    18V~75V
  • Standards Met
    CE,EAC,EMC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    5.25 cm
  • Weight
    0.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DDR-60L-24 to step down a 48V DC bus to 24V for PLC and automation equipment?

Yes. The DDR-60L-24 accepts 18-75V DC input, covering 48V nominal buses. It outputs 24V at 2.5A (60W), which is a standard supply voltage for compact PLCs, relays, solenoid valves, and 24V field devices commonly used in factory automation panels.

Is the DDR-60L-24 a good fit for powering 24V building automation controllers from a 48V DC backbone?

Yes. Building management systems often distribute 48V DC along cable trays and then convert locally to 24V for controllers, actuators, and sensors. The DDR-60L-24's 60W capacity and DIN rail mount make it straightforward to install at each local panel. The 4KVdc isolation protects downstream equipment from bus noise.

Can the DDR-60L-24 supply 24V power to a small Modbus RTU network of field transmitters?

Yes. Most 4-20mA loop-powered or Modbus RTU transmitters draw well under 1A each at 24V. With 2.5A available, the DDR-60L-24 can power multiple transmitters on a shared 24V rail. The 4KVdc isolation helps keep measurement signals clean from upstream DC bus interference.

Is the DDR-60L-24 suitable for converting 48V telecom power to 24V for edge networking gear?

Yes. Telecom sites commonly provide -48V DC (referenced as 48V magnitude). The DDR-60L-24 accepts up to 75V DC input, comfortably accommodating telecom bus voltages including float-charge levels. It delivers 24V at 2.5A for switches, small routers, or PoE injectors rated at 24V input.

Can the DDR-60L-24 operate in a non-ventilated weatherproof enclosure exposed to temperature extremes?

Yes. With an operating range of -40°C to +85°C and a completely fanless design, the DDR-60L-24 requires no airflow. Its compact 90.0 x 54.5 x 52.5 mm profile fits easily in sealed NEMA or IP-rated enclosures. Verify that worst-case enclosure temperature stays within the rated range.

What DDR-60L models are available if I need a different output voltage?

The DDR-60L series offers four output options, all with 18-75V DC input: DDR-60L-5 (60W, 5V, 12A), DDR-60L-12 (60W, 12V, 5A), DDR-60L-15 (60W, 15V, 4A), and DDR-60L-24 (60W, 24V, 2.5A). All share the same ultra-slim DIN rail form factor and fanless, isolated design.
