Mean Well

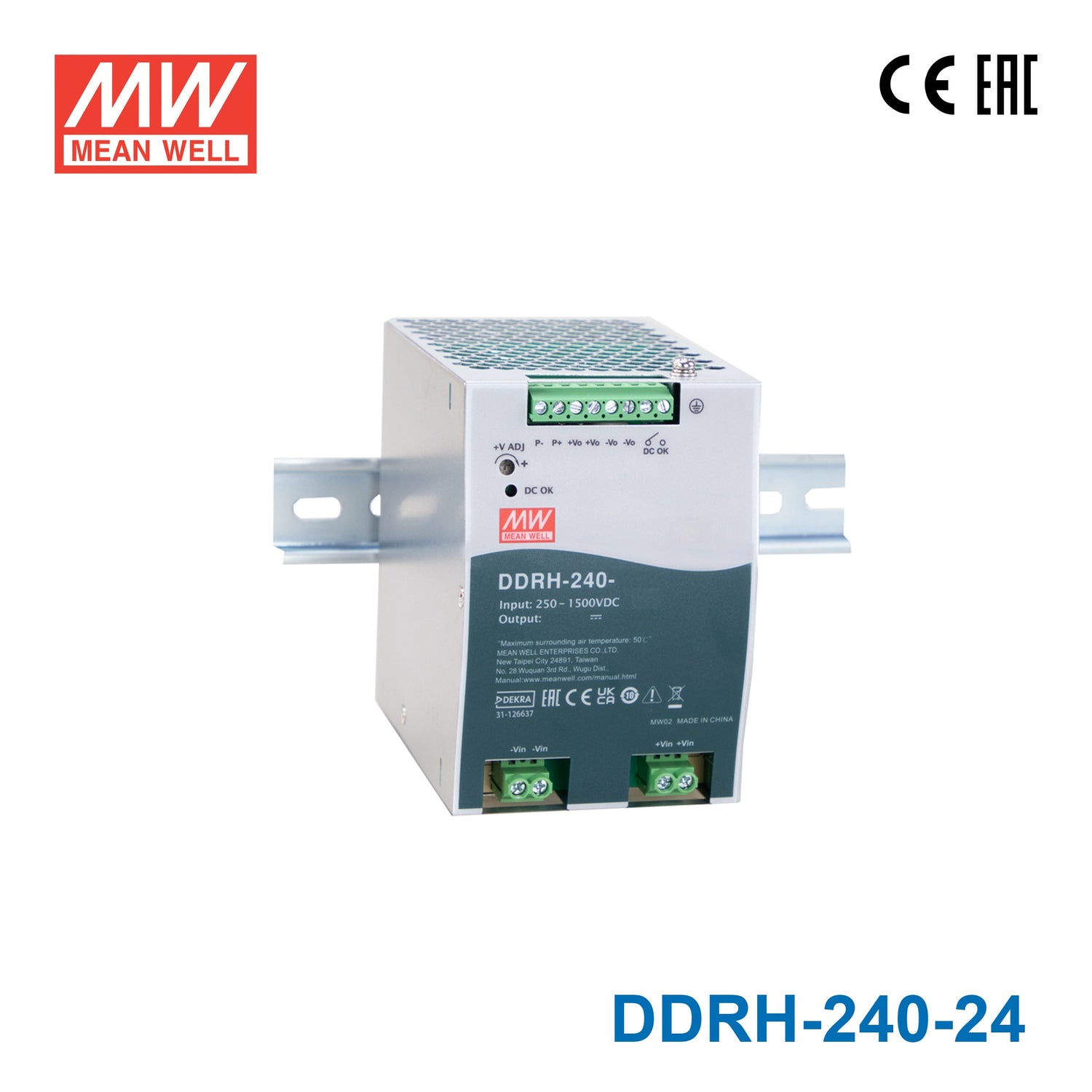

Mean Well DDRH-240-24 Ultra Wide Input DC-DC Converter, 240W 24V

250~1500VDC 6:1 ultra-wide input range, withstand 1700Vdc surge input for 10 seconds, 85.5mm slim width, DC output voltage adjustable 24~29V
Please for Pricing
|

Description

Features:

  • 250~1500Vdc 6:1 ultra-wide input range
  • Withstand 1700Vdc surge input for 10 seconds
  • 85.5mm slim width
  • 4KVac I/O high isolation(Reinforced isolation)
  • Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
  • Fanless design, Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • -40 ~ +80℃ ultra-wide operating temperature (>+50℃ derating)
  • Current sharing up to 960W(3+1)
  • Over Voltage Category II
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • DC output voltage adjustable(1215V, 2429V, 3036V, 4858V)
  • 3 years warranty

General Specification

AC input voltage range

250 ~ 1500Vdc

AC inrush current (max.)

COLD START 500A /1500Vdc | 300A/800Vdc | 120A/300Vdc

Over-voltage protection

16.5 21V | 32 42V | 40 48V | 62 70V

Protection type : Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:2KVAC O/P-DC OK:0.5KVAC

Working temperature

-40 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 BS EN/EN62109-1 EAC TP TC 004 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

85.5x125.2x129.2mm

Specifications
  • Brand
    Mean Well
  • Series
    DDRH Series
  • Power Rating
    240 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    250V~1500V
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    3 Year
  • Length
    8.55 cm
  • Width
    12.52 cm
  • Height
    12.92 cm
  • Weight
    0.96 kg
