Mean Well DETN01M-05 DC-DC Converter - 1W - 10.8~13.2V in ±5V out 100mA

SKU DETN01M-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DETN01M-05 is the ±5V output model of this series: rated power 1W, typical efficiency 82%.

DETN01 series is 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/ EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 83%
Protection: Short circuit
3KVDC I/O isolation
Low cost
Optional reel packing
3 years warranty

Specifications

DETN01M-05Specifications from the official datasheet (2026-09-15 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (10.8 ~ 13.2V)
INPUT CURRENT NO LOAD: 13mA
INPUT CURRENT FULL LOAD: 107mA
OUTPUT VOLTAGE: ±5V
OUTPUT CURRENT: ±10 ~ 100mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 10.8 ~ 13.2Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 16Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 750mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 150mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 880Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

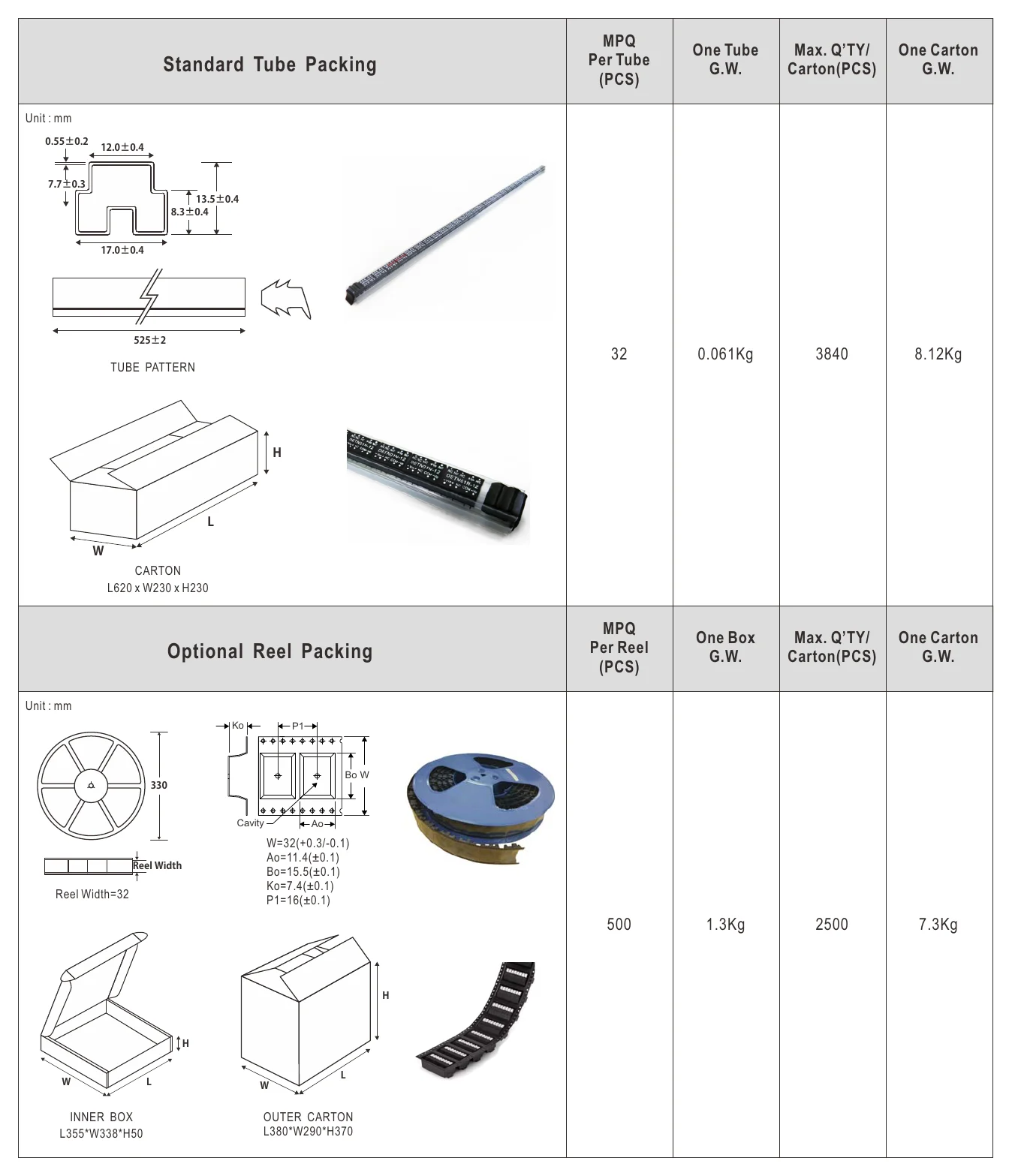

PACKING: Standard : 1.2g ; 32 pcs/per tube, 3840 pcs/ 120 tube/per carton Optional : 1.2g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 470μF/100V.

Technical drawings

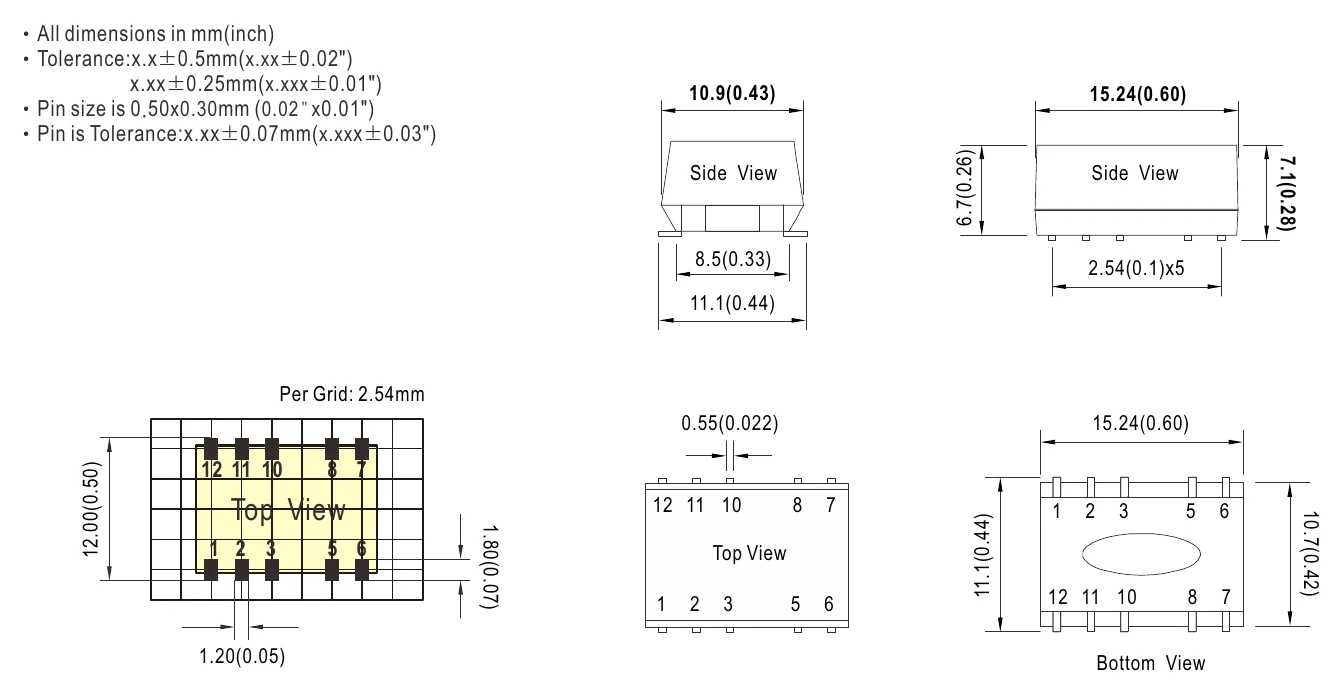

DETN01M-05 Mechanical Specification — Mechanical Specification

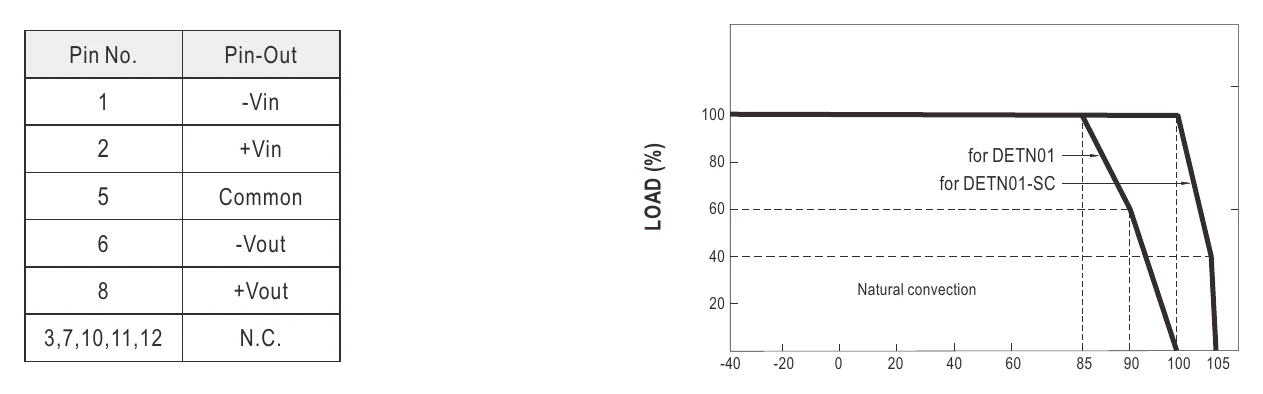

DETN01M-05 Pin Assignment — Pin Assignment

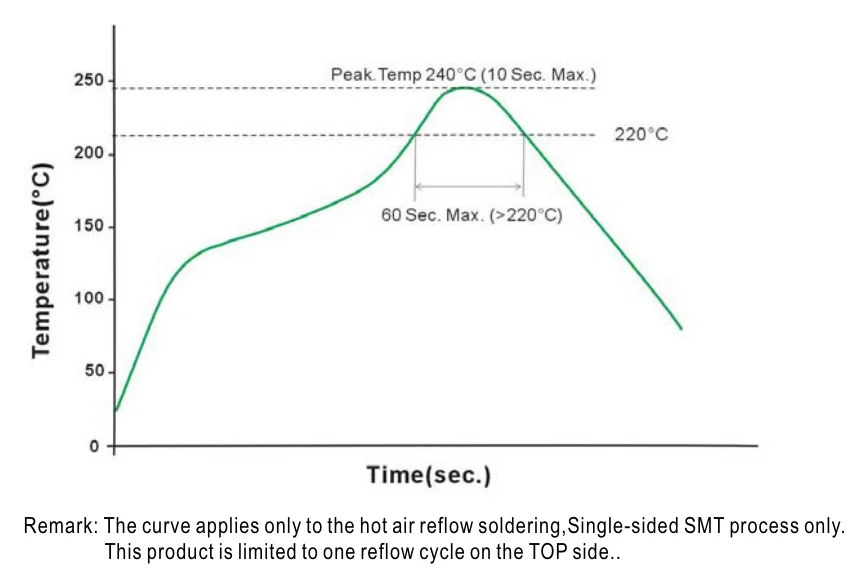

DETN01M-05 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates5

Mean Well SBTN01-SFTN01-DETN01-EMC Certificate PDF Download

Mean Well SBTN01-SFTN01-DETN01-CE-dec Certificate PDF Download

Mean Well DETN01-SBTN01-SFTN01-CB(UL) Certificate PDF Download

Mean Well SBTN-SFTN-DETN01-UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well DETN01M-05 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DETN01M-05 for 5V logic in industrial control electronics?

Yes, it is an unregulated DC-DC converter with a ±5V output and a 1W power rating. That makes it a fit for low-power 5V control, monitoring, or signal-level electronics where the load stays within 1W.

Is the DETN01M-05 suitable for embedded 5V sensor or controller circuits?

It can be used for embedded circuits that need ±5V rails and only require 1W of output power. This is better aligned with low-power sensors, small controller boards, and auxiliary logic than with larger 5V loads.

Can this converter be used inside automation equipment for isolated 5V housekeeping power?

It is intended for very small auxiliary power duties where an isolated ±5V output is needed and the total demand fits within 1W. In automation equipment, that points to light housekeeping or interface-level electronics rather than higher-draw devices.

Is the DETN01M-05 appropriate for outdoor or harsh-environment use?

The operating temperature range is -40°C to +90°C, so the temperature rating is broad. However, no IP rating is listed, so it should be treated as a board-level part for protected enclosures rather than direct outdoor exposure.

How does the DETN01M-05 compare with the other DETN01M models?

All three models in the series are 1W converters. The DETN01M-05 has ±5V output at up to ±100mA, while the DETN01M-12 is ±12V at up to ±42mA and the DETN01M-15 is ±15V at up to ±34mA.
