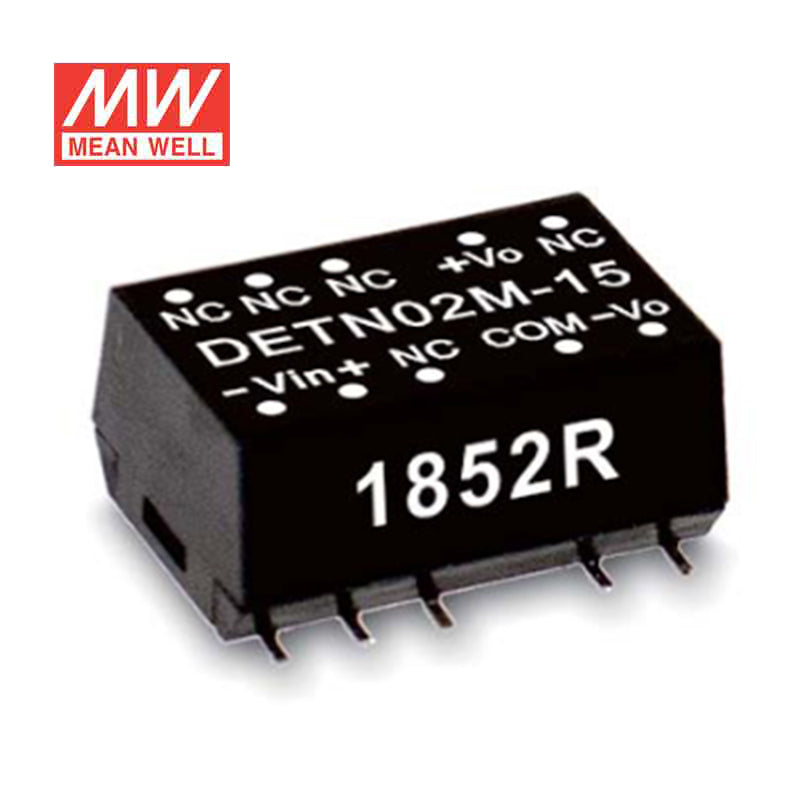

Mean Well DETN02M-12 DC-DC Converter - 2W - 10.8~13.2V in ±12V out 84mA

SKU DETN02M-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DETN02M-12 is the ±12V output model of this series: rated power 2W, typical efficiency 82%.

DETN02 series is 2W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +100℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 83%
Protection: Short circuit
3KVDC I/O isolation
Low cost
Optional reel packing
3 years warranty

Specifications

DETN02M-12Specifications from the official datasheet (2026-09-15 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (10.8 ~ 13.2V)
INPUT CURRENT NO LOAD: 30mA
INPUT CURRENT FULL LOAD: 203mA
OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±8 ~ 84mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 10.8 ~ 13.2Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 16Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +100℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5,6)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 888Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)

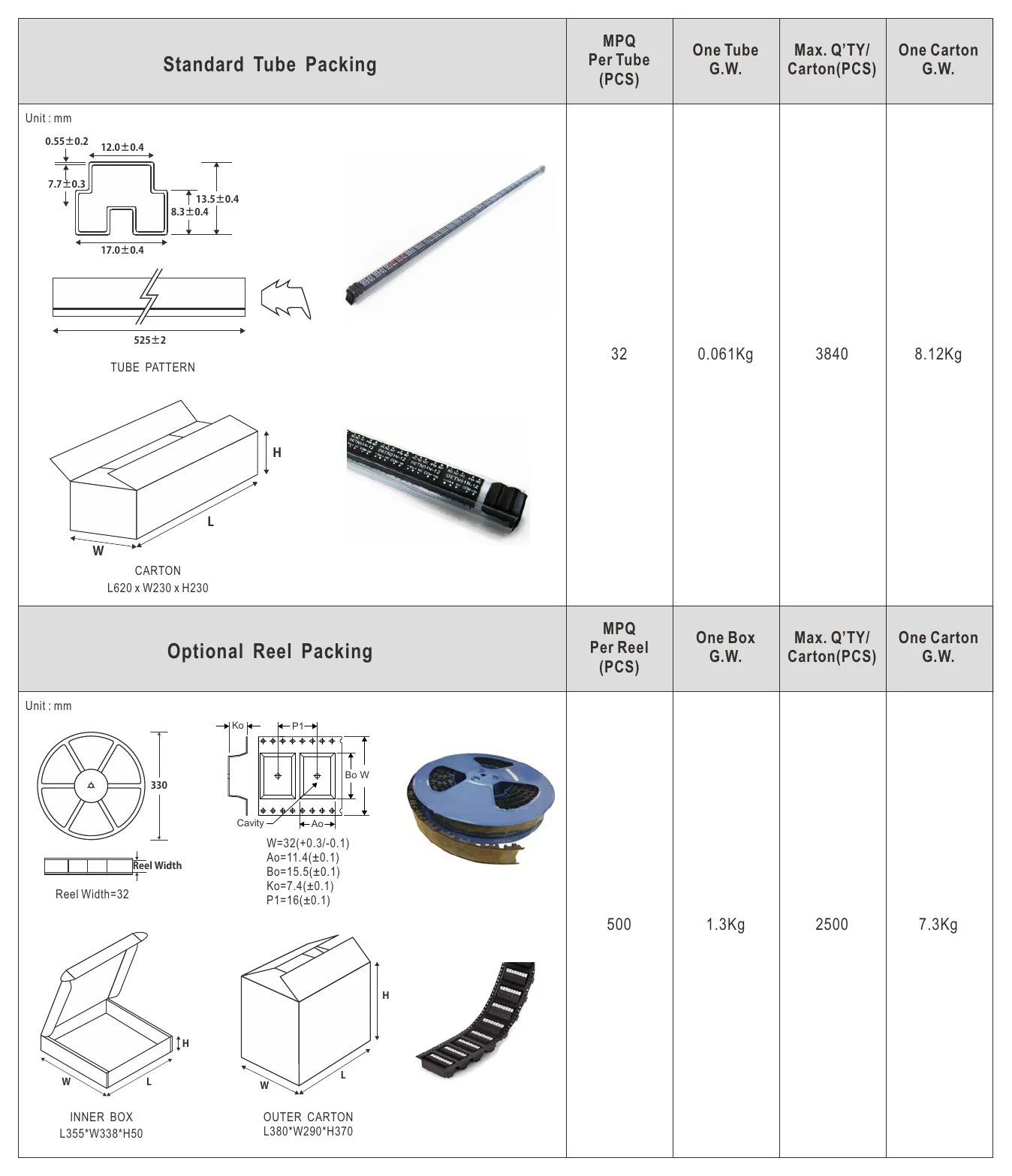

PACKING: Standard : 1.2g ; 32pcs/per tube, 3840pcs/ 120 tube/per carton Optional : 1.2g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 470μF/100V.

Technical drawings

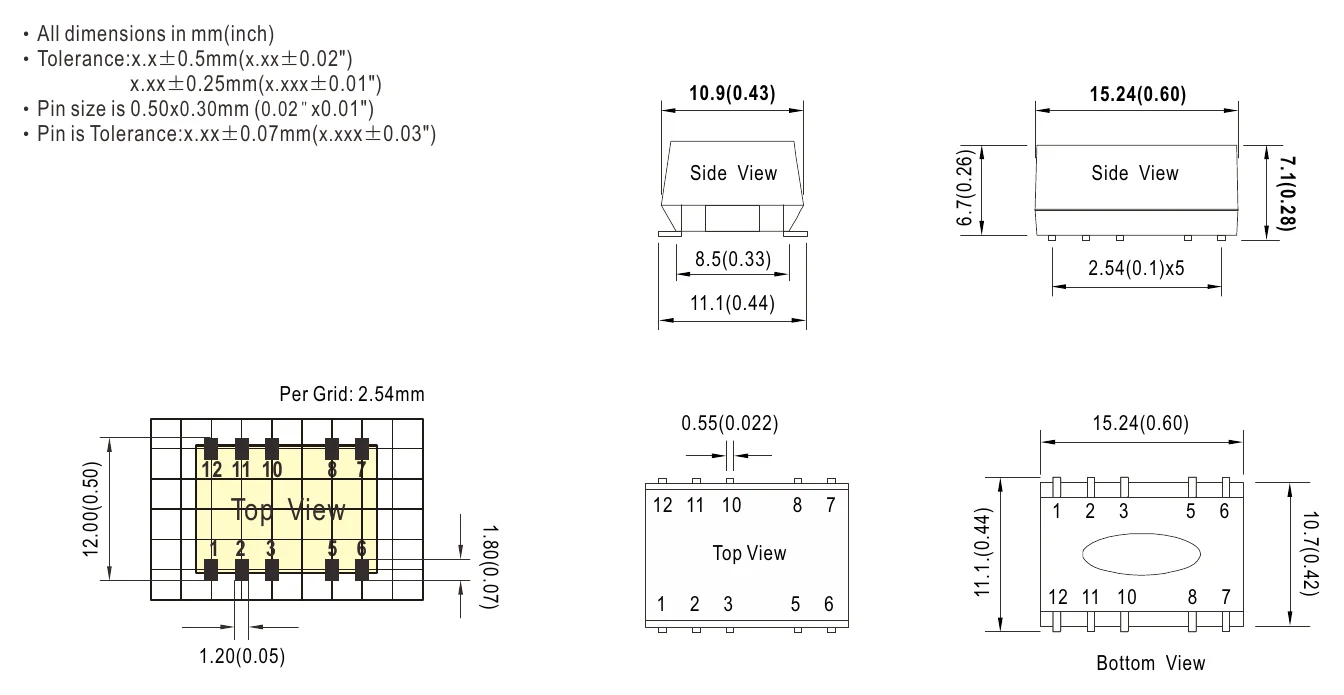

DETN02M-12 Mechanical Specification — Mechanical Specification

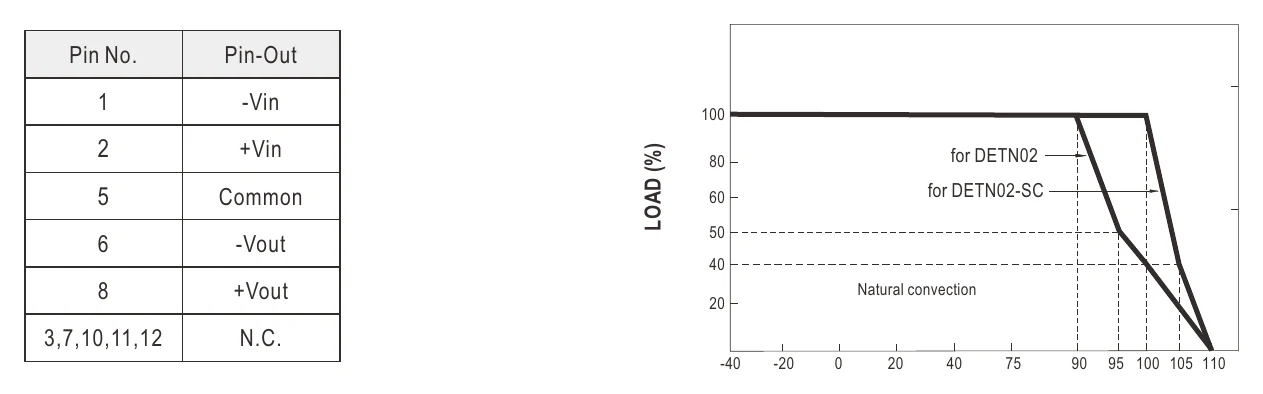

DETN02M-12 Pin Assignment — Pin Assignment

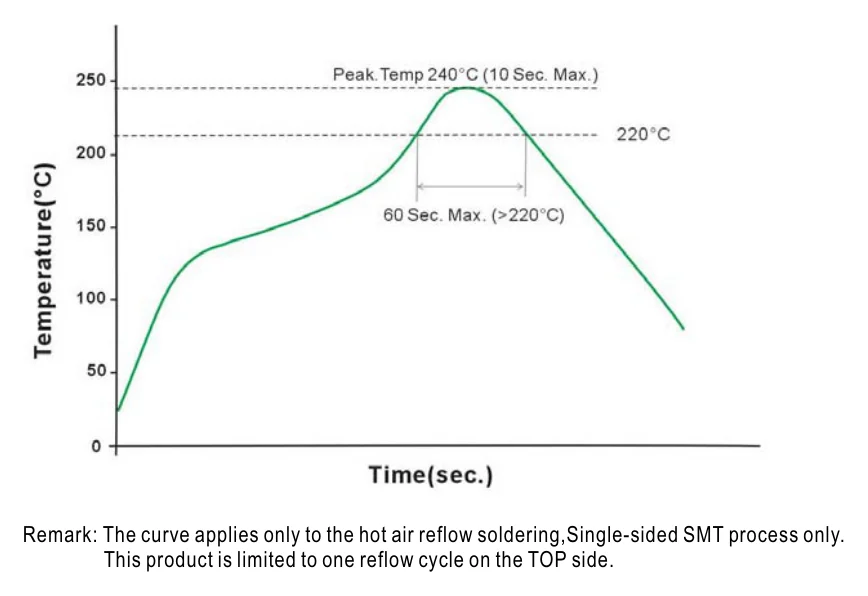

DETN02M-12 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

Mean Well SFTN02-DETN02-EMC Certificate PDF Download

Mean Well SFTN02-DETN02-CE-dec Certificate PDF Download

Mean Well SFTN02-DETN02-UK-dec Certificate PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DETN02M-12 to provide 12V for analog or interface circuitry inside industrial equipment?

Yes, this converter is a fit for low-power internal circuits that need an isolated ±12V output from a 10.8~13.2VDC input range. With a 2W rating, it is intended for small electronic sections rather than larger field loads.

Is the DETN02M-12 appropriate for embedded measurement or signal-conditioning modules that need 12V?

It is well suited to embedded designs where a ±12V rail is needed at a modest power level. The 2W output and ±84mA maximum rating make it a better match for compact instrumentation or conditioning stages than power-hungry devices.

Can this model be used in compact automation electronics where board space is limited?

Yes, its 15.24 × 10.9 × 7.1 mm size and 0.0012 kg weight support dense board layouts and compact assemblies. It is intended for low-power DC-DC conversion in tightly integrated control or monitoring hardware.

Can the DETN02M-12 be used in equipment exposed to wide temperature swings?

The specified operating range is -40°C to +100°C, so it is designed for electronics that may face substantial temperature variation. Because no IP rating is listed, it should be used in protected housings or indoor equipment rather than directly exposed outdoor environments.

What is the difference between the DETN02M-12 and the other models in the same series?

The DETN02M-12 is the ±12V version at 2W and up to ±84mA. The DETN02M-05 is 2W with a ±5V output, and the DETN02M-15 is 2W with a ±15V output at up to ±67mA; all share the same 15.24 × 10.9 × 7.1 mm dimensions, 0.0012 kg weight, and -40°C to +100°C operating range.
