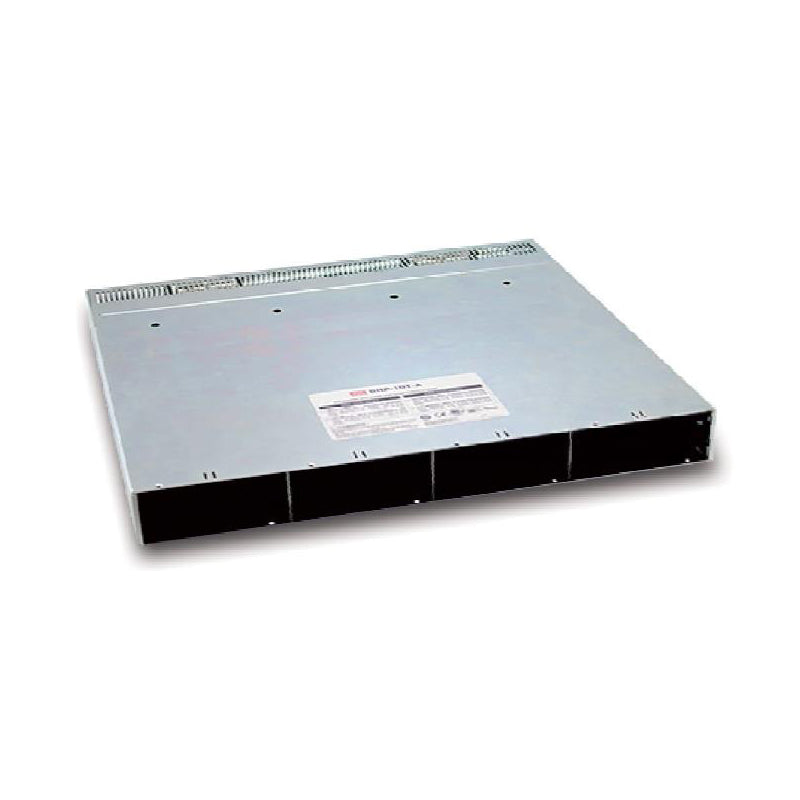

Mean Well DHP-1UT-A 3200~12800W 1U Distributed Power/Charger System
Please Login for Pricing
Description
Description
Features
| Universal AC input/Full range |
| 1U profile 19" rack shelf, fitting four 3200W modules up to 12800W with active current sharing |
| Output voltage and current programmable |
| Support hot swap(hot plug) |
| Built-in PMBus protocol(Optional CANBus protocol |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| Leakage current | <1.5mA / 230VAC |
| Auxiliary power | 5V @ 0.3A, tolerance 10%, ripple 150mVp-p, 12V @ 0.8A, tolerance 10%, ripple 450mVp-p |
| Withstand voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 700VDC |
| Working temperature | -30~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1, CSA C22.2 , TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 257 |
| Dimension (LxWxH) (mm) | Rack 400*482.6*44(with mounting bracket); 400*440*44(without mounting bracket) |
| Packing | 3pcs/17.5Kg |
Specifications
Specifications
-
BrandMean Well
-
Warranty5 Year
-
Length48.26 cm
-
Width40 cm
-
Height4.4 cm
-
Weight5.5 kg
