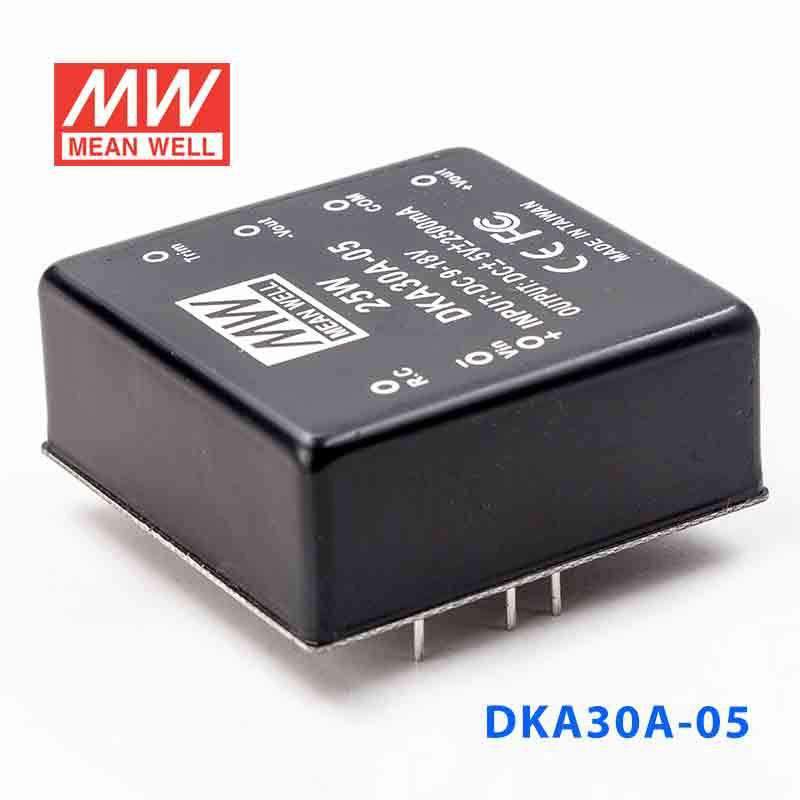

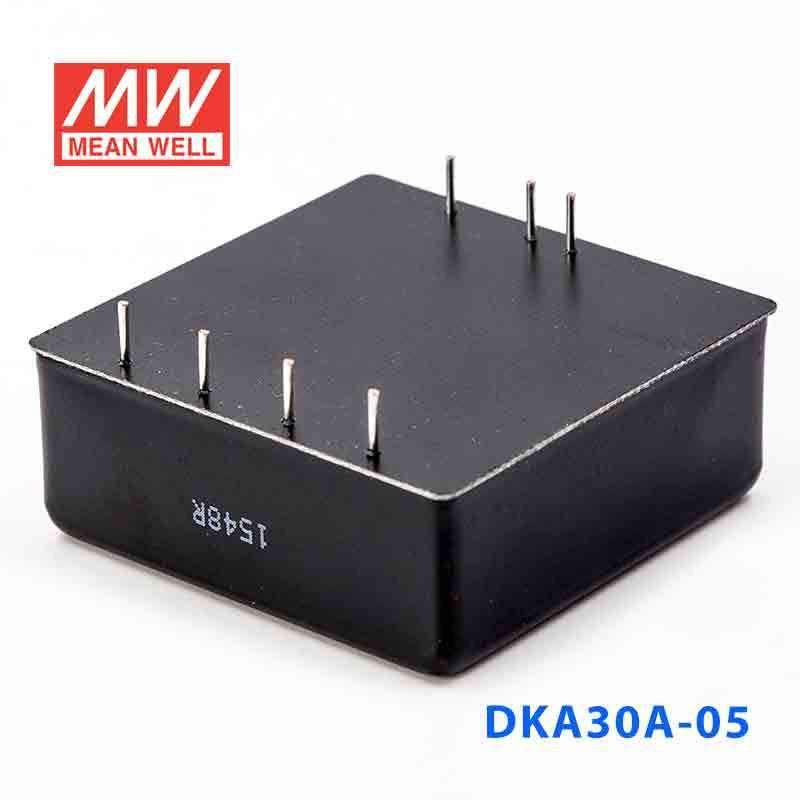

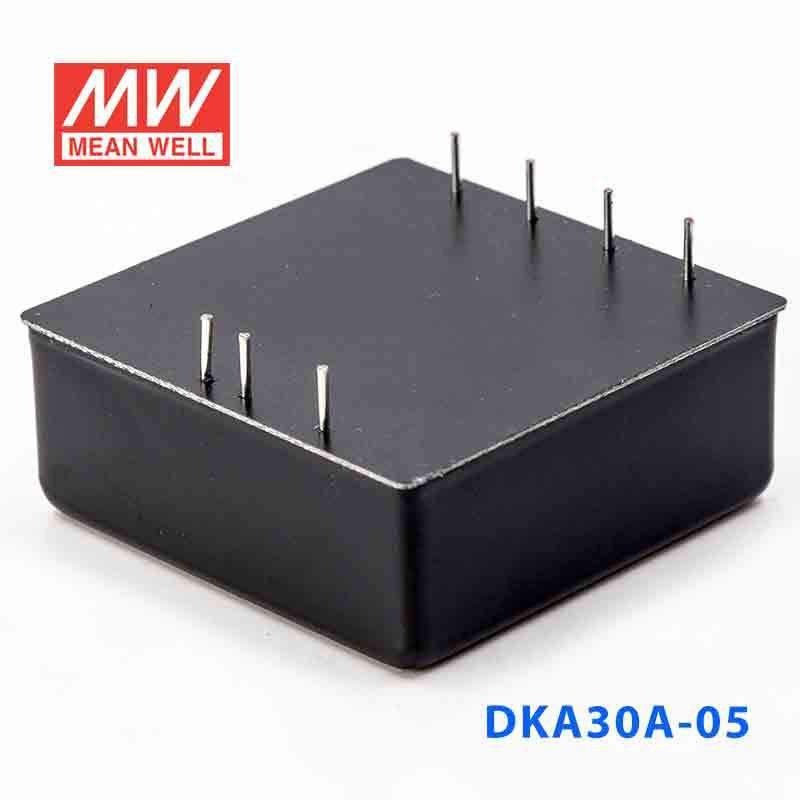

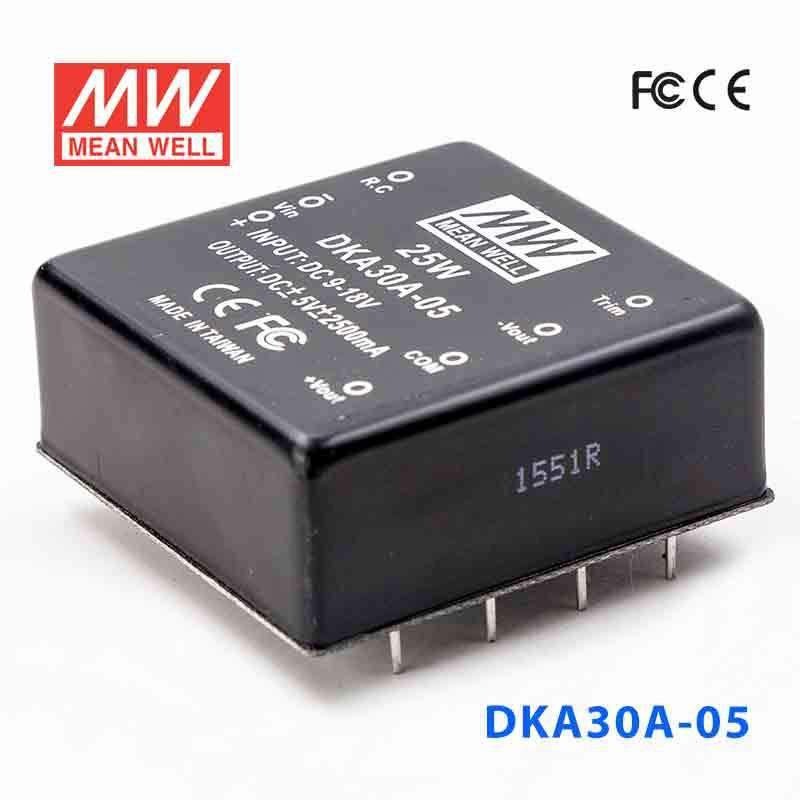

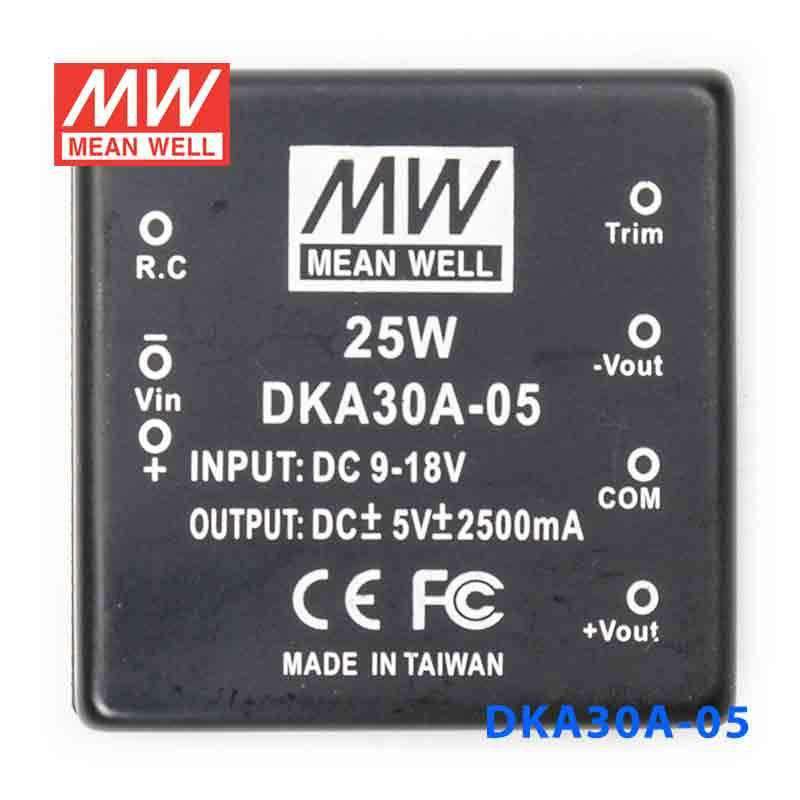

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DKA30A-05 DC-DC Converter - 25W - 9~18V in ±5V out

SKU:

DKA30A-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload Input and output over voltage

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Trimming output (±10%) for dual output

1 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.5% (max.) for dual output; ±1% (max.) for triple output
Load regulation	±0.5% (10~100% load)(Dual); ±5% (20~100% load)(Triple)
Overload protection	110%~180%, auto-recovery
Efficiency	83% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.) @500VDC
Working temperature	-40~+85°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
Temp. Coefficient	±0.03% / °C (max.)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	2" x 2" x 0.82"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKA Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

2.5 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

2.1 cm
Weight

0.11 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKA30A-05 to power 5V industrial controllers from a 9-18VAC source?

Yes. It provides constant-voltage 5V output from a 9-18VAC input and is rated at 25W with 2.5A output current. That makes it suitable for low-power 5V controller or logic loads within that source range.

Is the DKA30A-05 suitable for embedded 5V electronics in vehicles or battery-based equipment?

It can fit applications that provide 9-18VAC input and need a constant 5V output rail. With 25W capacity and 2.5A output current, it is intended for modest 5V embedded loads rather than larger 5V power systems.

Can this model be used for 5V auxiliary power in automation cabinets with low-voltage input?

Yes, if the cabinet source is within 9-18VAC and the auxiliary section needs constant 5V output. The converter is rated for 25W and 2.5A, which defines the load level it can support.

What is the difference between DKA30A-05, DKA30A-12, and DKA30A-15?

These models share the same 9-18VAC input range, 50.8 × 50.8 × 21.0 mm dimensions, -40°C to +85°C operating range, and 2-year warranty. The outputs differ: DKA30A-05 is 25W with 5V at 2.5A, DKA30A-12 is 30W with 12V at 1.25A, and DKA30A-15 is 30W with 15V at 1A.

Can the DKA30A-05 be used in hot or cold environments?

The specified operating range is -40°C to +85°C, which covers both low and high ambient temperatures. No IP rating is listed, so the provided specs do not identify it for outdoor or washdown exposure.

Model	Power	Voltage	Current	IP Rating
Mean Well DKA30C-15 DC-DC Converter - 30W - 36~72V in ±15V out	30W	15V	1A	Indoor	View
Mean Well DKA30C-12 DC-DC Converter - 30W - 36~72V in ±12V out	30W	12V	1.25A	Indoor	View
Mean Well DKA30C-05 DC-DC Converter - 25W - 36~72V in ±5V out	25W	5V	2.5A	Indoor	View
Mean Well DKA30B-15 DC-DC Converter - 30W - 18~36V in ±15V out	30W	15V	1A	Indoor	View
Mean Well DKA30B-12 DC-DC Converter - 30W - 18~36V in ±12V out	30W	12V	1.25A	Indoor	View
Mean Well DKA30B-05 DC-DC Converter - 25W - 18~36V in ±5V out	25W	5V	2.5A	Indoor	View
Mean Well DKA30A-15 DC-DC Converter - 30W - 9~18V in ±15V out	30W	15V	1A	Indoor	View
Mean Well DKA30A-12 DC-DC Converter - 30W - 9~18V in ±12V out	30W	12V	1.25A	Indoor	View
