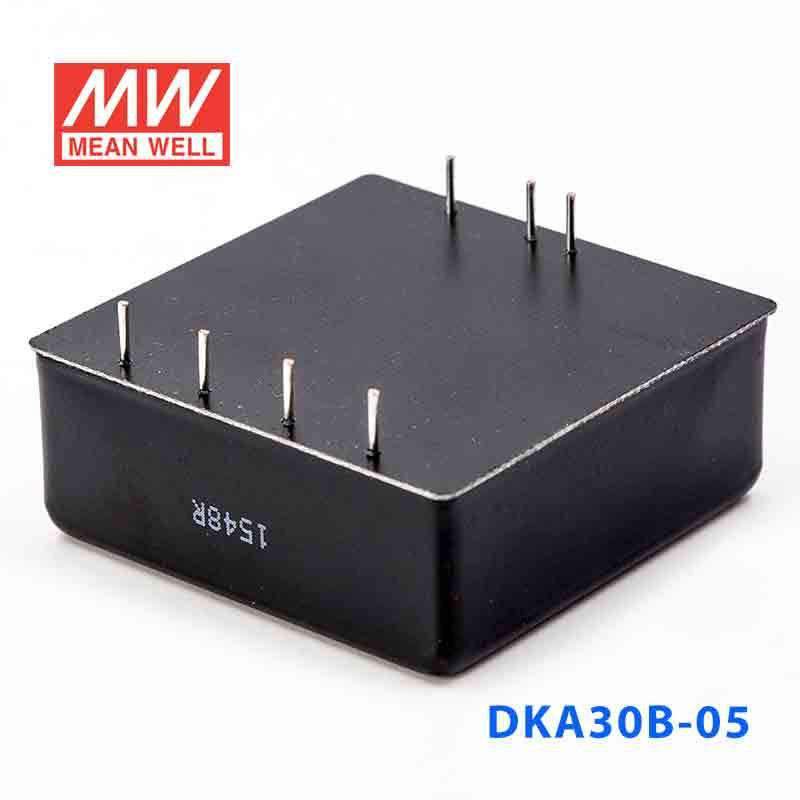

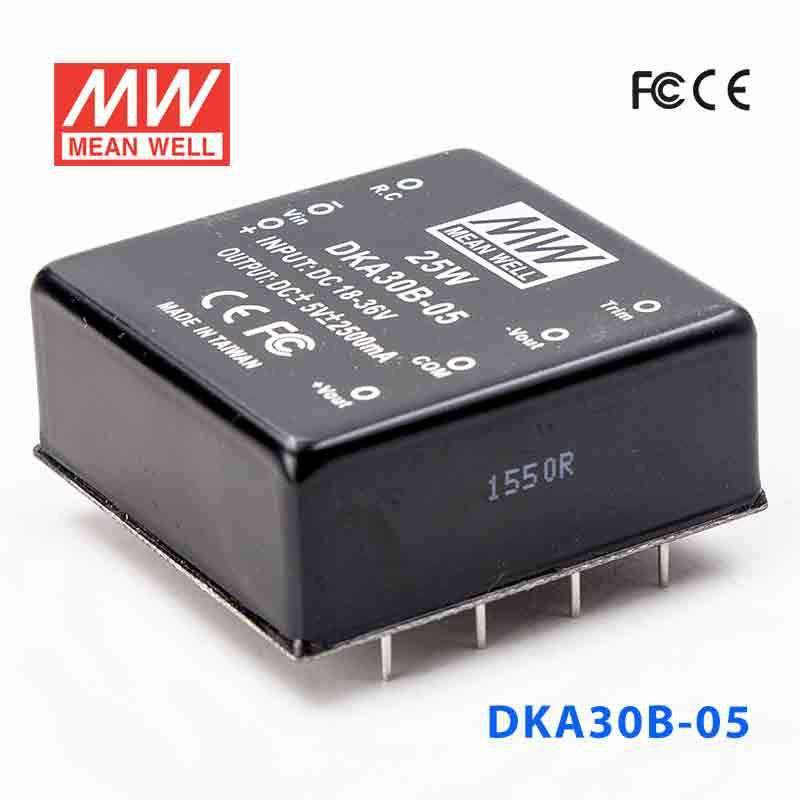

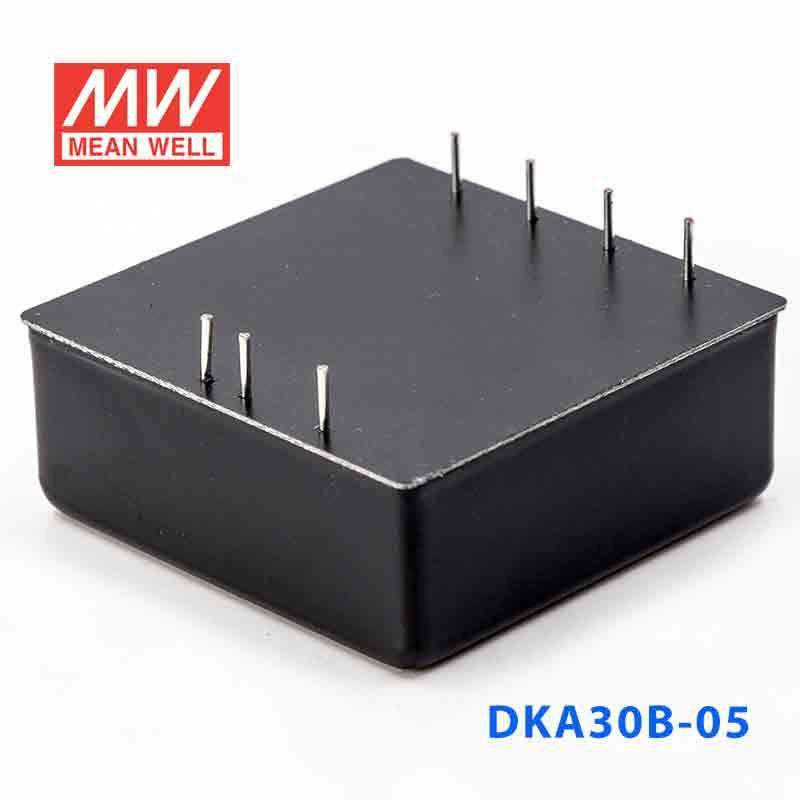

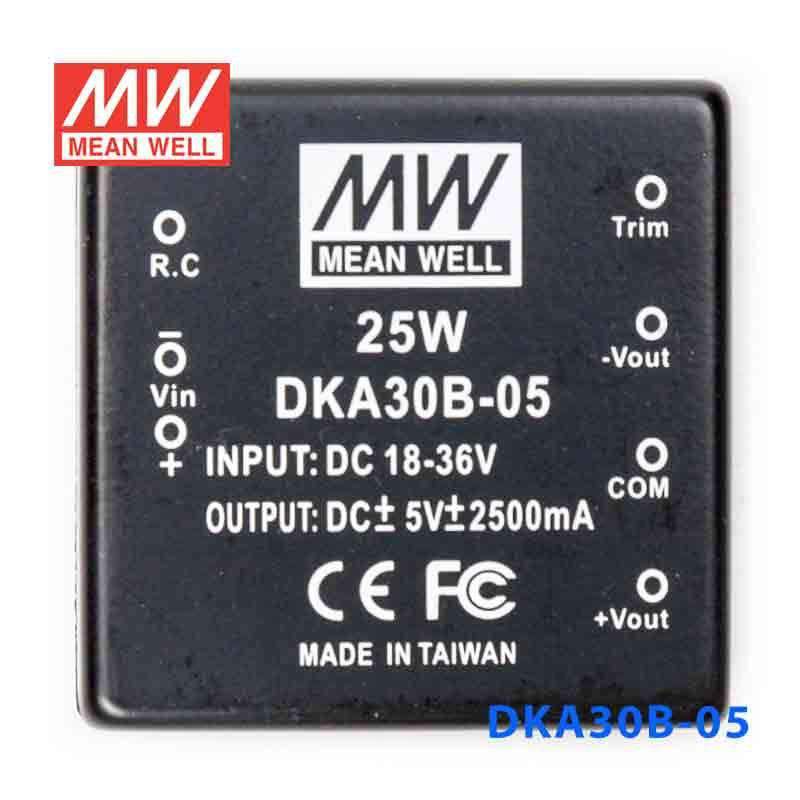

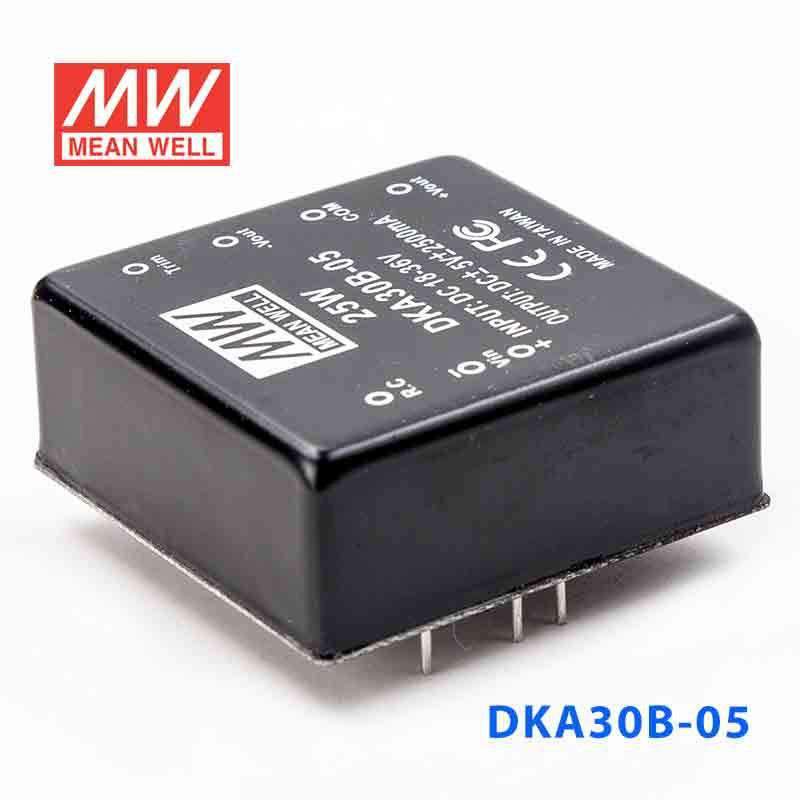

Mean Well DKA30B-05 DC-DC Converter - 25W - 18~36V in ±5V out 2.5A

SKU DKA30B-05

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DKA30B-05 is the ±5V output model of this series: rated power 25W, typical efficiency 80%.

Features

Specifications

DKA30B-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE: ±5V
CURRENT RANGE: ±250 ~ ±2500mA
RATED POWER: 25W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE ACCURACY: ±2.0%
SWITCHING FREQUENCY: 100KHz min.
EXTERNAL TRIM Adj. RANGE: ±10%

INPUT

VOLTAGE RANGE: 18 ~ 36VDC
EFFICIENCY (Typ.): 80%
DC CURRENT: Full load A: 3.2A B: 1.5A C: 0.77A No load A: 40mA B: 20mA C: 10mA
FILTER: Pi network
PROTECTION: Fuse recommended

PROTECTION (Note. 5)

OVERLOAD: 110 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03% / ℃(0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

REMOTE CONTROL: Power on: R.C ~-Vin > 4.5~5.5VDC or open, Power off : R.C~ -Vin <0.8VDC or short
MTBF: 100Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 50.8*50.8*21.0mm or 2"*2"*0.82" inch (L*W*H)

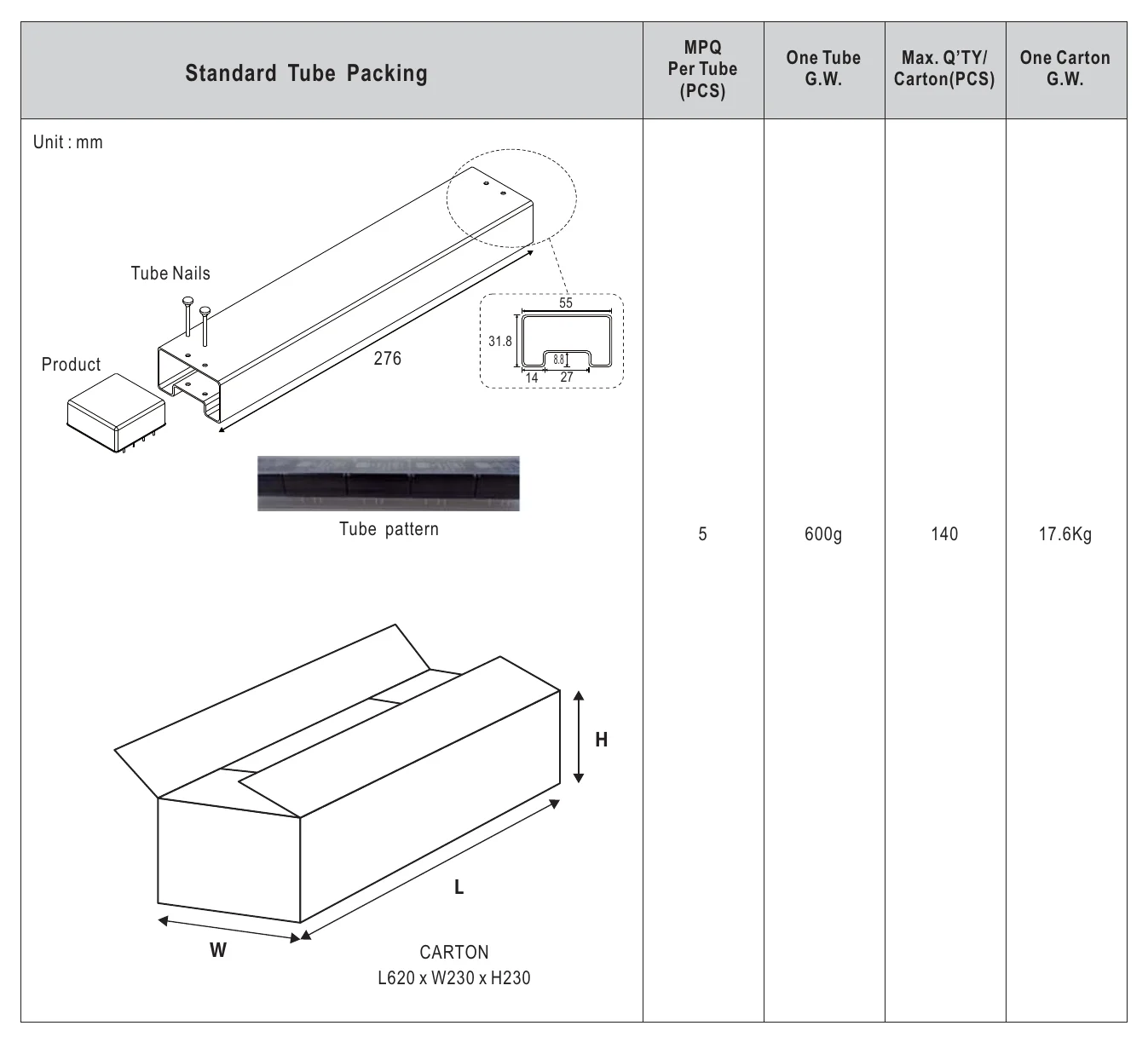

PACKING: 110g ; 5pcs/per tube, 140pcs/28 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

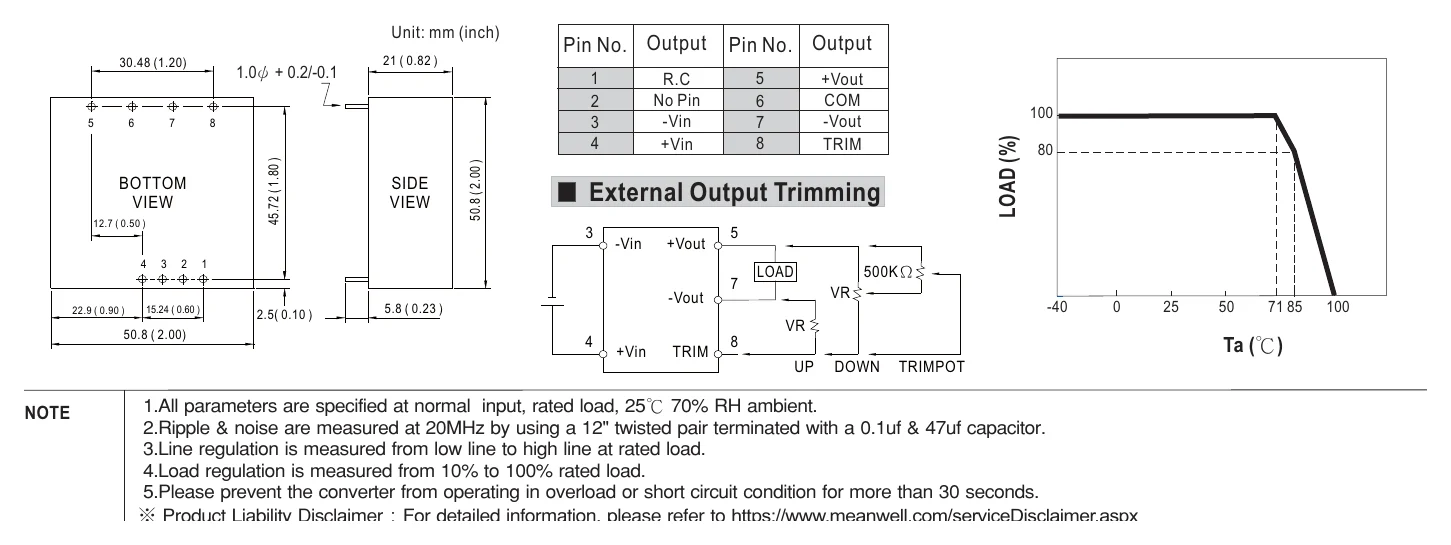

DKA30B-05 Mechanical Specification — Mechanical Specification

Downloads

Certificates3

Mean Well DKA30-TKA30-EMC Certificate PDF Download

Mean Well SKA-DKA-TKA30-UK-dec Certificate PDF Download

Mean Well DKA30-TKA30-CE-dec Certificate PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DKA30B-05 to power 5V logic in industrial control equipment?

Yes, this model fits industrial control electronics that need regulated 5V rails. It provides a dual ±5V output at up to 2.5A per rail with a 25W rating and accepts 18-36VDC input.

Is the DKA30B-05 suitable for embedded controllers or interface boards running on 5V?

It is suitable for embedded controllers or interface boards designed for a regulated 5V supply. The converter delivers a regulated ±5V output at up to 2.5A per rail, so it is aimed at lower-power embedded and automation electronics rather than loads above 25W.

Can this converter be used for IT or communications electronics that need 5V from an 18-36VDC source?

Yes, if the IT or communications device is specified for a regulated 5V supply and the available source is within 18-36VDC. The 25W power limit and up to 2.5A per rail of the ±5V output define the usable load range.

Will the DKA30B-05 work in wide-temperature industrial environments?

The operating temperature range is -40°C to +85°C (with output derating at high temperatures, see the derating curve), which supports use in equipment that sees large temperature swings. No IP rating is listed in the provided specs, so the product data does not confirm outdoor exposure or ingress protection by itself.

What is the difference between the DKA30B-05, DKA30B-12, and DKA30B-15?

The DKA30B-05 is rated for 25W with ±5V output at up to 2.5A per rail, the DKA30B-12 is rated for 30W with ±12V output at up to 1.25A per rail, and the DKA30B-15 is rated for 30W with ±15V output at up to 1A per rail. They are all dual-output models in the DKA30B series and share the same 18-36VDC input range.
