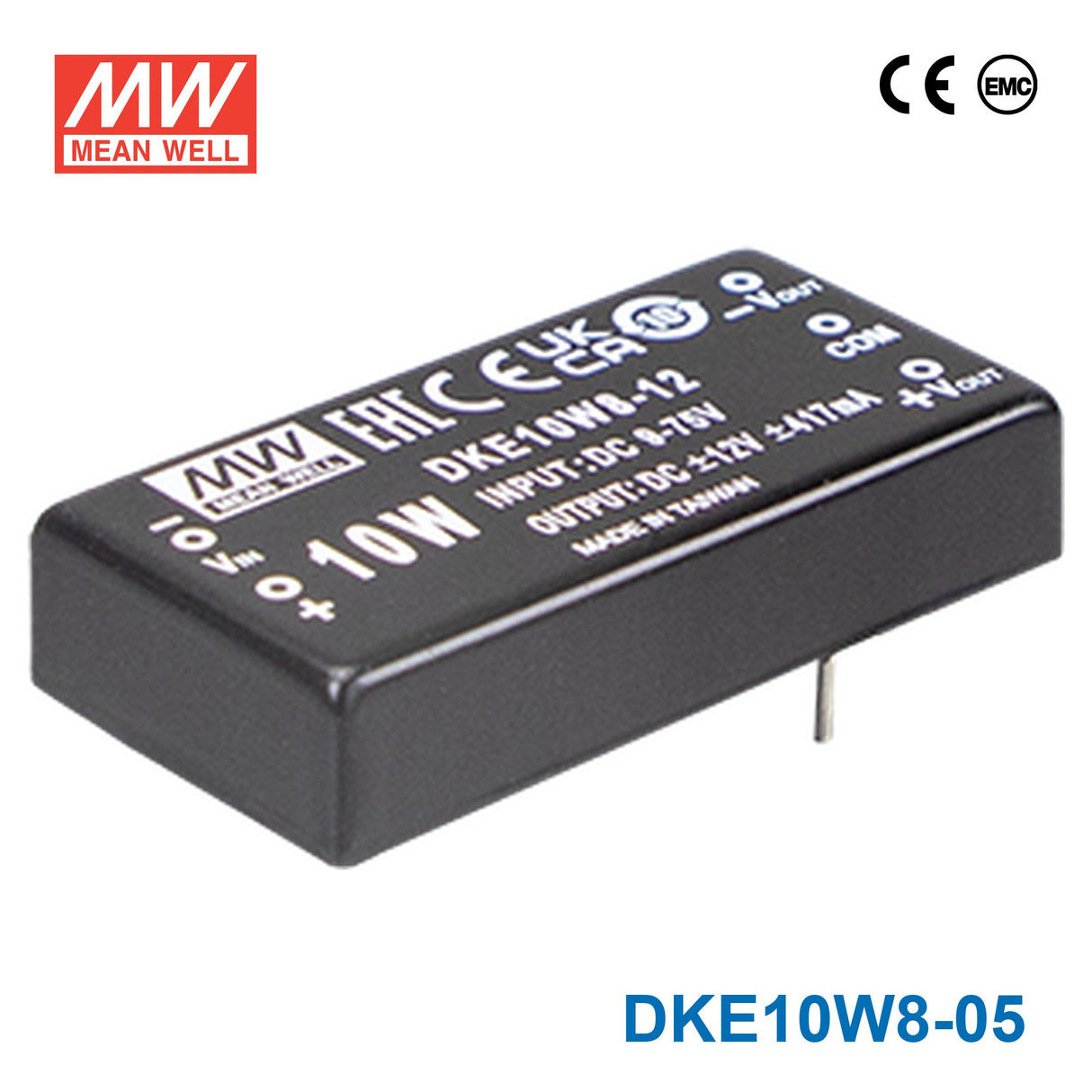

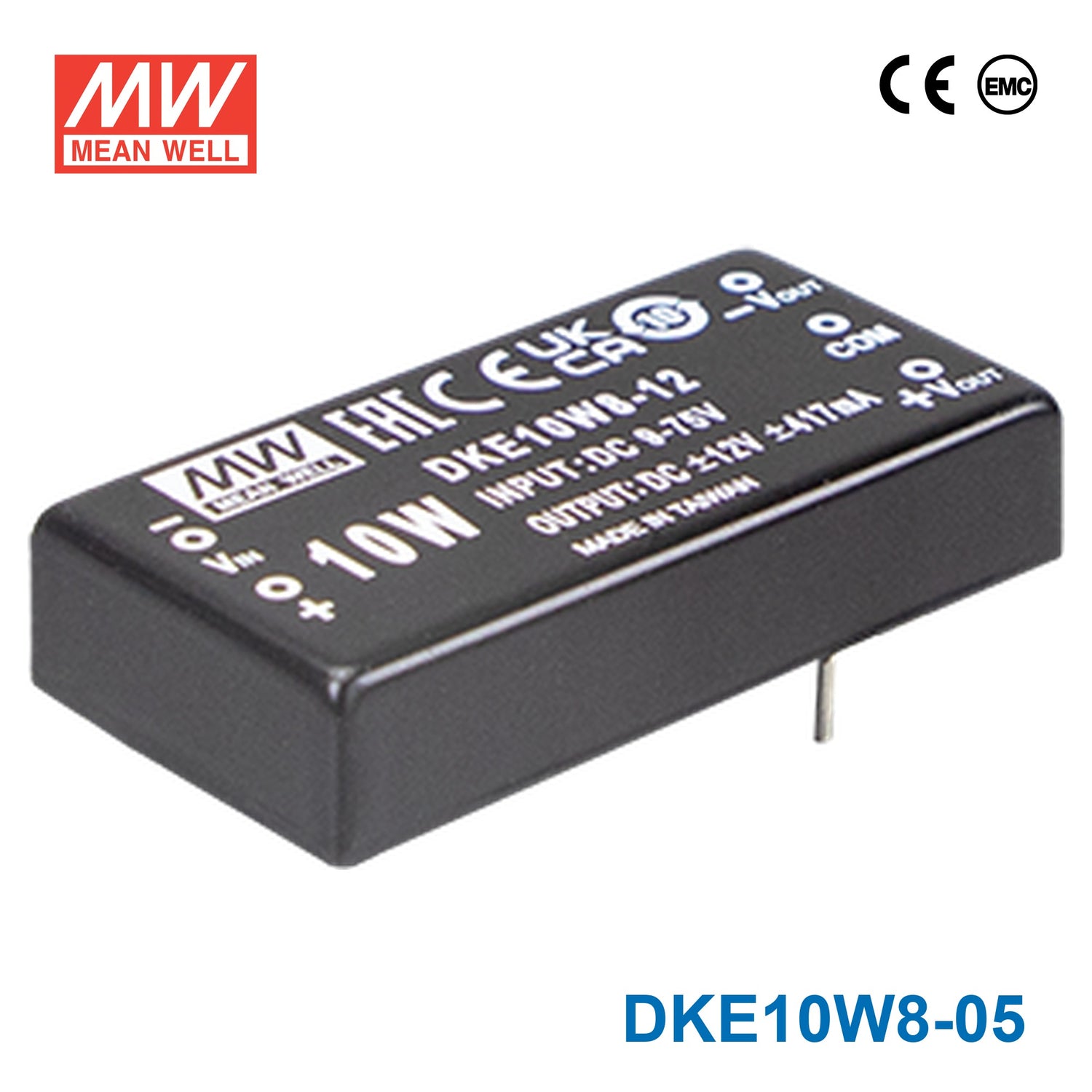

Mean Well DKE10W8-05 10W DC-DC Converter ±5VDC 1A
Please Login for Pricing
Description
Description
The DKE10W8-05 is a 10W dual output DC-DC converter in a compact 2"×1" SIP package, delivering ±5V at 1.00A per rail. With an 87% typical efficiency and a wide 4:1 input voltage range (9–36V or 18–75V depending on input), it is suitable for industrial, telecom, and battery-powered applications.
Key Features
- ✓10W output power, dual output
- ✓Output: ±5V at 1.00A per rail
- ✓8:1 ultra-wide input voltage range
- ✓87% typical efficiency
- ✓3000VDC (3kV) isolation voltage
- ✓Compact 2"×1" SIP package (50.8×25.4×13.7mm)
- ✓Operating temperature: −40°C to +85°C
- ✓Short circuit, over voltage, over current protection
Specifications
Specifications
-
BrandMean Well
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Length5.08 cm
-
Width2.54 cm
-
Height1.37 cm
-
Weight0.03 kg
