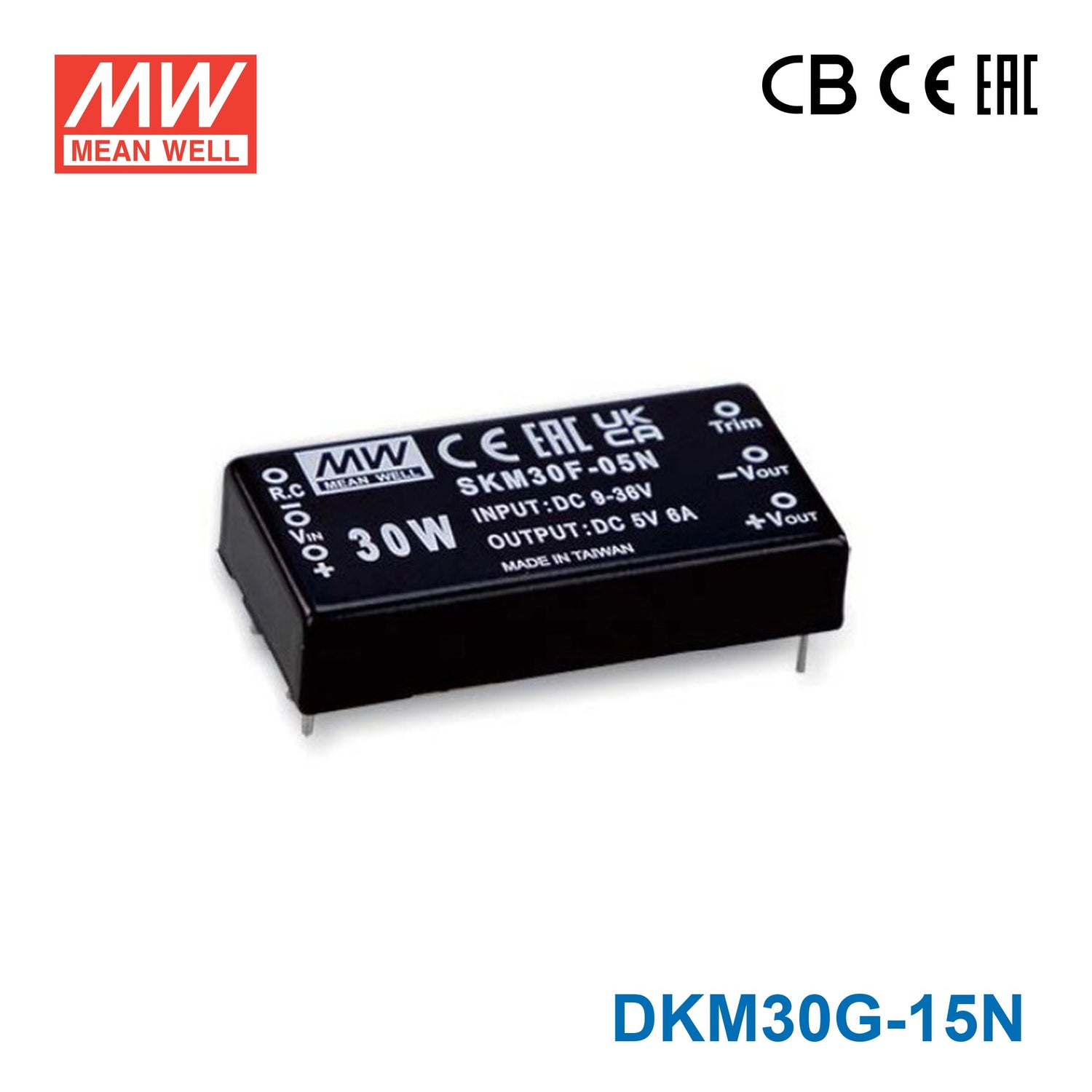

Mean Well DKM30G-15N 2"x1" Package DC-DC Converter 30W 15V, Single Output 1A

SKU DKM30G-15N

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DKM30G-15N is the ±15V output model of this series: rated power 30W, typical efficiency 89%.

SKM30-N and DKM30-N series are 30W isolated and regulated module type DC-DC converter with DIP 2"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 2"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +90℃
(-40 ~ +60℃ no derating)
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload / Over voltage
3KVDC I/O isolation
Remote ON/OFF control and Trimming output (±10%)
Screw terminal type available (Optional)
24Vdc model available (Only single output optional)
3 years warranty

Specifications

DKM30G-15NSpecifications from the official datasheet (2024-11-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 24V, 48V (18 ~ 75V)
INPUT CURRENT NO LOAD: 25mA
INPUT CURRENT FULL LOAD: 1400mA
OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0~1000mA
EFFICIENCY (TYP.): 89%
CAPACITOR LOAD (MAX.)^{* For each output}: *100μF

INPUT

VOLTAGE RANGE: 18~75Vdc
FILTER: Pi network
PROTECTION: Fuse recommended (24Vin : 6A Slow-Blow type, 48Vin: 4A Slow-Blow)

OUTPUT

VOLTAGE ACCURACY: ±2% max.
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 150mVp-p max.
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 380KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 230% Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE INPUT: Protection type : Shutdown output voltage (F type : 40Vdc typ. , G type: 86Vdc typ.)
OVER VOLTAGE OUTPUT: Clamp by TVS diodes

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >2.5~5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5 sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 ±0.5KV Line-Line
Conducted BS EN/EN61000-4-6 3V(e.m.f.)

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	±0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	3V(e.m.f.)

OTHERS

MTBF: >250Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 50.8*25.4*11.2mm (2*1*0.44 inch)
CASE MATERIAL: Six-side shielded case
PACKING: Blank Type: 31g ; 10pcs/per tube, 400pcs/40 tube/per carton ST Type: 50g ; 10pcs/Box, 120pcs/12 Box/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:12Vdc, G:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DKM30G-15N SKM30-N & DKM30-N series — SKM30-N & DKM30-N series

DKM30G-15N SKM30-N & DKM30-N series (2) — SKM30-N & DKM30-N series (2)

DKM30G-15N SKM30-N & DKM30-N series (3) — SKM30-N & DKM30-N series (3)

DKM30G-15N Mechanical Specification — Mechanical Specification

DKM30G-15N Standard Packing — Standard Packing

Typical applications

Downloads

::specification::

FAQ

What is the Mean Well DKM30G-15N designed for?

The Mean Well DKM30G-15N is a 30W DC-DC converter that provides a single 15V output. It is suited to embedded and industrial power applications that need DC voltage conversion in a compact 2"x1" package. This model is typically chosen where board space is limited and stable regulated output is important.

What are the main electrical specifications of the DKM30G-15N?

This model is rated for 30W total output power and delivers a dual ±15V DC output. Its rated output current is ±1A per rail. Mean Well also specifies up to 89% efficiency for this converter.

Is the DKM30G-15N suitable for demanding temperature environments?

Yes, the DKM30G-15N is specified for operation from -40°C to +90°C. Mean Well states it can run from -40°C to 60°C without derating. That makes it a practical option for equipment exposed to both low and elevated ambient temperatures.

What protection features are included in the DKM30G-15N?

The DKM30G-15N includes protection for short circuit, overload, and over voltage conditions. It also provides 3KVDC input-to-output isolation. These features help support reliability in industrial and OEM applications.

Does the DKM30G-15N require a minimum load to regulate properly?

No, this model does not require a minimum load. That can be useful in systems where load conditions vary or where the converter may spend time under light-load operation. It gives more flexibility than converters that need a minimum output demand.

Does the DKM30G-15N support control or adjustment features?

Yes, the DKM30G-15N supports remote ON/OFF control. However, external output trimming is not available on dual output models. The product is built in an industry-standard 2"x1" DIP package format.

What warranty is provided with the DKM30G-15N?

Mean Well provides a 3-year warranty for the DKM30G-15N. For B2B buyers, that adds confidence for use in commercial and industrial equipment. It aligns with the product's positioning as a compact, protected DC-DC converter for long-term service.
