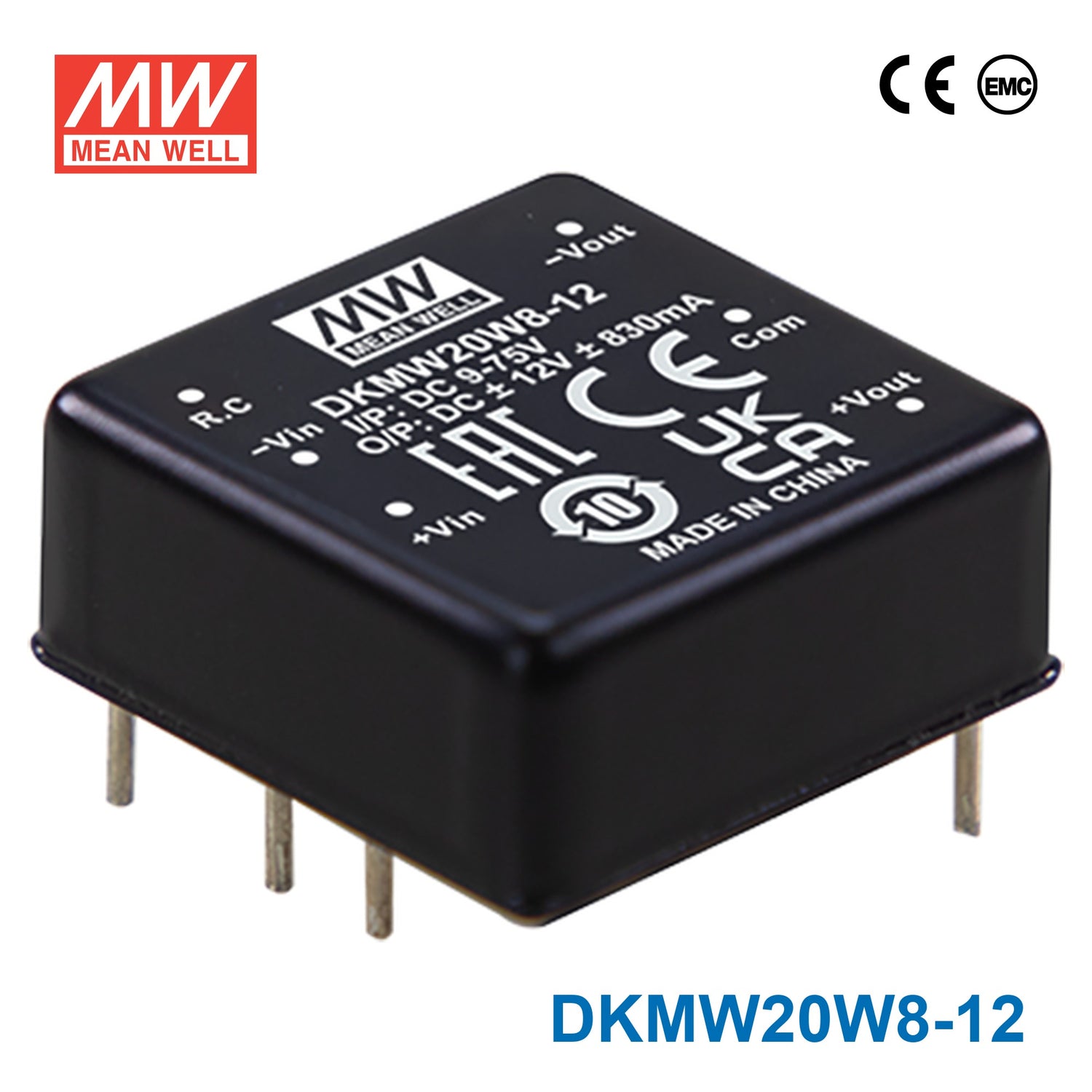

Mean Well DKMW20W8-12 20W DC-DC Converter ±12VDC
Please Login for Pricing
Description
Description
The DKMW20W8-12 is a 20W dual output DC-DC converter in a compact 1"×1" SIP package, delivering ±12V at 0.83A per rail. With an 87% typical efficiency and a wide 4:1 input voltage range (9–36V or 18–75V depending on input), it is suitable for industrial, telecom, and battery-powered applications.
Key Features
- ✓20W output power, dual output
- ✓Output: ±12V at 0.83A per rail
- ✓8:1 ultra-wide input voltage range
- ✓87% typical efficiency
- ✓1500VDC (1.5kV) isolation voltage
- ✓Compact 1"×1" SIP package (25.4×25.4×12.2mm)
- ✓Operating temperature: −40°C to +85°C
- ✓Short circuit, over voltage, over current protection
- ✓Low input ripple current
Specifications
Specifications
-
BrandMean Well
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Length2.54 cm
-
Width2.54 cm
-
Height1.22 cm
-
Weight0.02 kg
