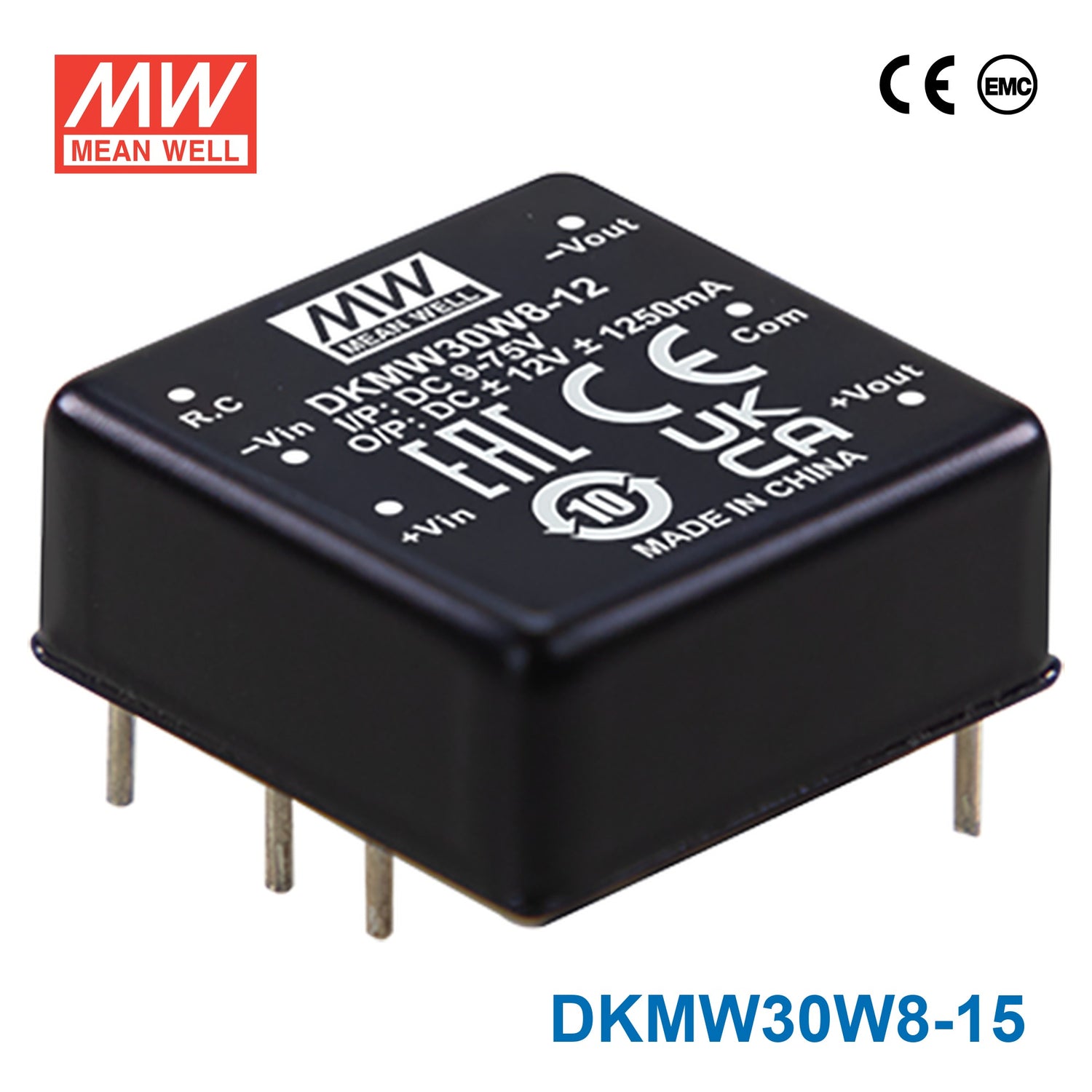

Mean Well DKMW30W8-15 30W DC-DC Converter ±15VDC 1A

30W dual output DC-DC converter±15VDC9–75VDC input

SKU DKMW30W8-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DKMW30W8-15 is the ±15V output model of this series: rated power 30W, typical efficiency 88.5%.

SKMW30W8 and DKMW30W8 series are 30W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+90℃, 1.5KVdc I/P-O/P isolation voltage, continuous-mode short circuit, overload, over voltage, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for 9~75Vdc 8:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
8:1(9~75Vdc) ultra-wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / UVLO
1.5KVdc I/O isolation
Remote ON/OFF control
Trimming output (±10%)
3 years warranty

Specifications

DKMW30W8-15Specifications from the official datasheet (2026-04-13 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 12V, 24V,36V,48V,72V (9 ~ 75V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 707mA
OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0~1000mA
EFFICIENCY (TYP.): 88.5%
CAPACITOR LOAD (MAX.)^{* For each output}: *1000μF

INPUT

VOLTAGE RANGE: 9~75Vdc
SURGE VOLTAGE (100ms max.): 100Vdc
FILTER: Pi network
PROTECTION: Fuse recommended. 6A delay time Type

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 150mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
CROSS REGULATION: ±5% @ 25% ~ 100% load only dual output
SWITCHING FREQUENCY (Typ.): Single output models: 270KHz, Dual output models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Continuous, automatic recovery
OVERLOAD: 110 ~ 200% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Clamp by zener diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down
UNDER VOLTAGE LOCKOUT (Typ.): Start-up voltage: 8.5Vdc Shutdown voltage: 8Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 55℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3 sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVdc
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500Vdc / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A with additional components
Radiated BS EN/EN55032(CISPR32) Class A with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, Line-Line 0.5KV
Conducted BS EN/EN61000-4-6 Level 2, 3V
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

OTHERS

MTBF: >1625Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Six-sided shield metal case
PACKING: 22.5g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input (48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DKMW30W8-15 DIMENSION (L*W*H) 25.4*25.4*10.2mm — DIMENSION (L*W*H) 25.4*25.4*10.2mm

DKMW30W8-15 Input Voltage VS Derating Curve — Input Voltage VS Derating Curve

DKMW30W8-15 Input Voltage VS Derating Curve (2) — Input Voltage VS Derating Curve (2)

DKMW30W8-15 Illustration (page 5) — Illustration (page 5)
