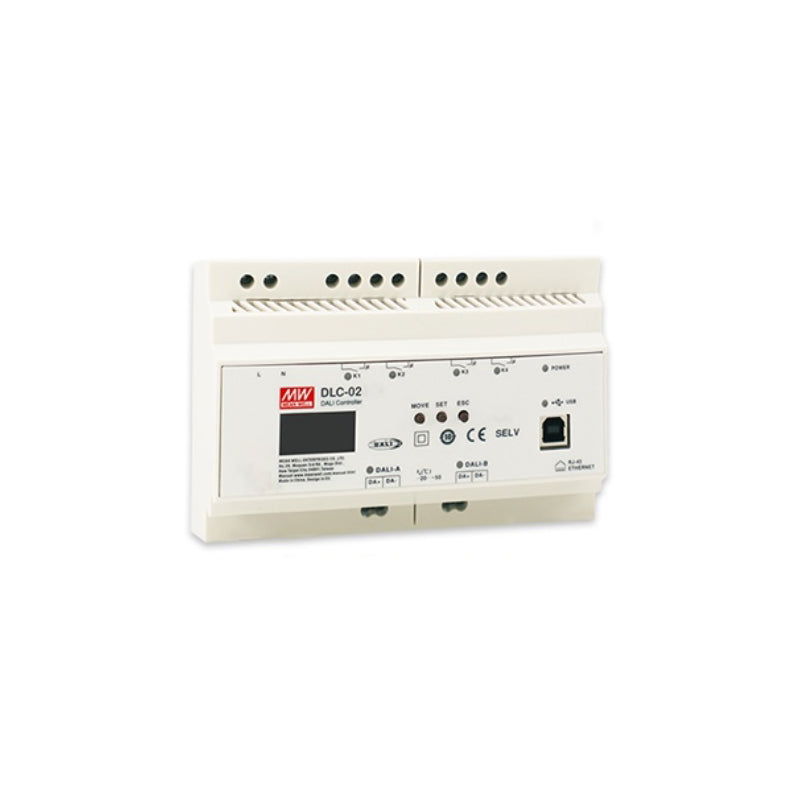

Mean Well DLC-02 DALI Digital Lighting Controller

DALI2 master2 channels of DALI bus4 programmable relaysDLC software for settingLCD displayRJ45 and KNX for connecting to other systems

SKU DLC-02

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

DLC-02 is the model of this series: rated power 7.68W.

DLC-02 is a multi-master application controller to obtain the information of the DALI-2 system from DALI input device and control the DALI ECGs to make a lighting effect.Devices in the DALI bus can be scan, configure and setting through the PC software. It is a simple way to install a DALI lighting system.As KNX to DALI gateway, DLC-02-KN is used to connect a digital DALI lighting system to the KNX installation. Thus, room-based lighting control is conveniently incorporated into the higher-level KNX building management system.The device transforms switch and dim commands from the connected KNX system into DALI telegrams and status information from the DALI bus into KNX telegrams.You can also easily commission the DALI via the integrated web server. For this purpose connect the DLC-02 directly to the IP network. Use a standard patch cable to connect the device to a switch, hub or router of the IP network. You can also use a WLAN access point as network coupler. This means you can commission the DALI via a portable not e book, tablet PC or mobile phone.

Features

DALI-2 multi-master application controller
Two independent DALI Bus channels with built in DALI power supply (up to 250mA per bus)
Connect up to 2×64 DALI ECGs/Driver and up to 2×12 DALI input devices
Max16 scenes and group setting per channel
LCD display，LED indicators and buttons for local operation
Built in with 250V/5A×4 relay
Easy installation and configuration via PC software or Web browser
Multiple control effect based on the time event and input devices
KNX to DALI gateway(KNX version)
Support for DALI-2 devices with Part 207/208/301/302/303/304
5 years warranty

Specifications

DLC-02Specifications from the official datasheet (2021-10-08 edition)Download datasheet PDF

OUTPUT

BUS VOLTAGE: Built-in DALI bus power supply; Voltage range : 2x16V
GUARANTEED SUPPLY CURRENT: 2x240mA
MAXIMUM SUPPLY CURRENT: 2x250mA
RATED POWER: 7.68W
SETUP,RISE TIME: 250ms/115VAC,50ms/230VAC

INPUT

VOLTAGE RANGE: 100~305VAC, 140~430VDC,(class Ⅱ)
FREQUENCY RANGE: 47~63Hz
AC CURRENT(Typ.): 0.5A/115VAC 0.25A/230VAC
INRUSH CURRENT(Typ.): COLD START 45A/230VAC

PROTECTION

SHORT CIRCUIT: Short circuit delay 0.7S shutdown,Restart period 5S, Retry time 0.7S

FUNCTION

USB INTERFACE: 1 USB slave connector , type-B
DISPLAY: OLED display for easy operation
INDICATOR: 2*LED indicators for BUS voltage; 4*LED indicators for relay ;1*LED indicators for power on.
GENERIC SETTING: Three buttons( MOVE, SET,ESC) on the front panel to set and view settings
KNX: DALI Gateway(KNX type)
Ethernet: Control via web browser(RJ-45)
Relay: 10A/125VAC ,5A/250VAC

ENVIRONMENT

WORKING TEMP.: -25 ~ +45℃
WORKING HUMIDITY: 5 ~ 93% RH non-condensing; comply with climatic EN50090-2-2
STORAGE TEMP., HUMIDITY: -25 ~ +70℃, 10 ~ 95% RH non-condensing
VIBRATION: 5 ~ 150Hz, each along X, Y, Z axes according to EN50090-2-2

SAFETY & EMC

SAFETY STANDARDS: DLC-02: Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11 ; DLC-02-KN: Compliance to BS EN/EN63044-1, BS EN/EN63044-3
DALI STANDARDS: Compliance to BS EN/EN62368-101,BS EN/EN62386-103
EMC EMISSION: DLC-02: Compliance to BS EN/EN55015,Harmonic current class A ; DLC-02-KN: Compliance to BS EN/EN63044-5-2, BS EN/EN63044-5-3(BS EN/EN50491-5-2/3)
EMC IMMUNITY: DLC-02: Compliance to BS EN/EN61547 ; DLC-02-KN: Compliance to BS EN/EN63044-5-2, BS EN/EN63044-5-3(BS EN/EN50491-5-2/3)

OTHERS

DIMENSION: 144*90*58.3mm (L*W*H)
PACKING: 0.43Kg; 30pcs/13.9Kg/ 1.30CUFT
DIN RAIL MOUNTING: 35 mm rail ;8 units wide
ENCLOSURE MATERIAL: ABS-V0

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 230VAC input and 25℃ of ambient temperature.
2. Maximum allowable DALI driver is 64 per channel.
3. The maximum allowable input device depends on the connected DALI drivers and the current requirement of input device. For example , if a 64 ECG is connected, the maximum driver current available in the DALI bus is 250mA-(2mA×64)=122mA. If the specific power consumption of an input device is 10mA then the maximum of input device should be 12 pcs.
4. The devices may be operated only up to 2000m(6500ft).

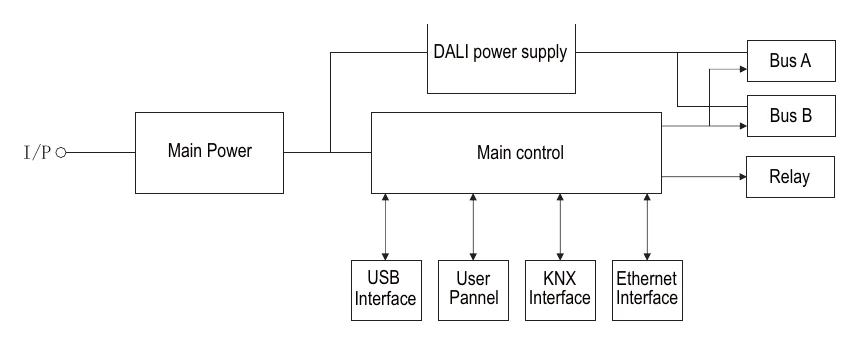

Technical drawings

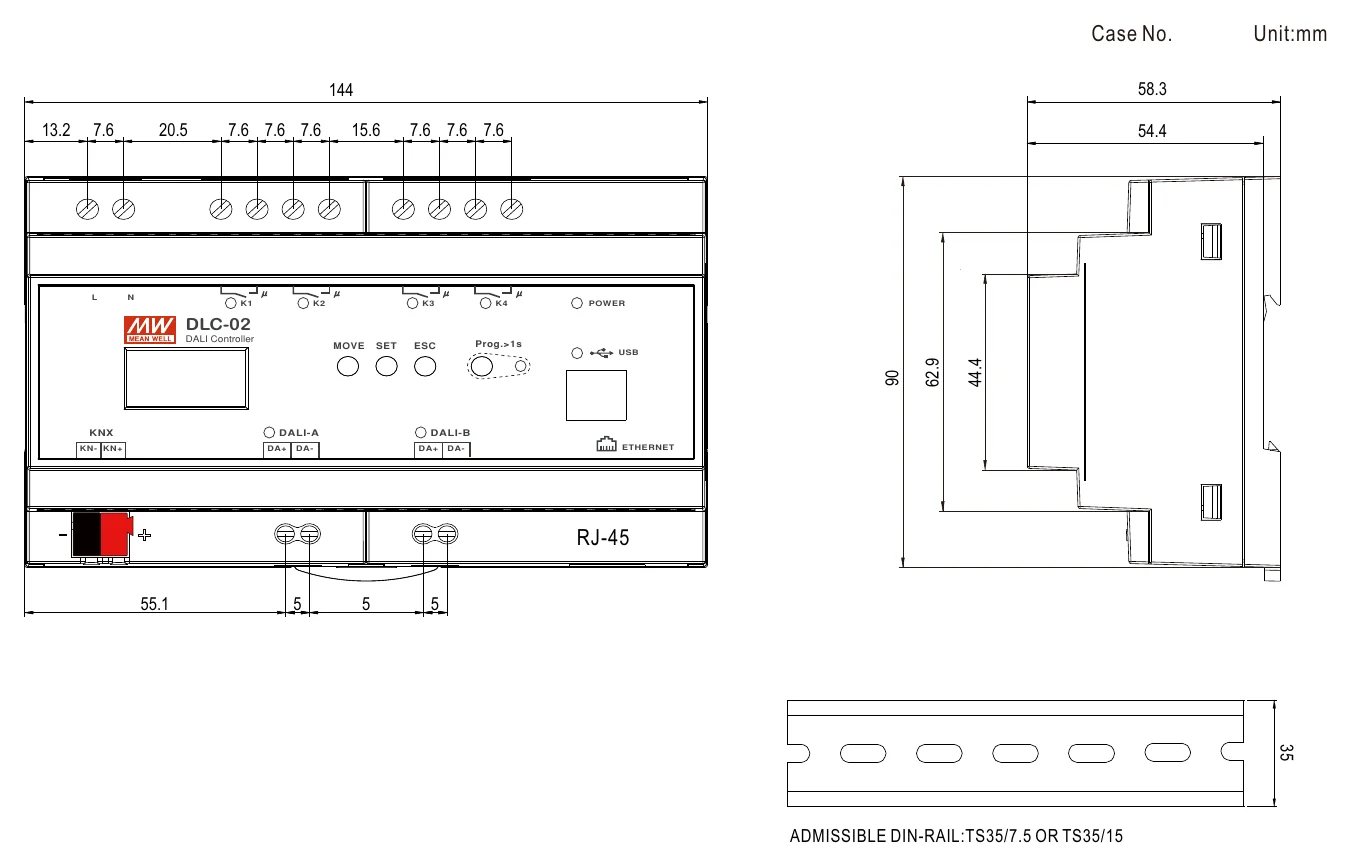

DLC-02 Mechanical Specification — Mechanical Specification

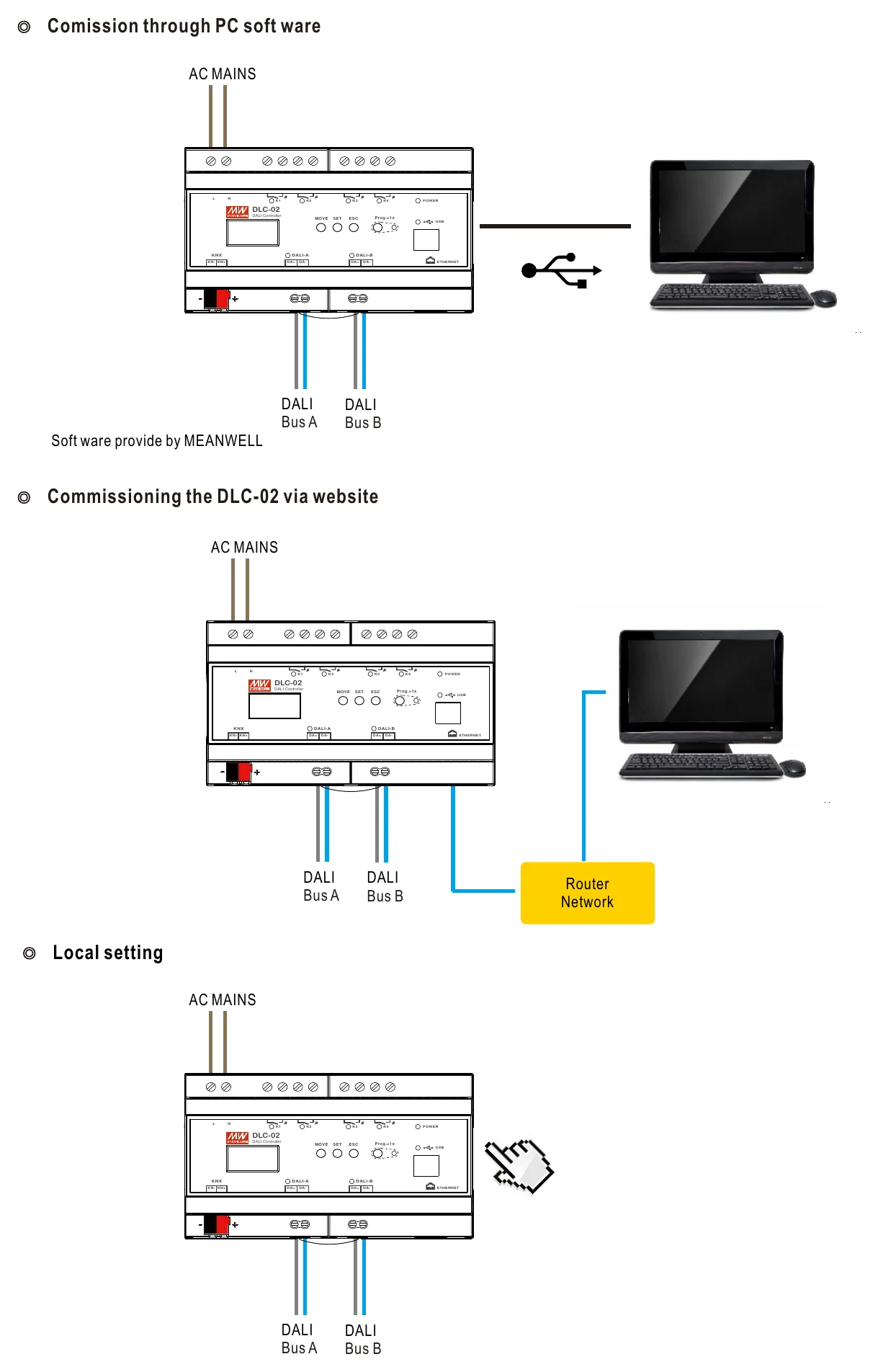

DLC-02 Program Setting — Program Setting

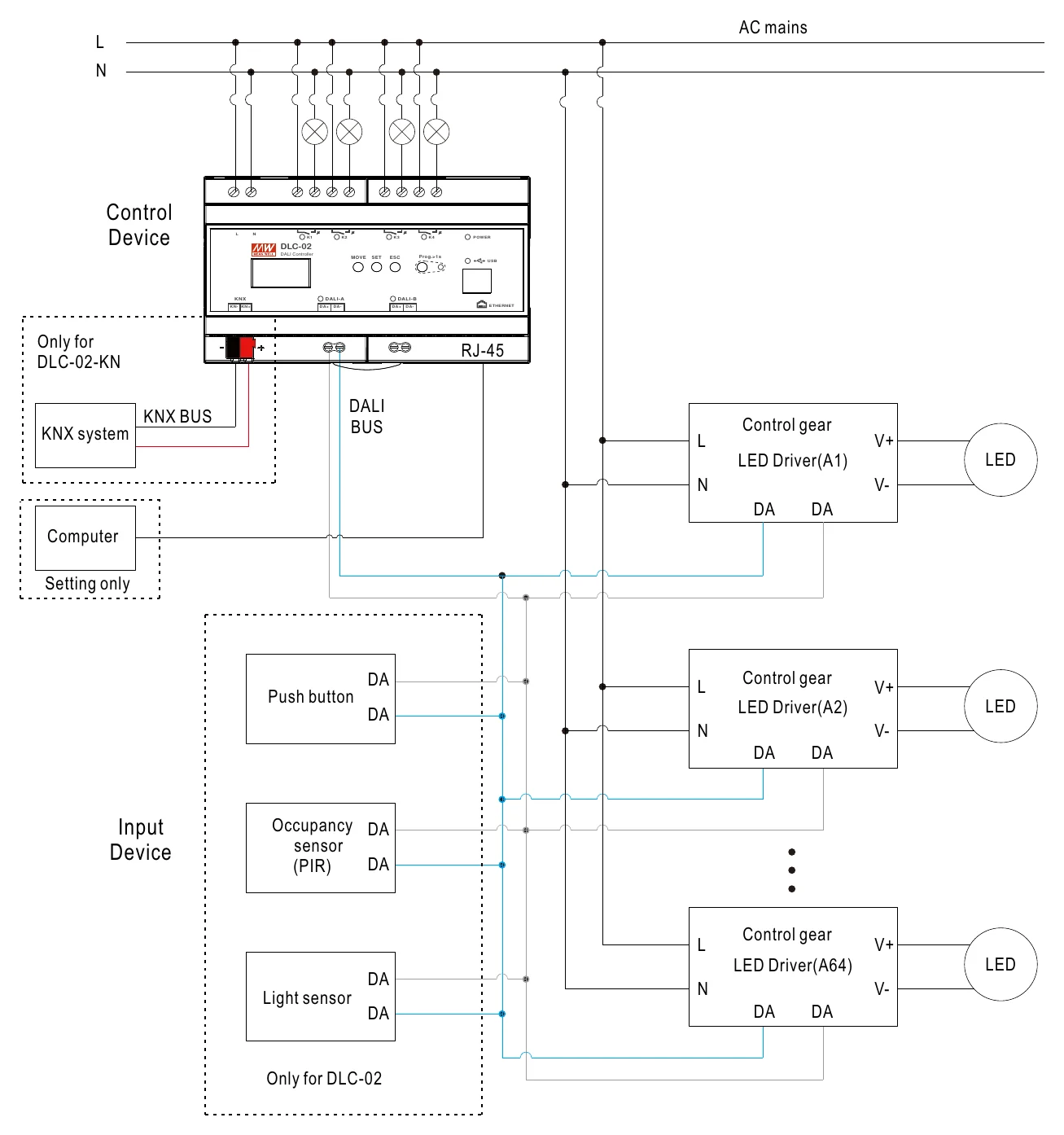

DLC-02 Installation Diagram — Installation Diagram

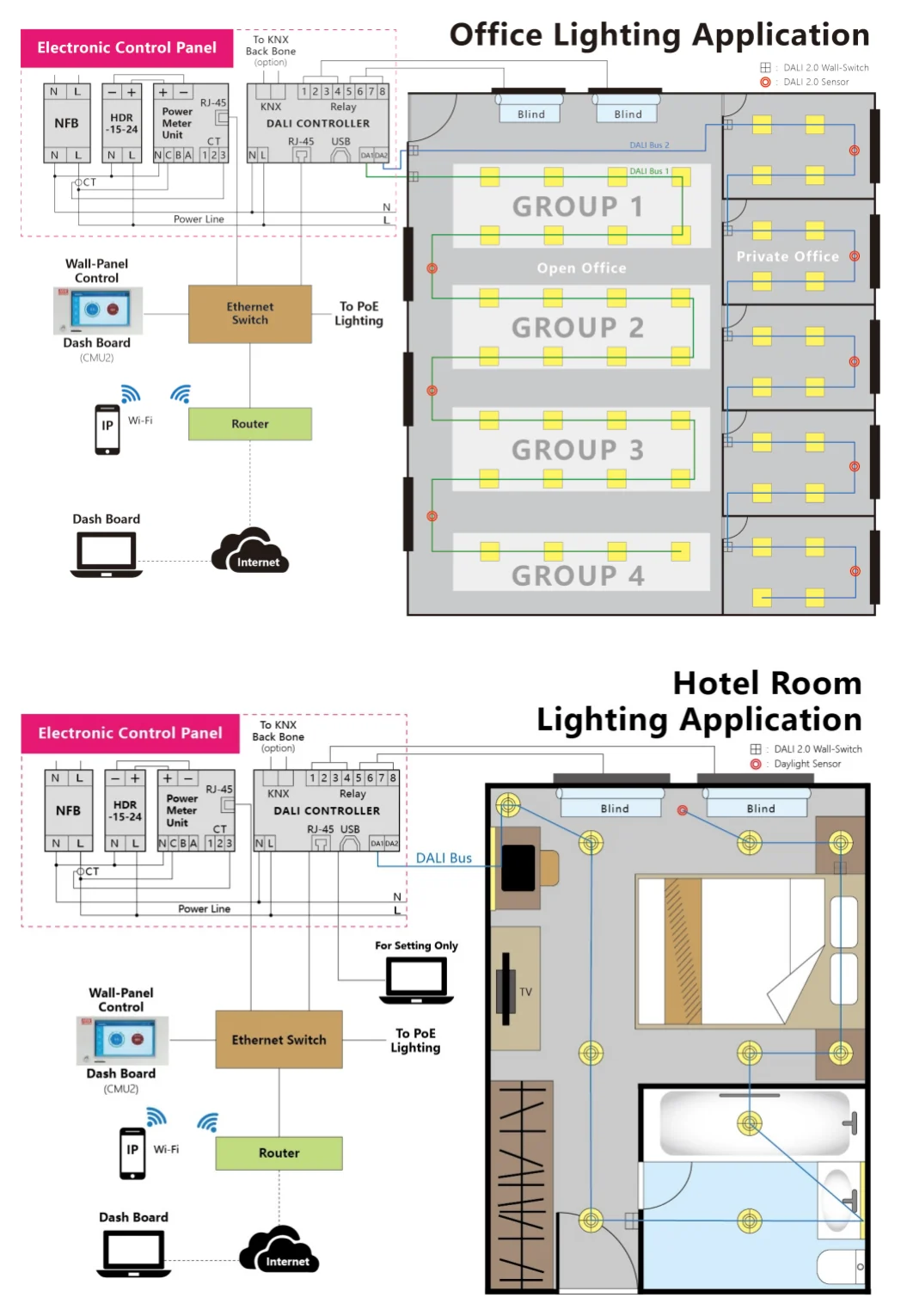

DLC-02 Digital Light Application — Digital Light Application

Typical applications

Office lighting
Smart home lighting
Luxury villas lighting
LED indoor lighting
Building automation system

Downloads

Datasheet1

DLC-02 datasheetDLC_02_spec.pdf · 2021-10-08 edition PDF Download

FAQ

What is the Mean Well DLC-02 designed to do?

The Mean Well DLC-02 is a DALI-2 multi-master digital lighting controller for managing larger lighting control systems. It supports scene control, group settings, timer events, and sequence scheduling for commercial or other professional lighting applications.

How many DALI devices can the DLC-02 manage?

This model has 2 independent DALI bus channels with a built-in DALI power supply rated up to 250 mA per bus. It supports up to 2 x 64 DALI control gears and up to 2 x 12 input devices.

Does the DLC-02 support DALI-2 and DT8 color control?

Yes. The DLC-02 supports DALI-2 devices with Part 207, 209, 301, 302, 303, and 304, and it also supports DT8 color control. Supported DT8 modes include tunable white, RGBW, and XY-coordinate control.

What control and scheduling features are available on the DLC-02?

The controller supports up to 16 scenes and group settings per channel, along with effect settings using timer events and input devices. It can store up to 255 timer events and supports 8 scheduled sequences with up to 16 steps per sequence.

Is the DLC-02 suitable for environments with wider temperature demands?

The published working temperature range is -25°C to +70°C, which supports use in a broad range of indoor or protected application environments. The product data also lists an ambient maximum of 40°C, so buyers should confirm their project conditions against the full product documentation.

What local control and interface features does the DLC-02 include?

The DLC-02 includes an OLED display, LED indicators, and onboard buttons for local operation. It is also designed for configuration through DLC-02 software and includes built-in Modbus TCP/IP protocol support for system-level integration.

What are the physical size and warranty for the Mean Well DLC-02?

The listed dimensions are 144 x 90 x 58.3 mm, and the unit weight is 0.43 kg. Mean Well specifies a 5-year warranty for this model.
