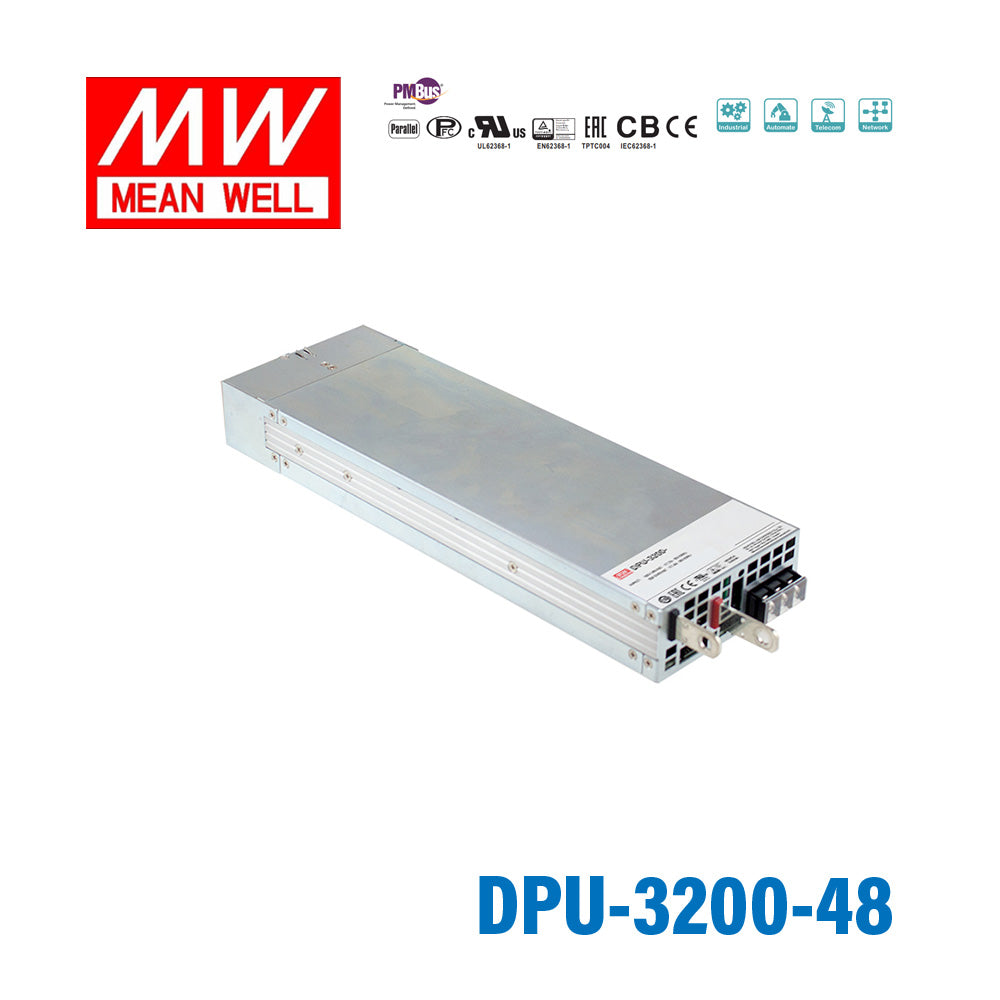

Mean Well DPU-3200-48 power supply 3200W 48V 67A

high efficiency up to 94.5%, output voltage and current level programmable, active current sharing up to 16000W(4+1)

|

Description

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 16000W (4+1)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
Optional PMBus or CANBus protocol
5 years warranty


General Specification

AC input voltage range 90~264VAC, 127~370VDC
AC inrush current (max.) COLD START 55A/230VAC
DC adjustment range ±15% by potentiometer
Overload protection 105%~115%
Over-voltage protection 131%~156% rated output voltage, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 1.5KVAC
Working temperature -30~+70°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3
Connection Terminal block for input and output
Dimension (LxWxH) 325.8*107*41mm
Case No. 256C
Packing 4pcs /12kg

Specifications

  • Brand
    Mean Well
  • Series
    DPU Series
  • Power Rating
    3216 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    67 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    32.58 cm
  • Width
    10.7 cm
  • Height
    4.1 cm
  • Weight
    2.76 kg
