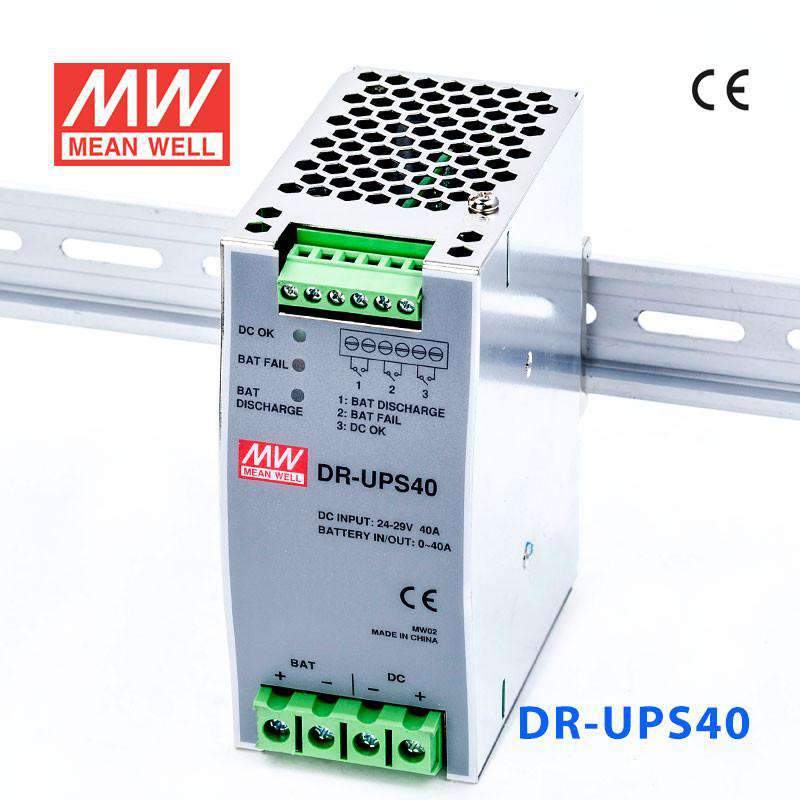

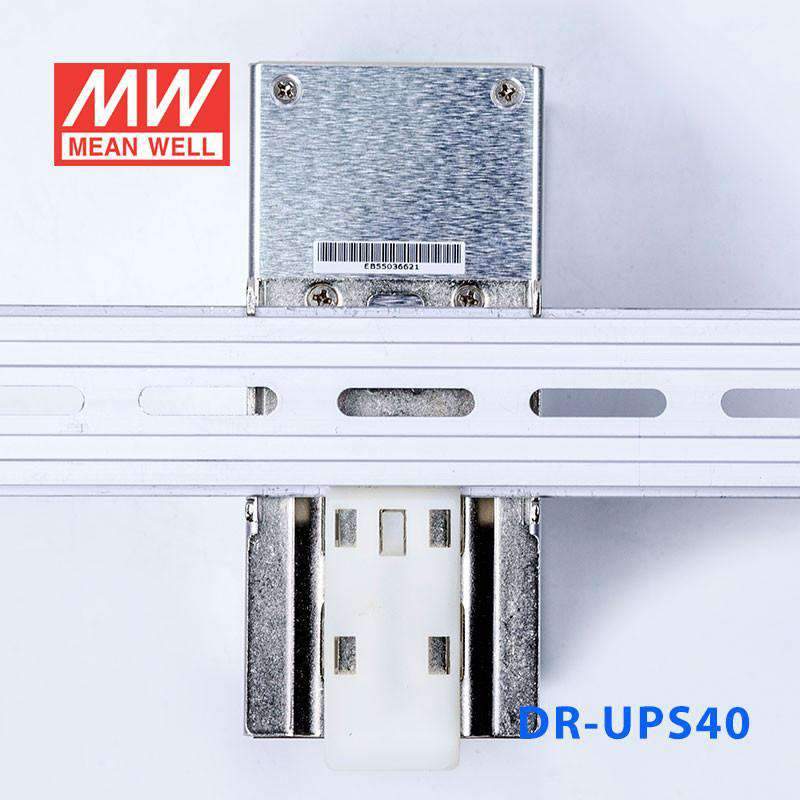

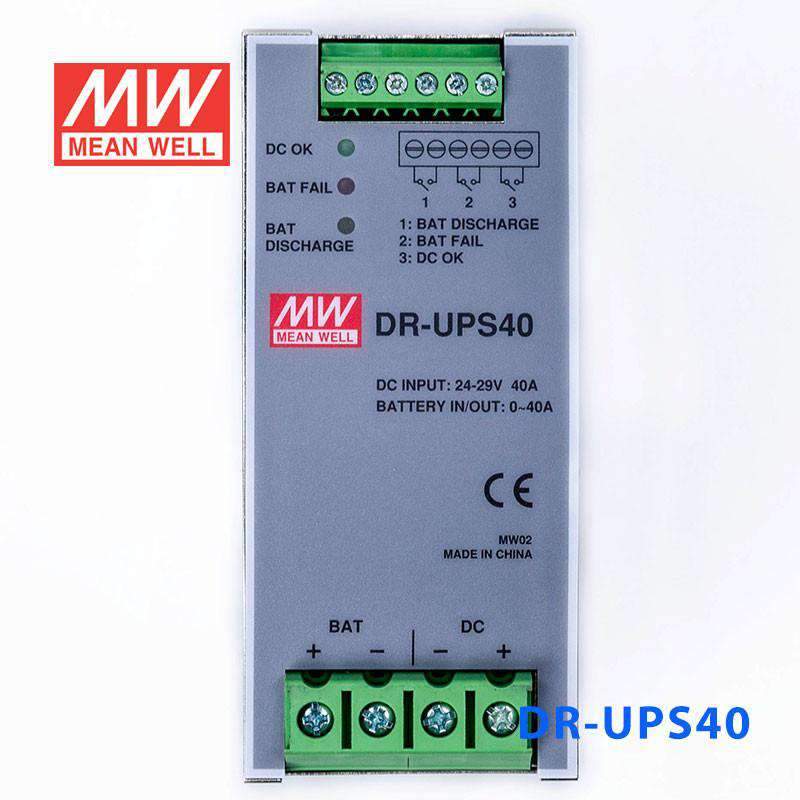

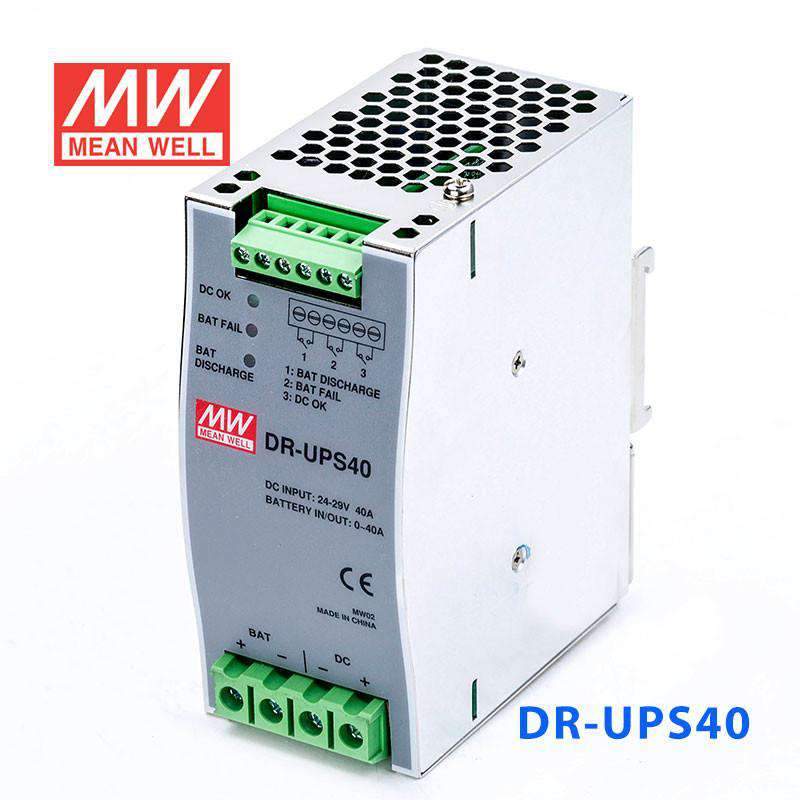

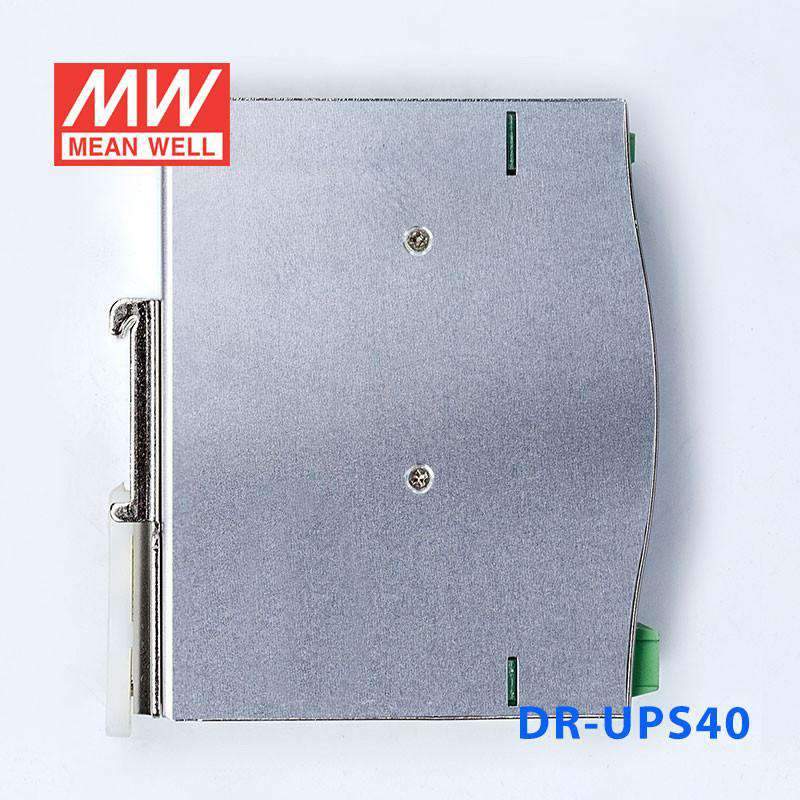

Mean Well DR-UPS40 DC UPS Module Power 40A Supply - DIN Rail


|

Description

Features

Battery controller for DIN rail UPS system
Parallel connected to DC BUS
Suitable for 24V system up to 40A
Installed on DIN Rail TS35 / 7.5 or 15
Built-in battery test function
Battery polarity protection
Relay contact signal output and LED indicator for DC BUS OK, Battery Fail, and Battery Discharge
Cooling by free air convection
3 years warranty

General Specification

DC input / DC bus 24~29V, 40A max.
Battery input voltage 21~29V
Battery input Current 0~40A
Charge current (typ.) 2A
External battery (typ.) 24V, 4AH / 7AH / 12AH
DC bus ok Relay status : Short when DC voltage between 21~29V(±3%), relay contacts LED(Green) : DC bus OK : light; DC bus fail : dark
Battery fail Relay status : Short when battery failure is observed through the battery test function, relay contacts LED(Red) : Battery over-discharge warning or battery broken: light; Battery OK: dark
Battery discharge Relay status : Short when battery in discharge condition, relay contacts LED(Yellow) : Battery discharging: light; Battery is not discharging or discharging current <2A: dark
Working temperature -20~+70°C
EMC standards EN55022 class B, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 2 poles, O/P: 2 poles screw DIN terminal, Single output: 6 poles
Dimension (LxWxH) 55.5x 125.2x 100 mm
CASE 923D

Specifications

  • Brand
    Mean Well
  • Series
    DR-UPS
  • Power Rating
    960 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    24V~29V
  • Standards Met
    CE,EAC
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    12.52 cm
  • Width
    10 cm
  • Height
    5.55 cm
  • Weight
    0.55 kg
