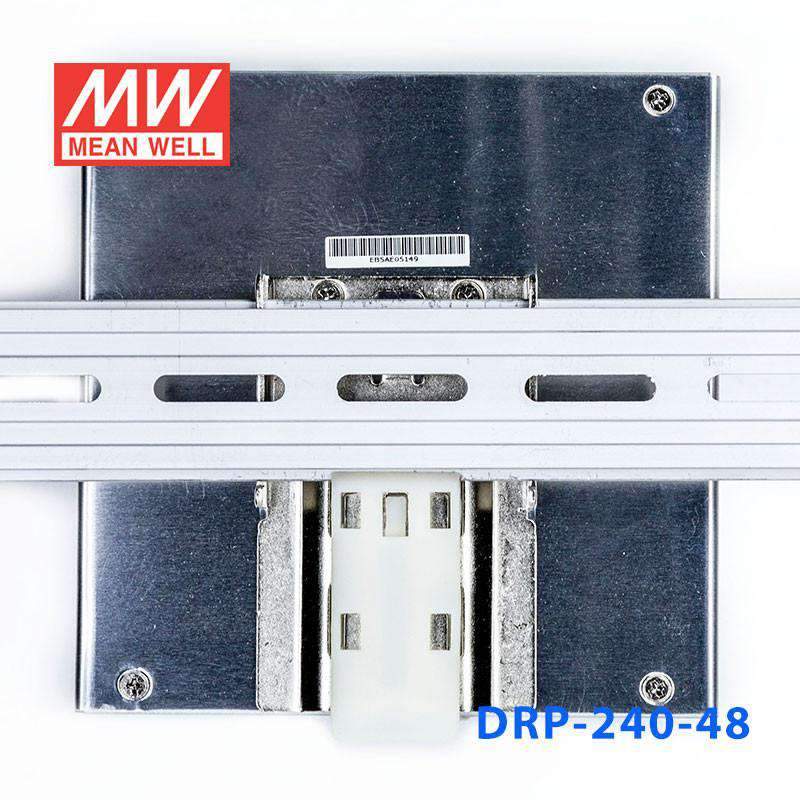

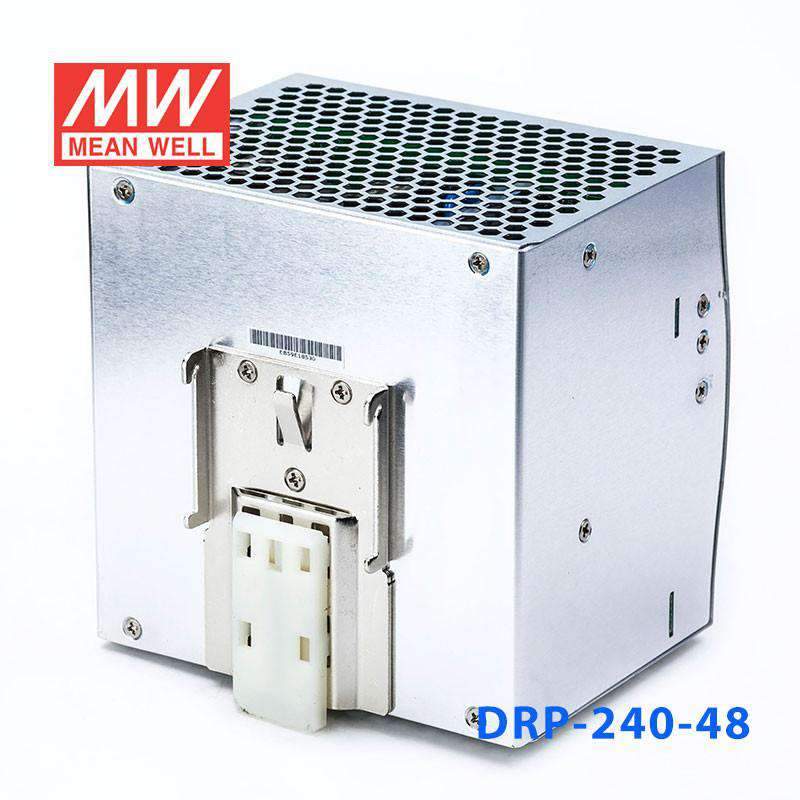

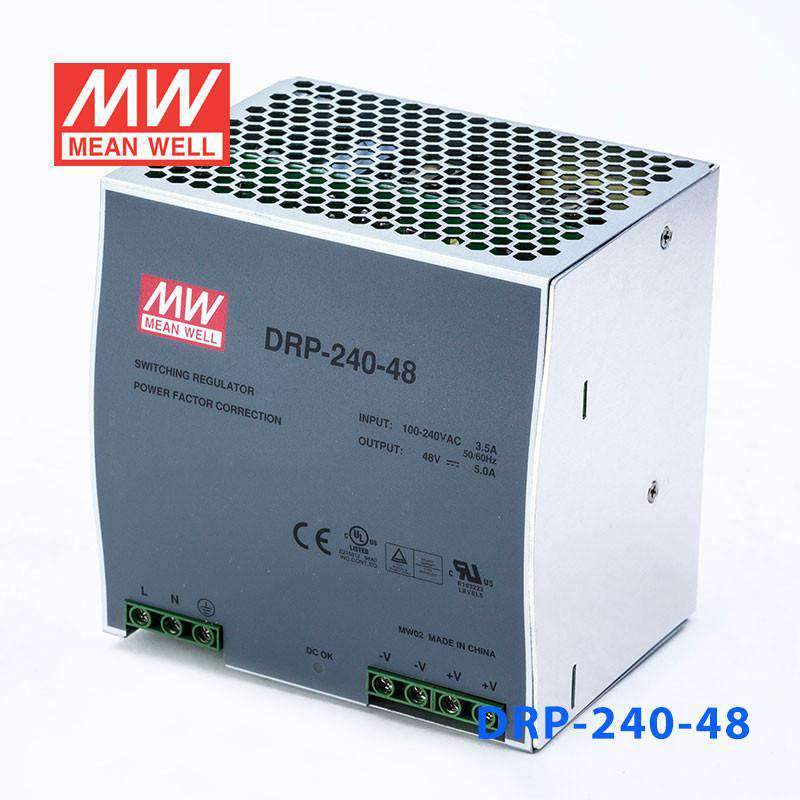

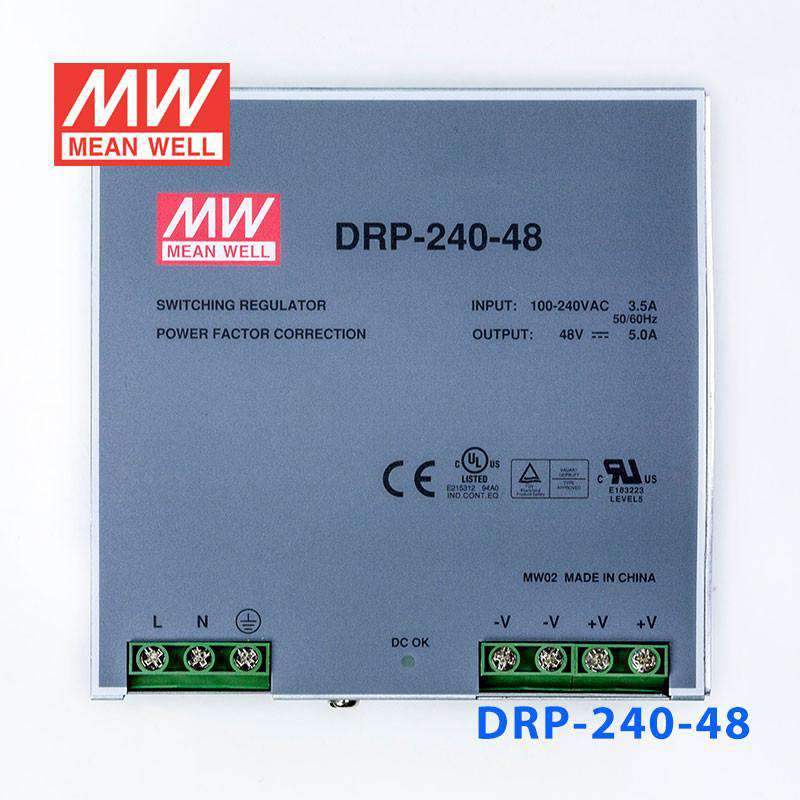

Mean Well DRP-240-48 AC-DC Industrial DIN rail power supply 240W

240W, 48V, No DIM

|

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS35 / 7.5 or 15
UL508 (industrial control equipment) listed
100% full load burn-in test
LED indicator for power on
Built-in active PFC function
3 years warranty

General Specification

AC input voltage range 85~264VAC
AC inrush current (230VAC) 45A
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~53V%
Overload protection 105%~150% constant current limiting, auto-recovery
Over voltage protection Range 30~36V for 24V model, 54~60V for 48V model
Over voltage protection Type Shut off, AC recycle to re-start
Over temp. protection Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -10~+70°C
Safety standards UL508, TUV EN60950-1, UL60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 125.5x125.2x100
Case No. 922A
Packing 12pcs / 15.5kg

Specifications

  • Brand
    Mean Well
  • Series
    DRP Series
  • Power Rating
    240 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operating Temperature
    -10°C~70°C
  • Warranty
    3 Year
  • Length
    12.55 cm
  • Width
    12.52 cm
  • Height
    10 cm
  • Weight
    1.2 kg
