Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

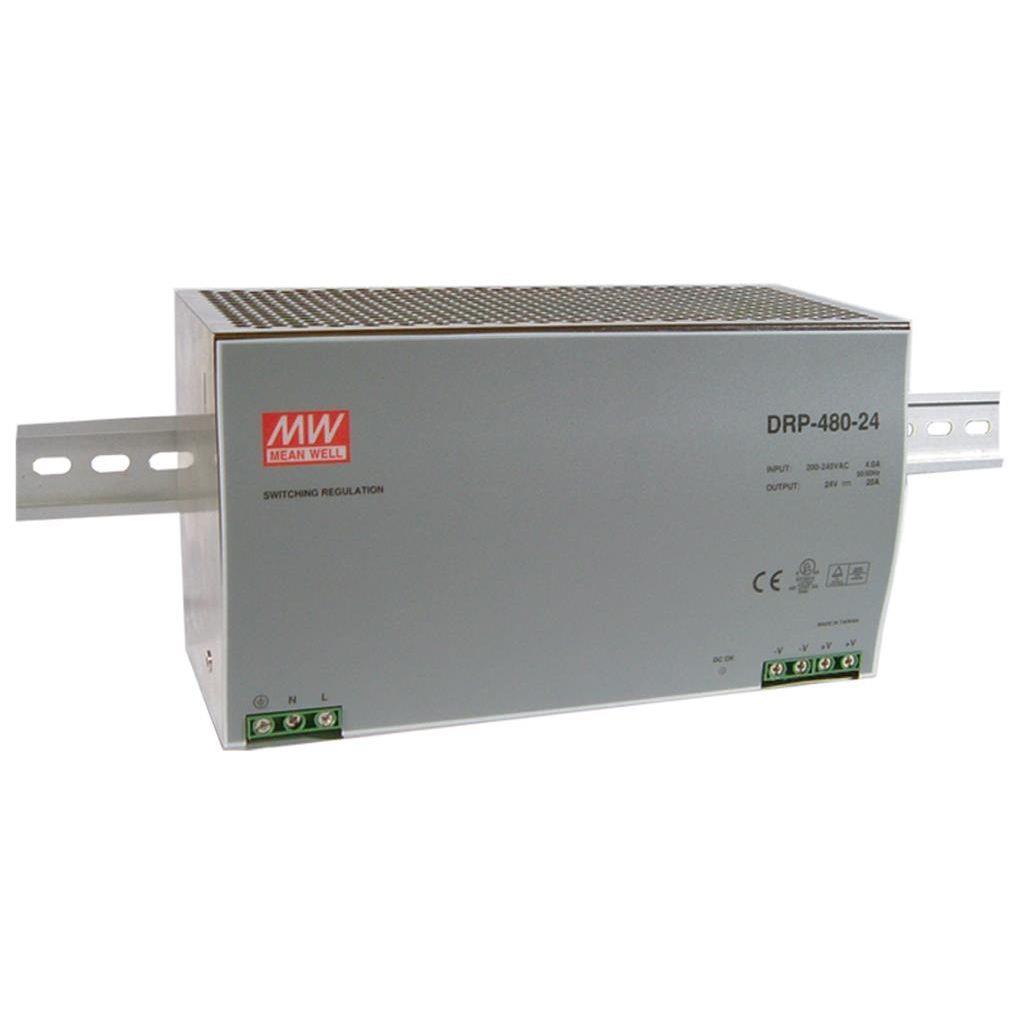

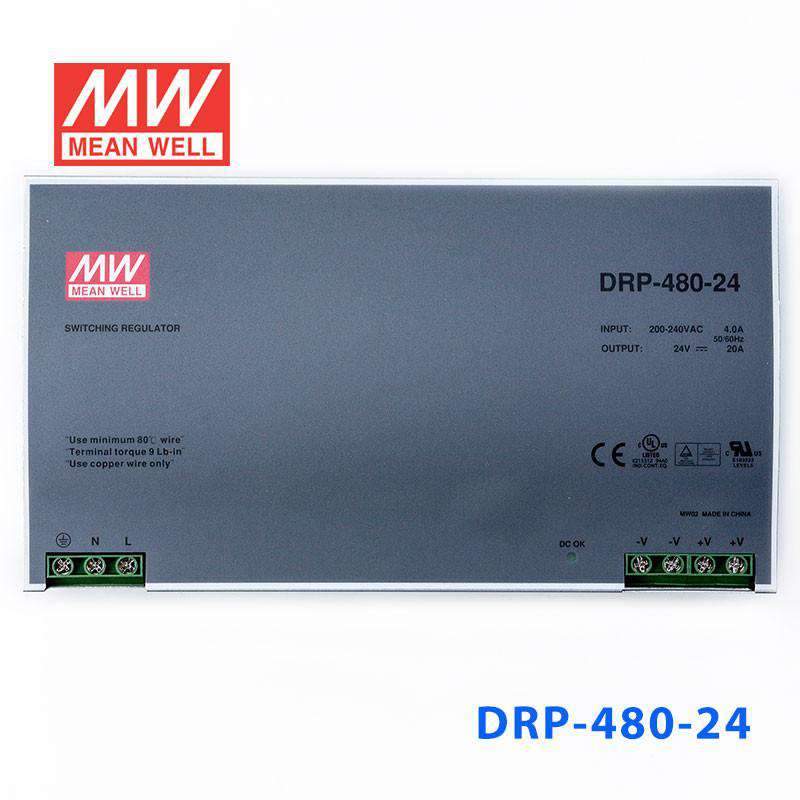

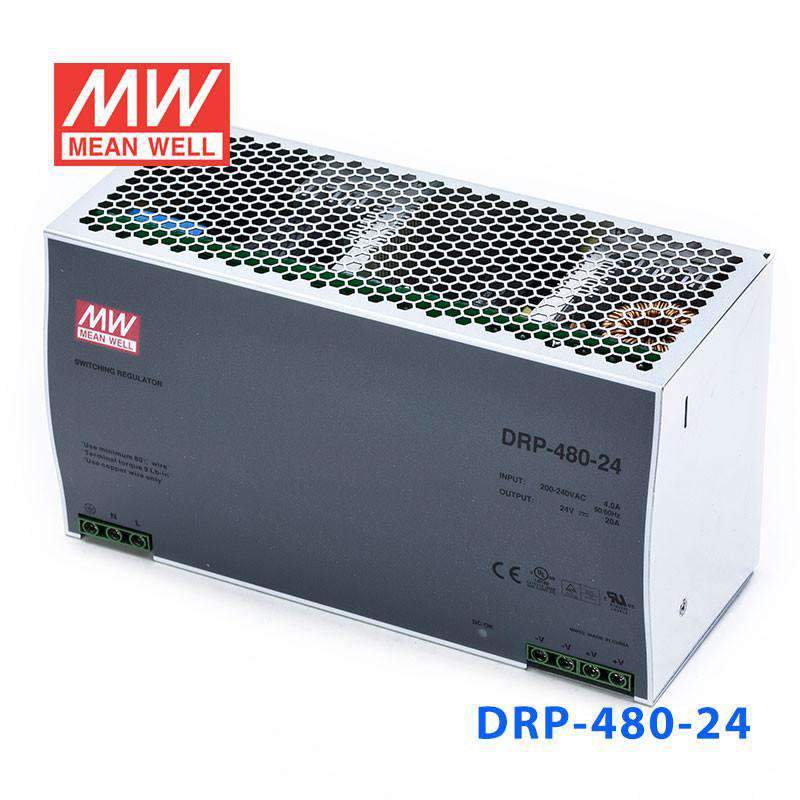

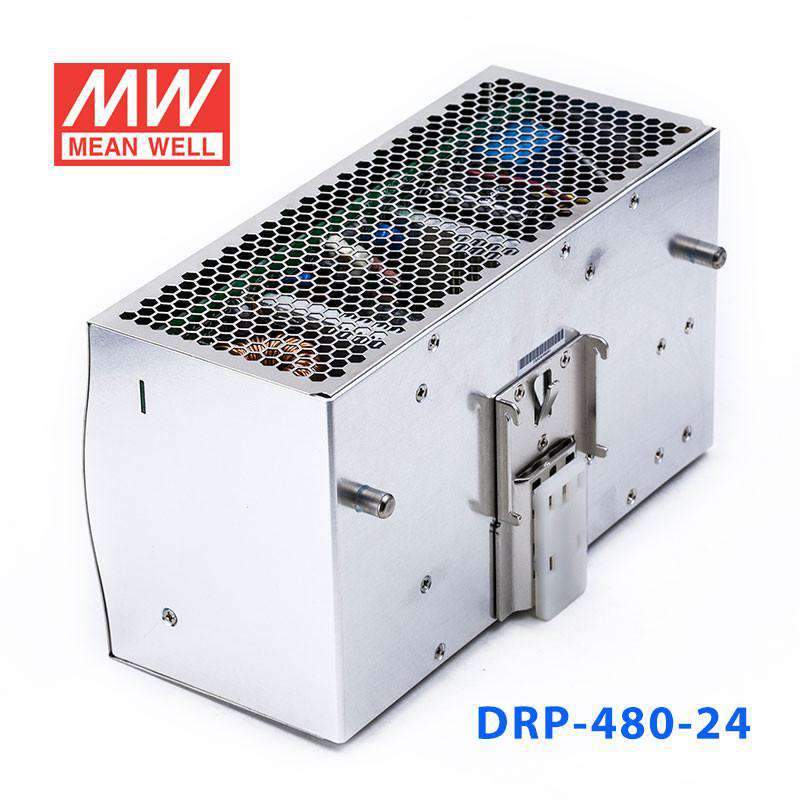

Mean Well DRP-480-24 AC-DC Industrial DIN rail power supply 480W
Log in to see priceFeatures
| AC input 180~264VAC only |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

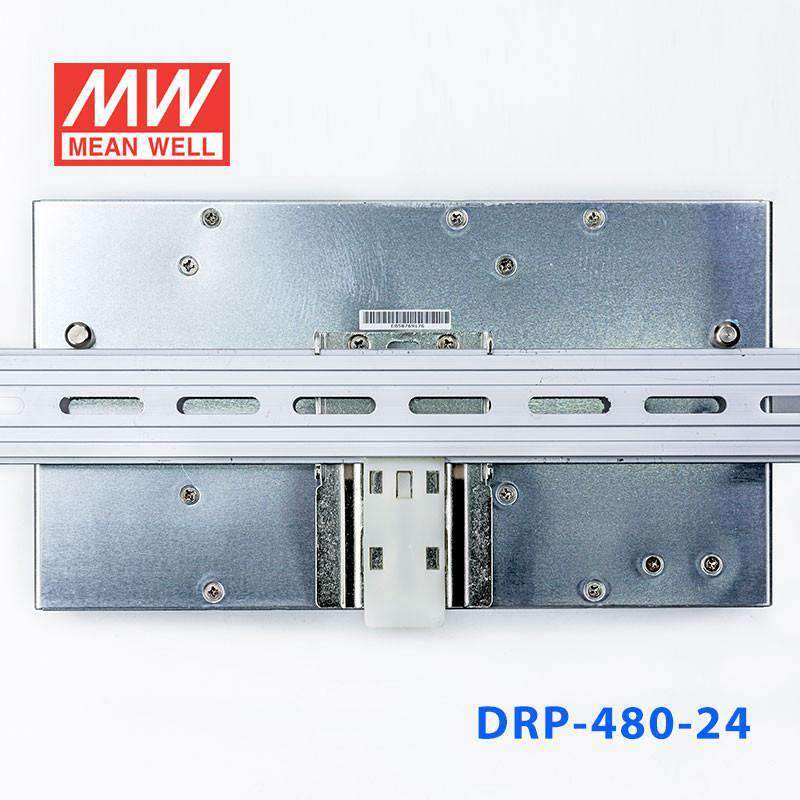

| Can be installed on DIN rail TS35 / 7.5 or 15 |
| UL508 (industrial control equipment) listed |
| 100% full load burn-in test |
| LED indicator for power on |
| Built-in passive PFC function compliance to EN61000-3-2 |
| 3 years warranty |
General Specification
| AC input voltage range | 180~264VAC |
| AC inrush current (230VAC) | 40A |
| DC adjustment range | 12V: 12~14V, 24V: 24~28V, 48V: 48~53V% |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over voltage protection Range | 30~36V for 24V model, 54~60V for 48V model |
| Over voltage protection Type | Shut off, AC recycle to re-start |
| Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Safety standards | UL508, TUV EN60950-1, UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 227x125.2x100 |
| Case No. | 930 |
| Packing | 6pcs / 15.0kg |
-
BrandMean Well
-
SeriesDRP Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length22.7 cm
-
Width12.52 cm
-
Height10 cm
-
Weight2.4 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DRP-480 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well DRP-480-48 AC-DC Industrial DIN rail power supply 480W | 480W | 48V | 10A | — | View |
