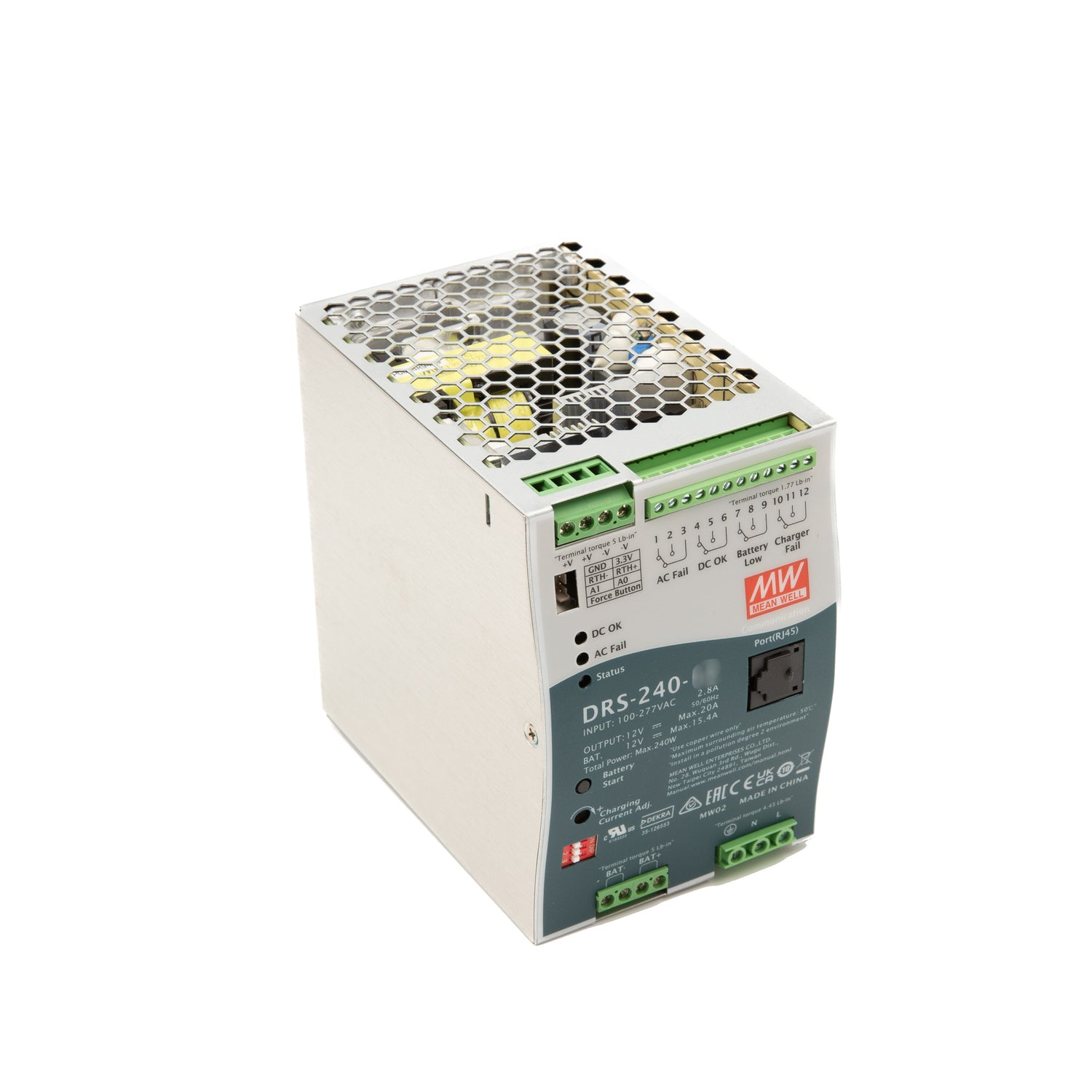

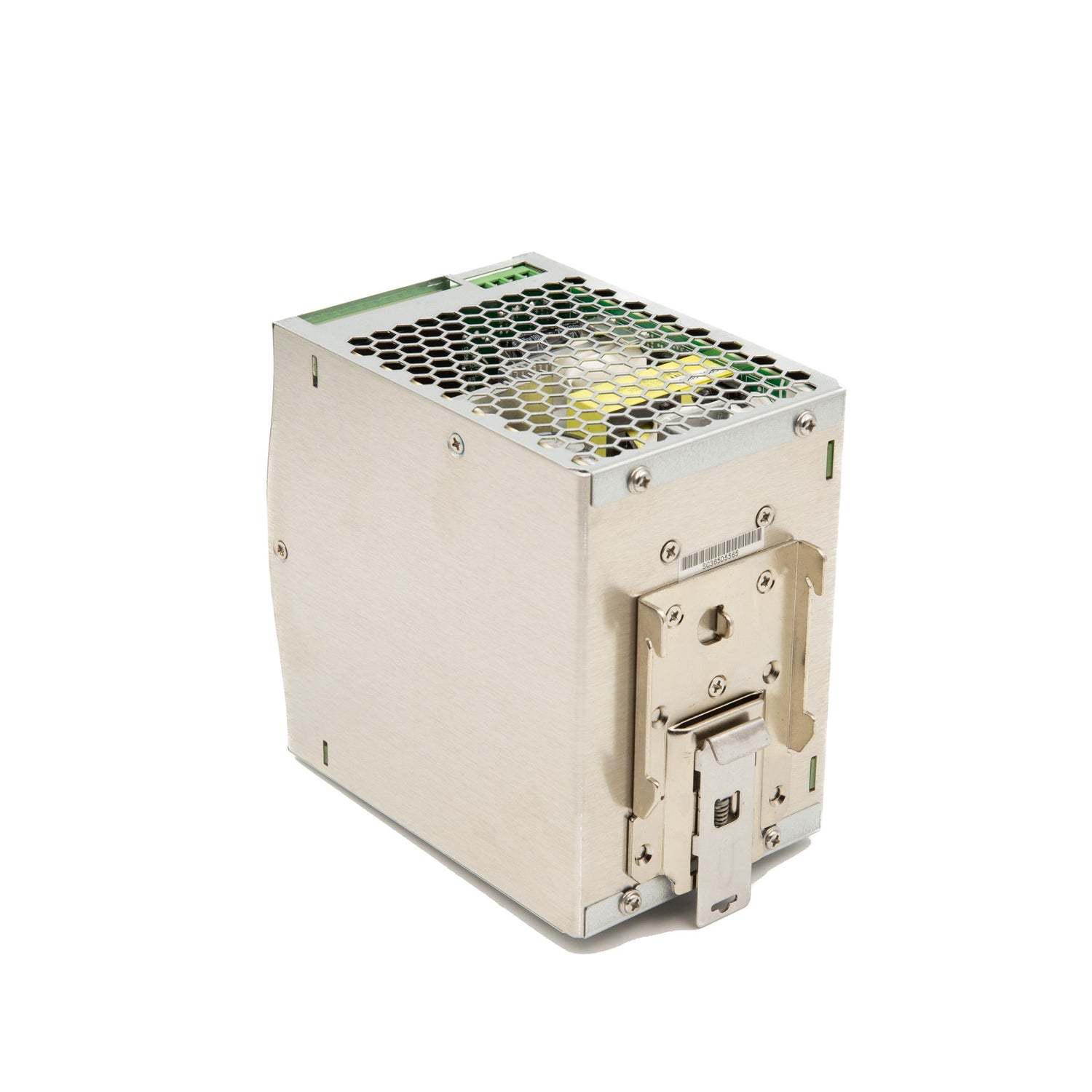

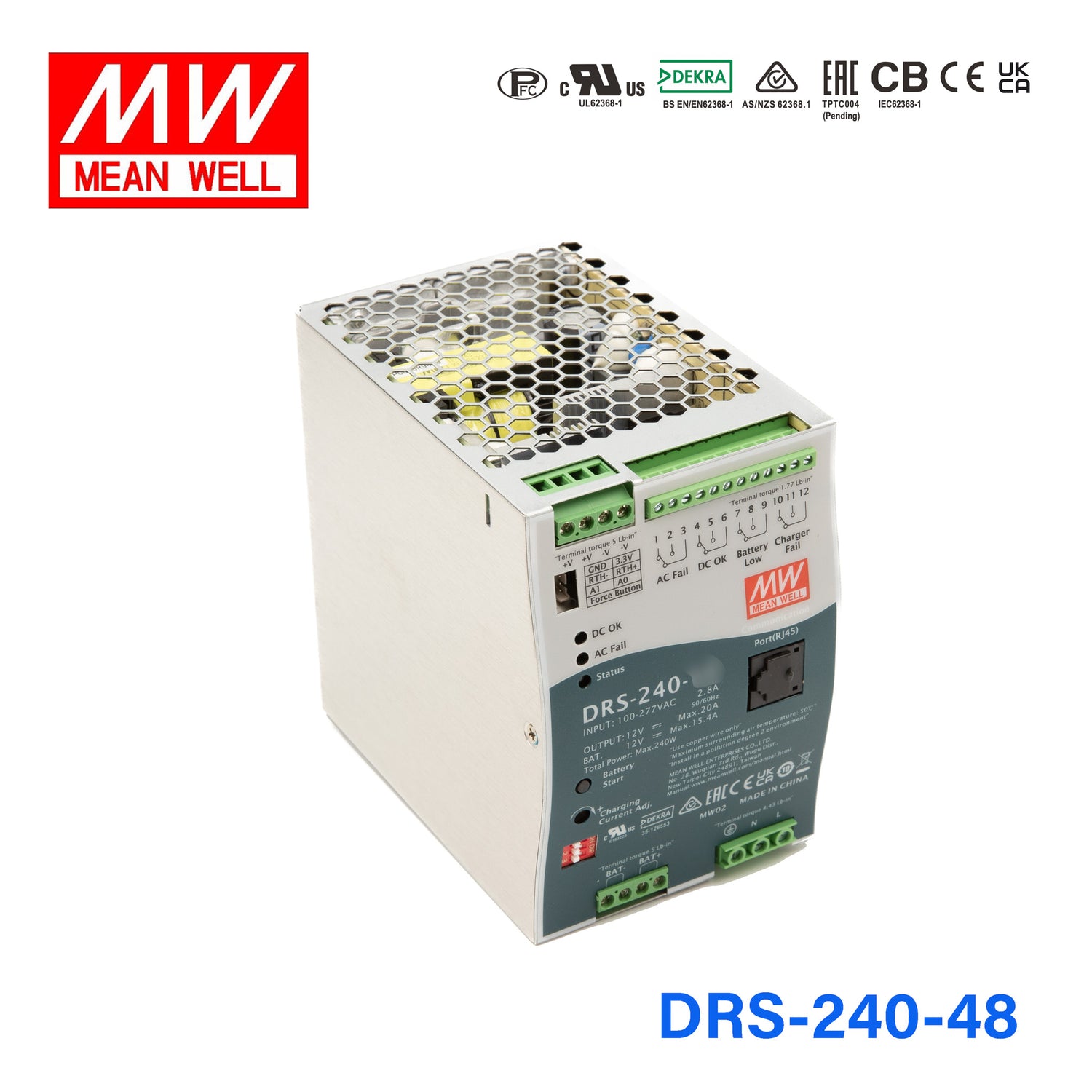

Mean Well DRS-240-48 All-In-One Intelligent Security Power 240W

all-in-one function with power supply, DC-UPS, battery charger and status monitoring in one compact unit, charging curve can be set with SBP-001

|

Description

Features

Universal input 90~305VAC(277VAC available)
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarm design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus Protocol, CANBus optional
Protections: Short circuit/Overload/Over voltage/Over temperature(auto derating)/Battery reverse polarity/Battery cut off
Cooling by free air convection
Charging curve can be set with SBP-001
2 or 3-stage selectable by DIP S.W
20~100% charging current adjustable by VR
Suitable for lead acid and lithium-ion batteries
3 years warranty

General Specification

AC input voltage range 90~305VAC; 127~431VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
Adjustment charging current 20%~100% charging current adjustable by VR
Overload protection 105%~135% rated output power
Over voltage protection 135%~155% rated output voltage
Setup, rise, hold up time 2400ms, 1000ms, 16ms at 230VAC
Withstand voltage I/P-O/P:4kVAC, I/P-FG:2kVAC, O/P-F-G:1.5kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, RCM AS/NZS 62368.1 approved
EMC standards EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 85.5x125.2x129.2
Packing 8pcs / 12.5kg

Specifications

  • Brand
    Mean Well
  • Series
    DRS Series
  • Power Rating
    240 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    3.85 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
  • Warranty
    3 Year
  • Length
    8.55 cm
  • Width
    12.52 cm
  • Height
    12.92 cm
  • Weight
    1.19 kg
