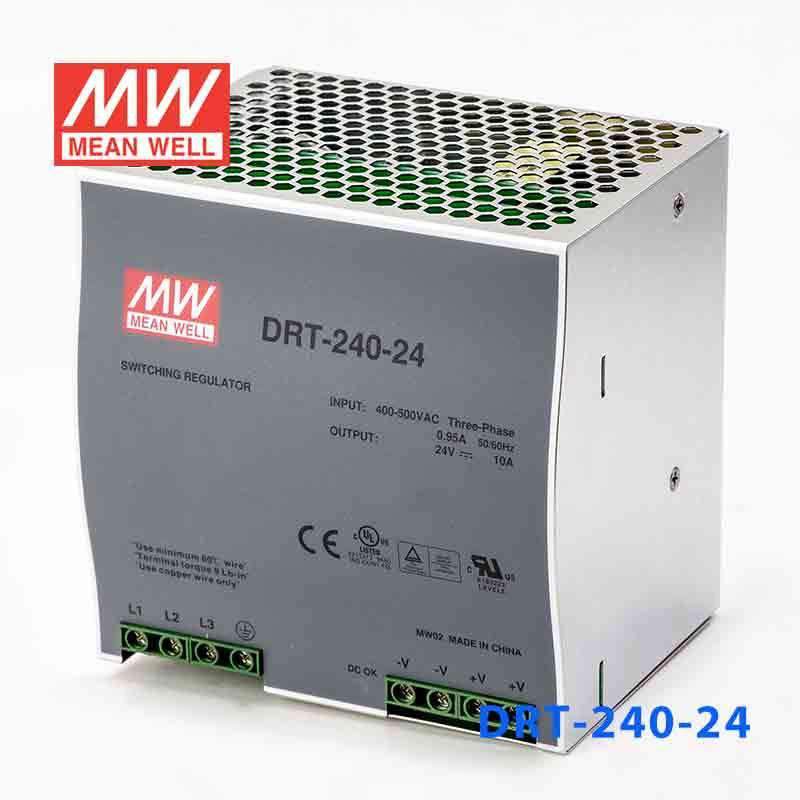

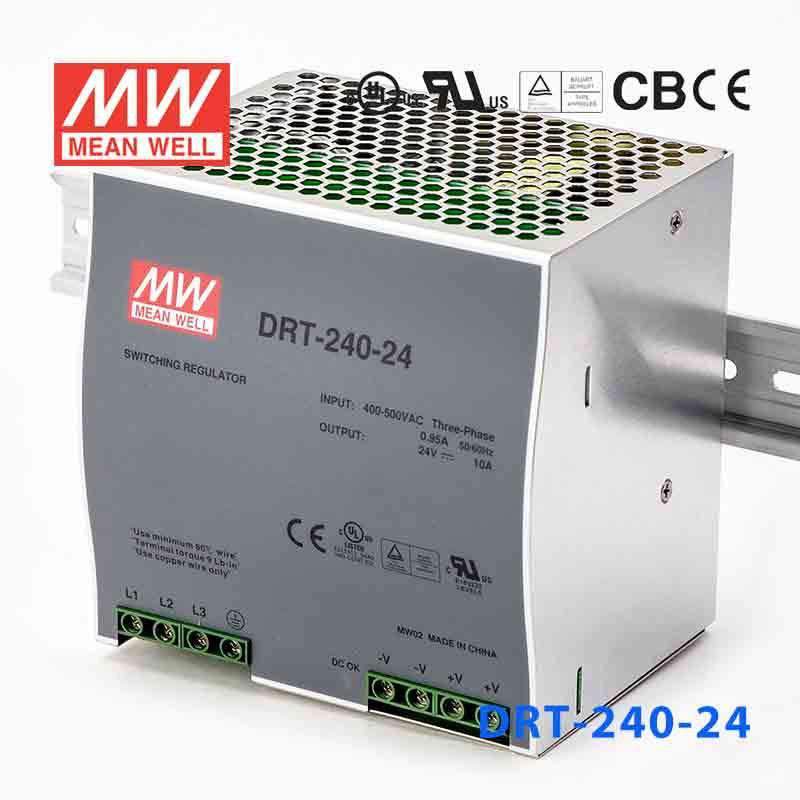

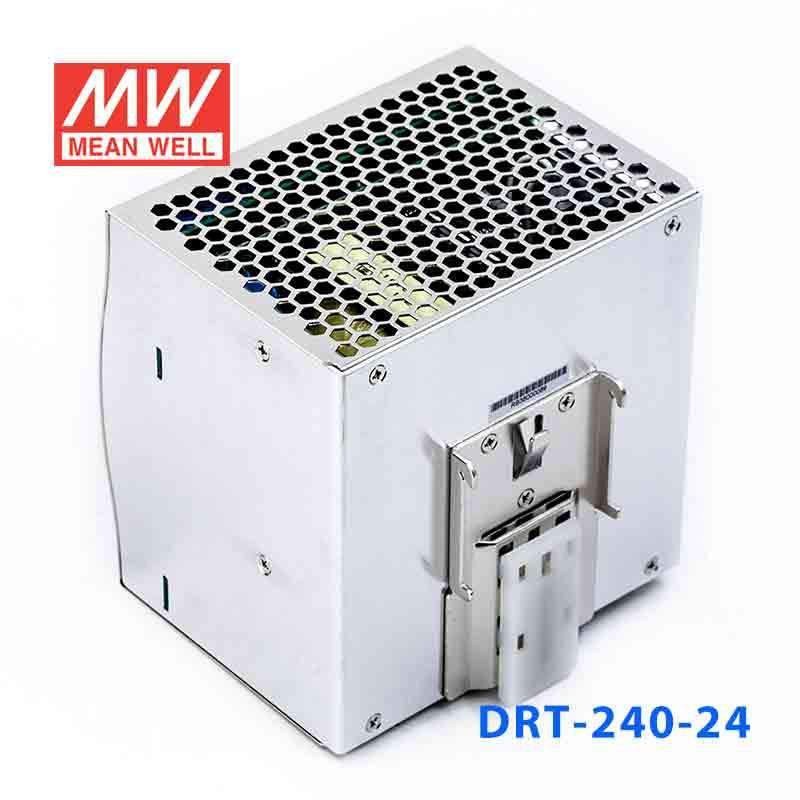

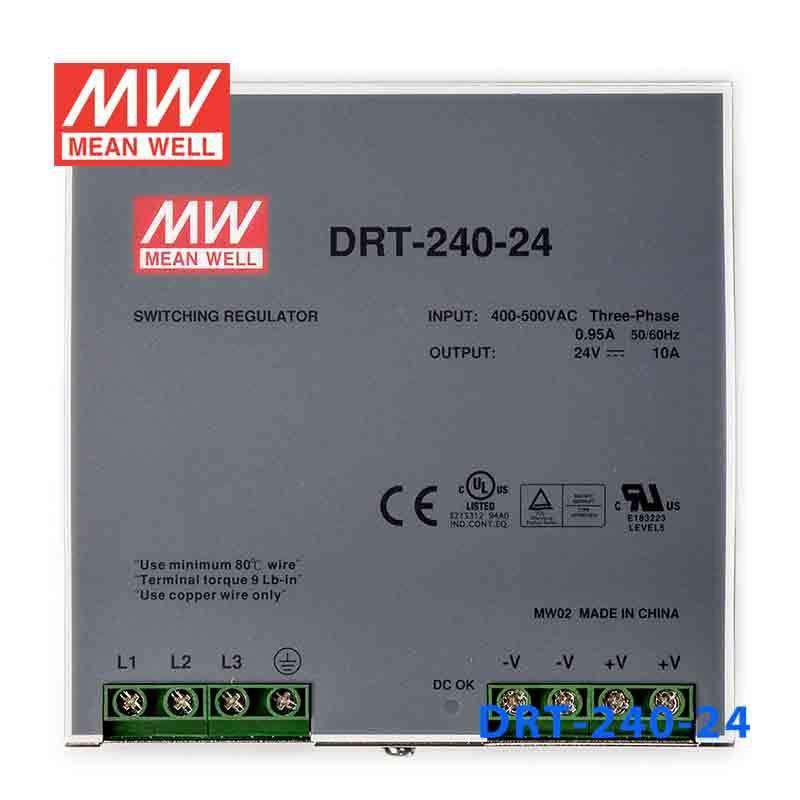

Mean Well DRT-240-24 Three Phase Industrial Power Supply 240W 24V - DIN Rail


|

Description

"

MEAN WELL DRT-240 series DIN Rail Power Supply are 240W Single output Industrial DIN Rail Power Supply with high efficiency, long life, and high reliability.

Features

  • Three-Phase AC 340 ~ 550V wide range input
  • High efficiency 89% and low dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit

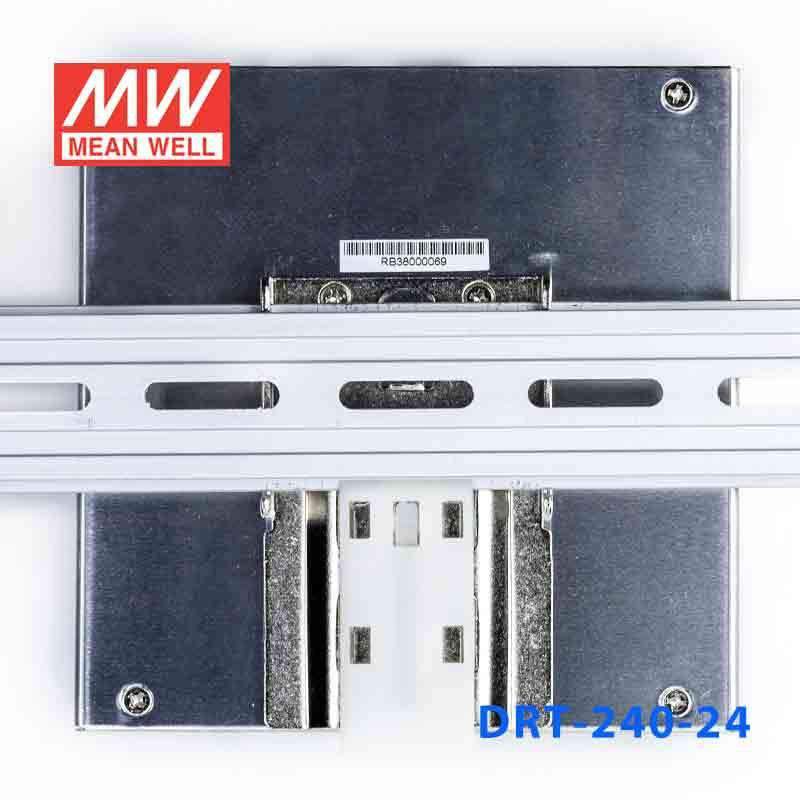

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Fixed switching frequency at 70KHz
  • 3 years warranty
"

Specifications

  • Brand
    Mean Well
  • Series
    DRT Series
  • Power Rating
    240 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    340V~550V
  • Standards Met
    CB,CE,cUL,EAC,TUV,UL
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    12.55 cm
  • Width
    12.52 cm
  • Height
    10 cm
  • Weight
    1.3 kg

File Downloads

::specification::
