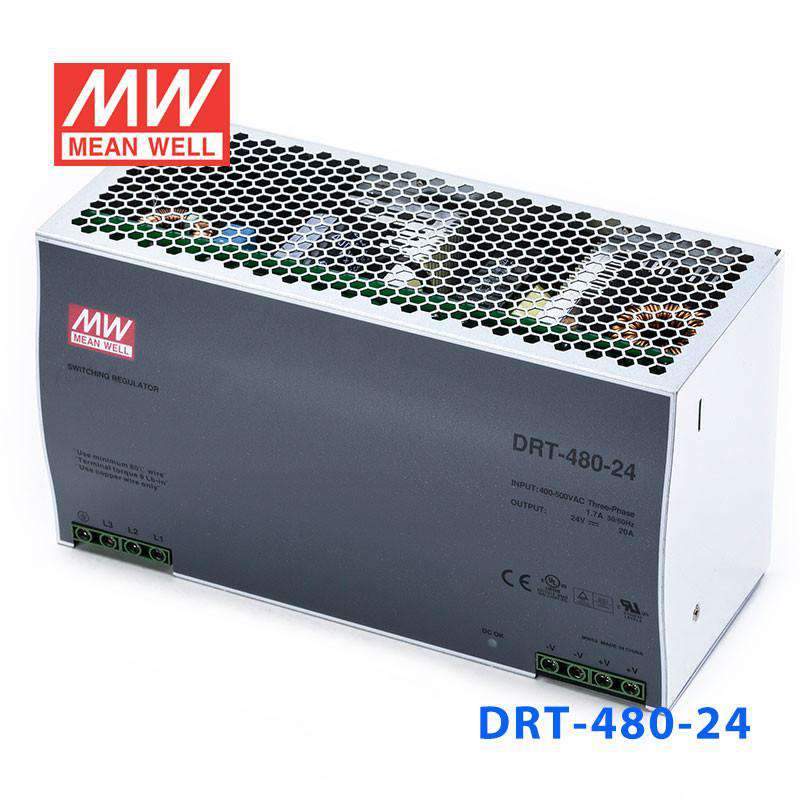

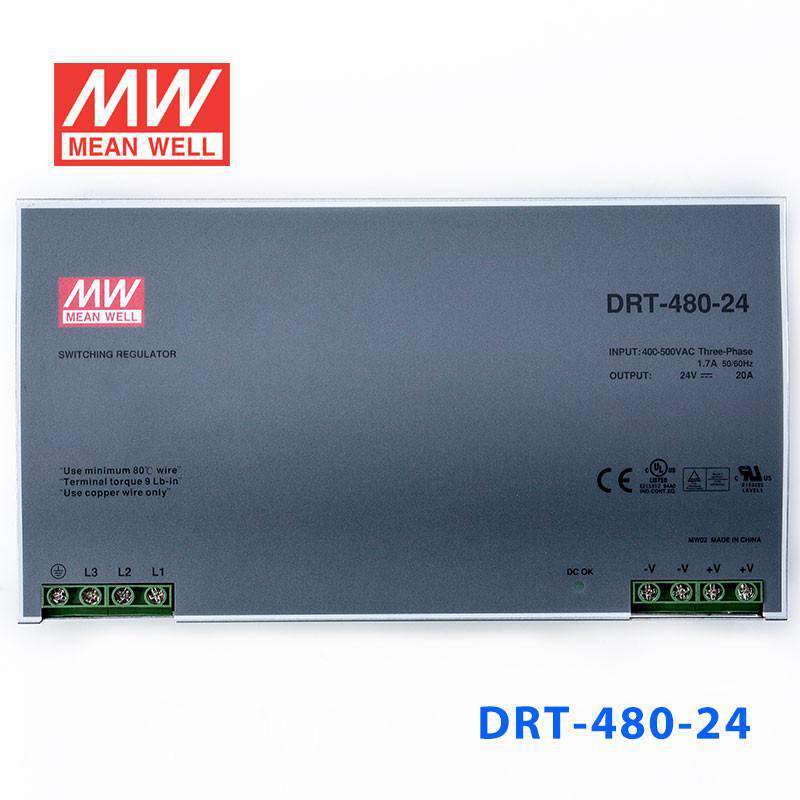

Mean Well DRT-480-24 Three Phase Industrial Power Supply 480W 24V -...
Please Login for Pricing
Description
Description
MEAN WELL DRT-480 series DIN Rail Power Supply are 480W Single output Industrial DIN Rail Power Supply with high efficiency, long life, and high reliability.
Features
- Three-Phase AC 340 ~ 550V wide range input
- High efficiency 89% and low dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit

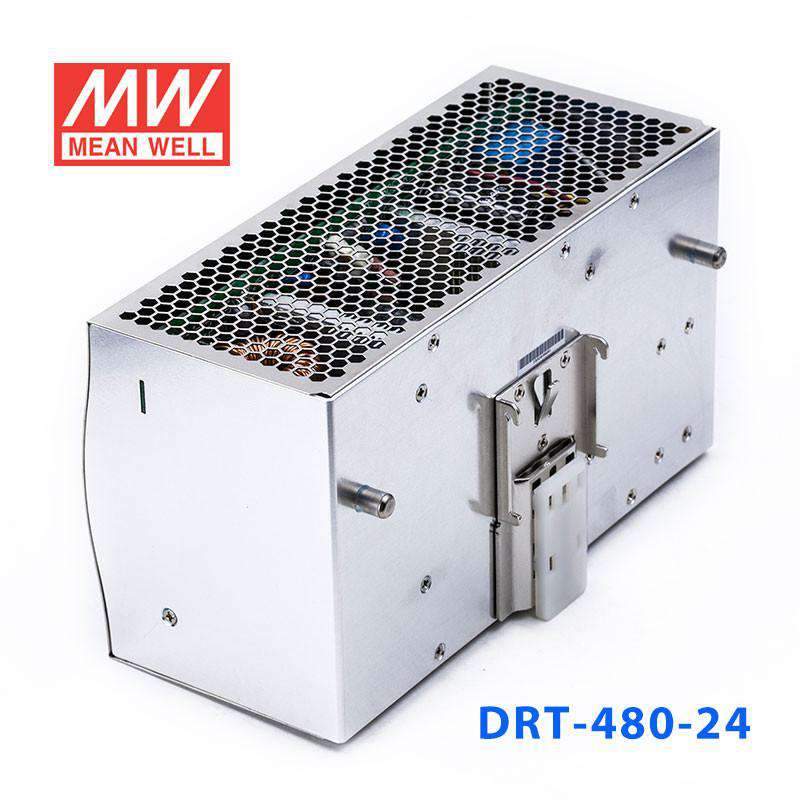

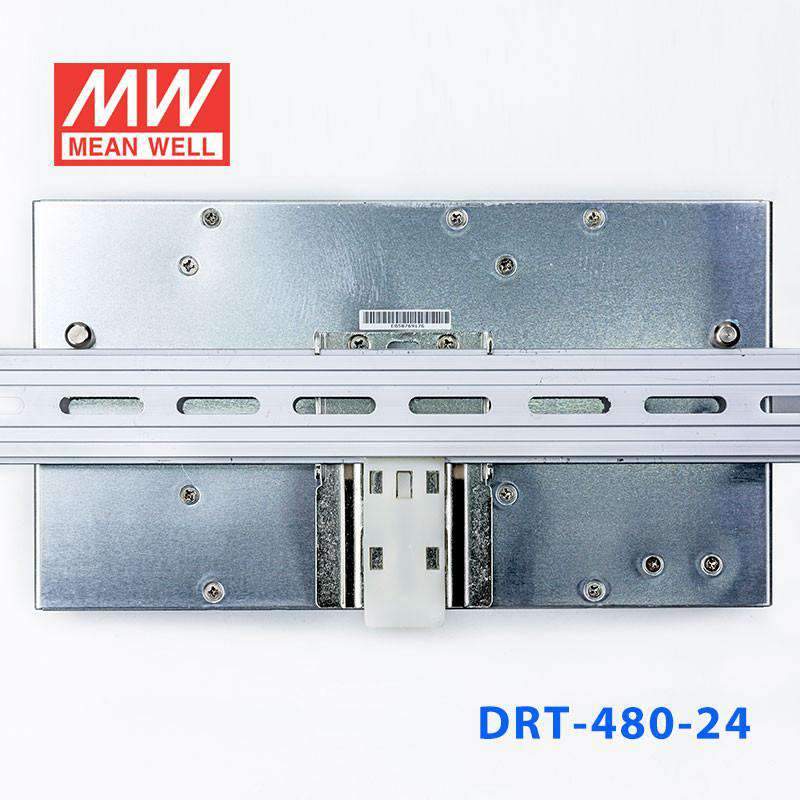

- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Fixed switching frequency at 70KHz
- 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDRT Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage340V~550V
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length22.7 cm
-
Width12.52 cm
-
Height10 cm
-
Weight2.5 kg
