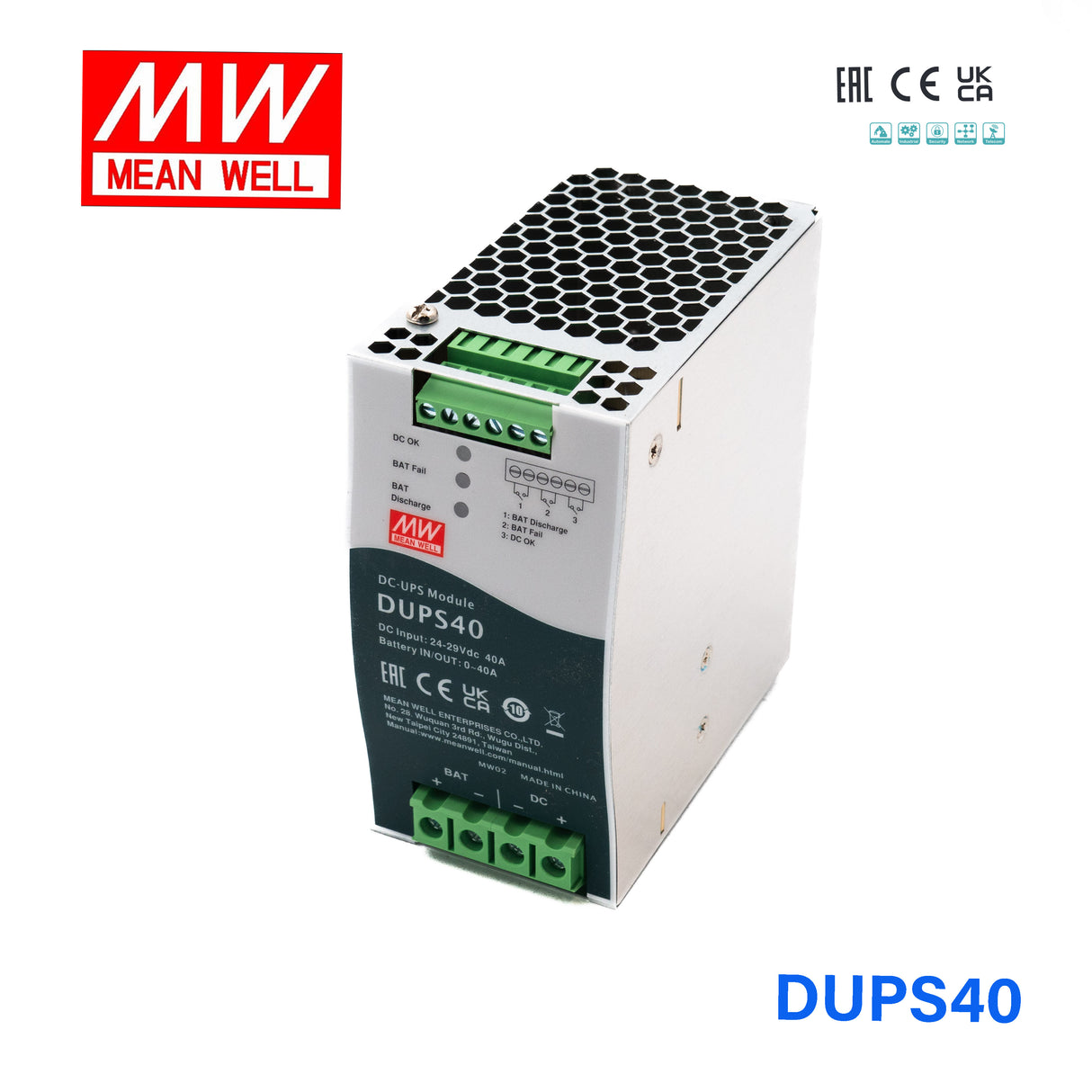

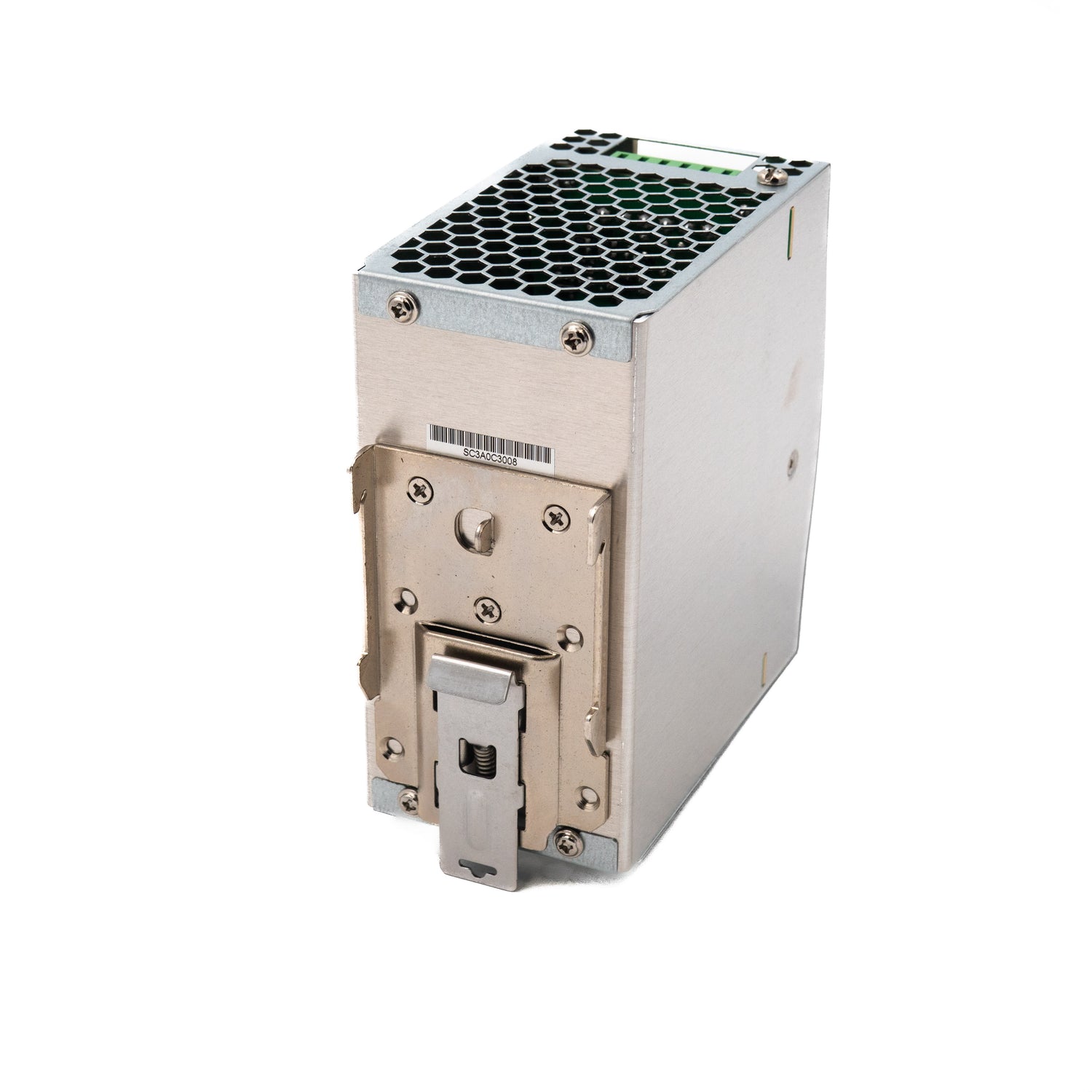

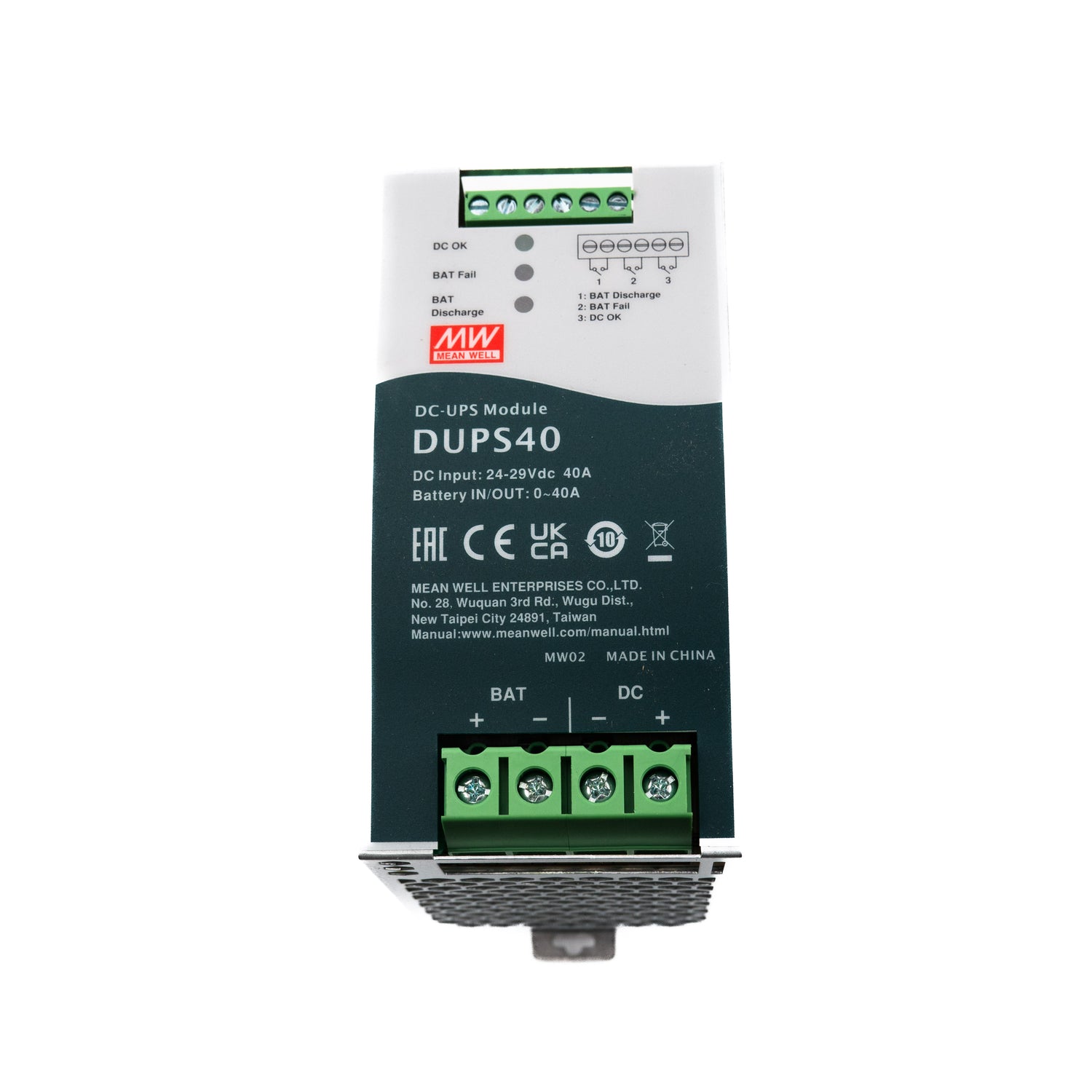

Mean Well DUPS40 DIN Series Uninterruptible DC-UPS Module 40A

uninterruptible DC-UPS controller, slim size, 40mm width, suitable for 24V system

|

Description

The DUPS40 is a 40A DIN rail type DC-UPS module, and it is paired with a power supply and an external battery to achieve the backup function. When the AC mains fails or is interrupted, the load will be immediately connected to the battery pack to avoid interruption and to ensure the continuous operation of the entire system (the operating time depends on the capacity of the battery pack).The main features of DUPS40 include: fast installation, suitability for 24V battery packs and various capacities of 4AH~135AH, 2A battery charging current, low voltage disconnect for battery protection and more. The product is suitable for use in data centers, security systems, emergency lighting, wireless communication UPS, central monitoring systems, etc.

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well DC-UPS Series
  • Output Voltage
    21 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    24V~29V
  • Standards Met
    CE,EAC
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.52 cm
  • Width
    11.35 cm
  • Height
    6.3 cm
  • Weight
    0.42 kg

File Downloads

::specification::
