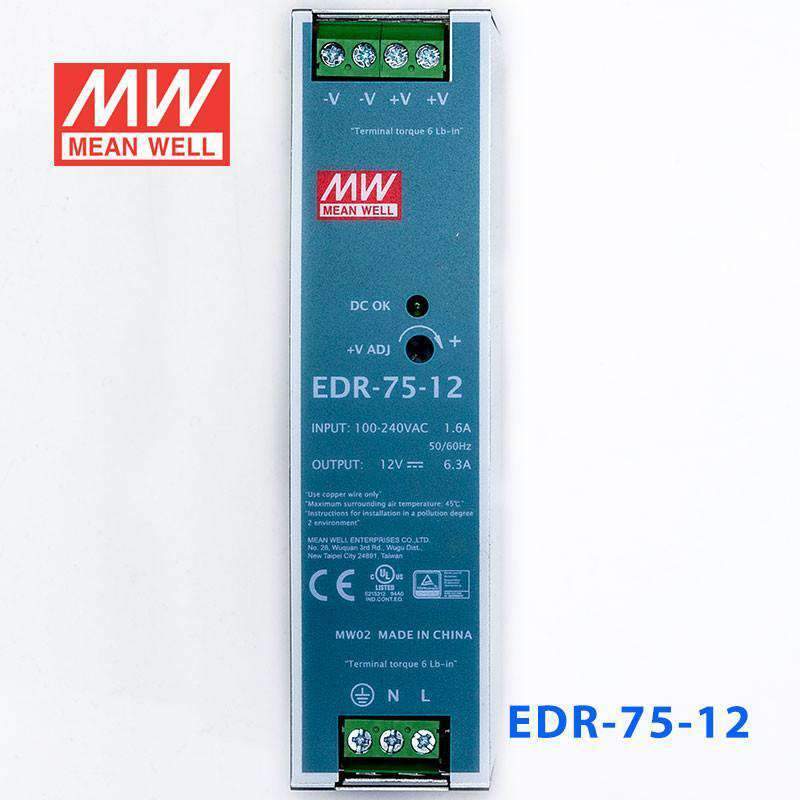

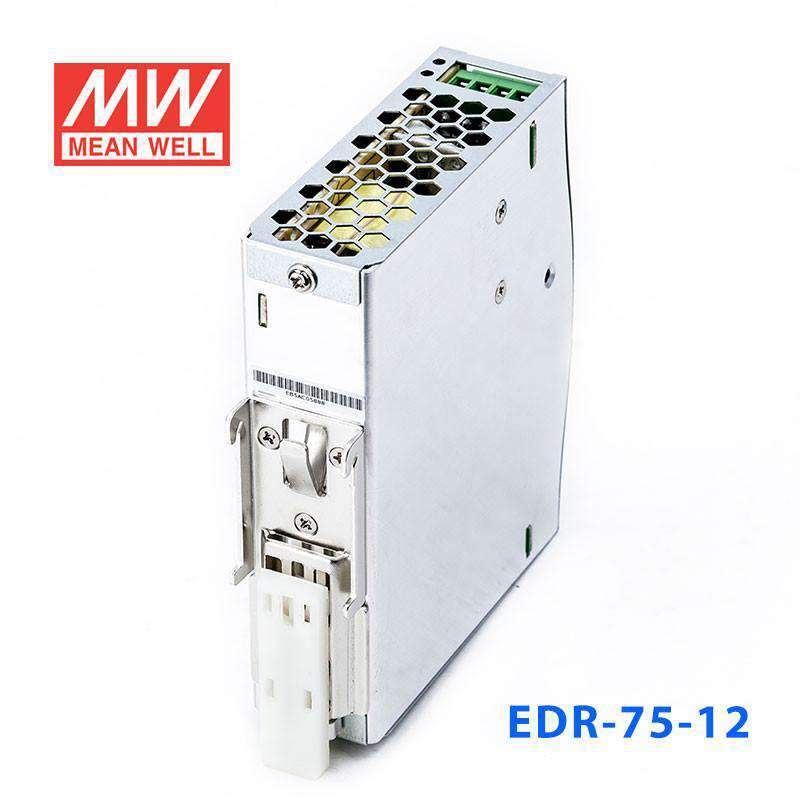

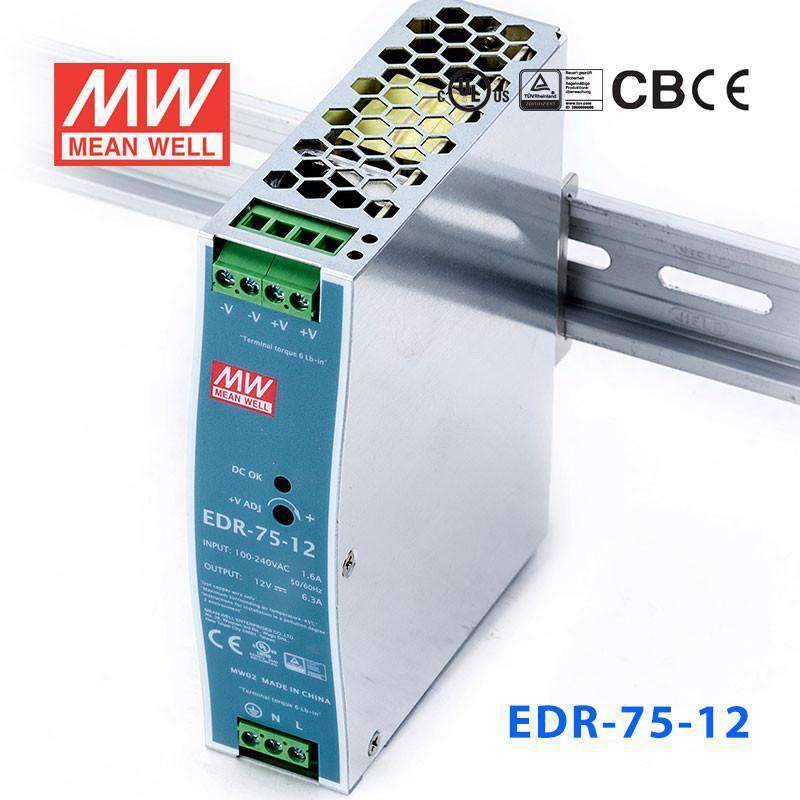

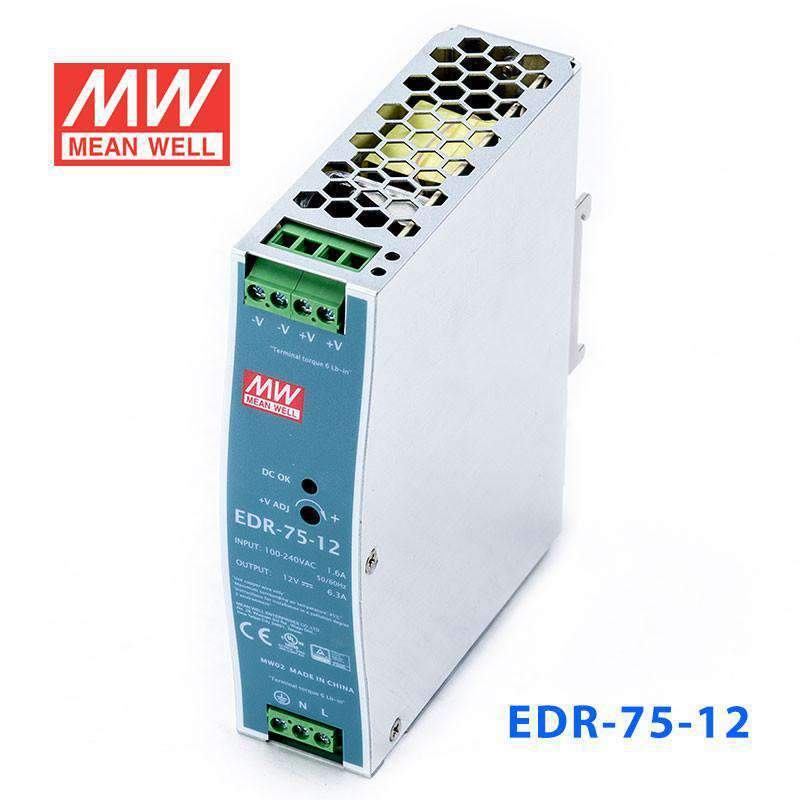

Mean Well EDR-75-12 Single Output Industrial Power Supply 75W 12V 6.3A - DIN Rail

metal caselow costslim sizewidth:32~40mmEMC EN55022 class A

SKU EDR-75-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

EDR-75-12

EDR-75-12 75W 12V Low stock

EDR-120-12 120W 12V Low stock

Product variants

In stock

Overview

EDR-75-12 is the 12V output model of this series: rated current 6.3A, rated power 75.6W, typical efficiency 85.5%.

EDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. EDR-75 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-75 a very competitive power supply solution for industrial applications.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

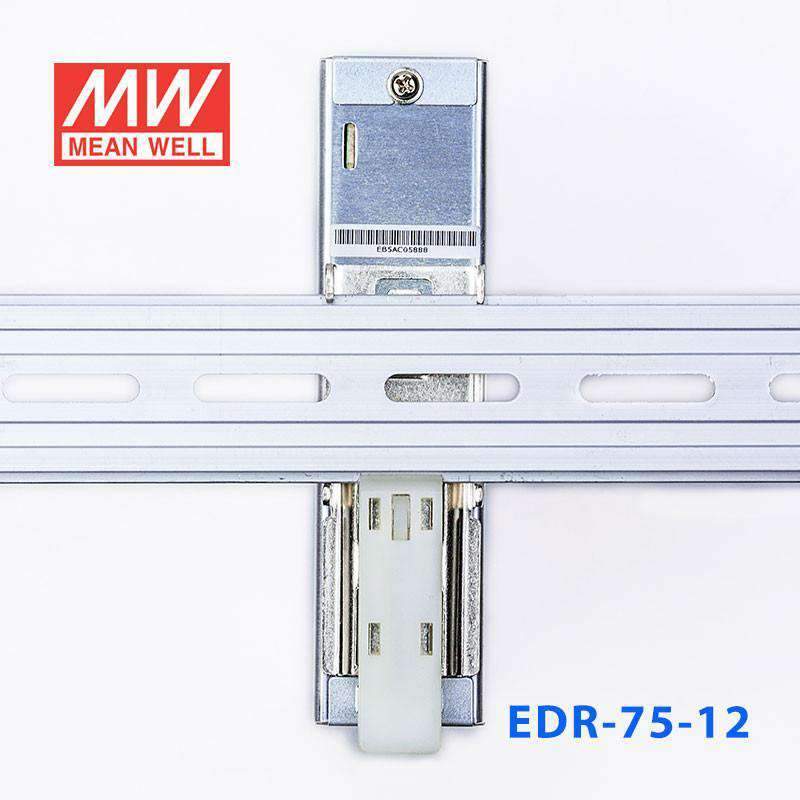

Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
2 years warranty

Specifications

EDR-75-12Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 6.3A
CURRENT RANGE: 0 ~ 6.3A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 12 ~ 14V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1200ms, 60ms/230VAC 2000ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 1.45A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 35A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1 approved;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class A
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2777.2K hrs min. Telcordia SR-332 (Bellcore) ; 506.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 32*125.2*102mm (W*H*D)
PACKING: 0.51Kg; 28pcs/15.3Kg/1.22CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

EDR-75-12 Derating Curve — Derating Curve

EDR-75-12 Mechanical Specification — Mechanical Specification

Typical applications

Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical apparatus

Downloads

Certificates4

UL Certificate (EDR-75)(EN) PDF Download

EMC Certificate (EDR-75)(EN) PDF Download

TUV Certificate (EDR-75)(EN) PDF Download

CB Certificate (EDR-75)(EN) PDF Download

Test reports1

Test Report (EDR-75-12)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the EDR-75-12 for a 12V PLC or small industrial automation control panel?

Yes, this model is intended for 12VDC systems and provides up to 75.6W with 6.3A output. Its DIN rail form factor and 32.0 mm slim width make it suitable for space-conscious PLC and industrial automation panels.

Is the EDR-75-12 a good fit for 12V building management or access control cabinets?

It can be a fit where the control cabinet uses 12VDC loads and the total demand stays within 75.6W and 6.3A. The 125.2 × 102.0 × 32.0 mm housing and DIN rail design also help when panel space is limited.

Can this 12V DIN rail power supply be used in a compact machine control enclosure?

Yes, the slim 32.0 mm profile is useful in compact enclosures where DIN rail space is tight. This unit is built as a single-output 12V industrial power supply with a -20°C to +60°C operating range (see the derating curve for reduced load at higher temperatures).

Is the EDR-75-12 suitable for use inside a control cabinet or electrical enclosure?

Yes, this product is an industrial DIN rail power supply for TS35/7.5 or TS35/15 rail, which aligns with protected control cabinet and enclosure use. The provided specifications do not list an IP rating, so it is better evaluated for enclosed indoor panel use rather than exposed locations.

How does the EDR-75-12 compare with other Mean Well EDR series models?

Within the EDR-75 series, the EDR-75-12 is 75.6W at 12V and 6.3A. The other options are the EDR-75-24 at 76.8W, 24V, 3.2A and the EDR-75-48 at 76.8W, 48V, 1.6A.
