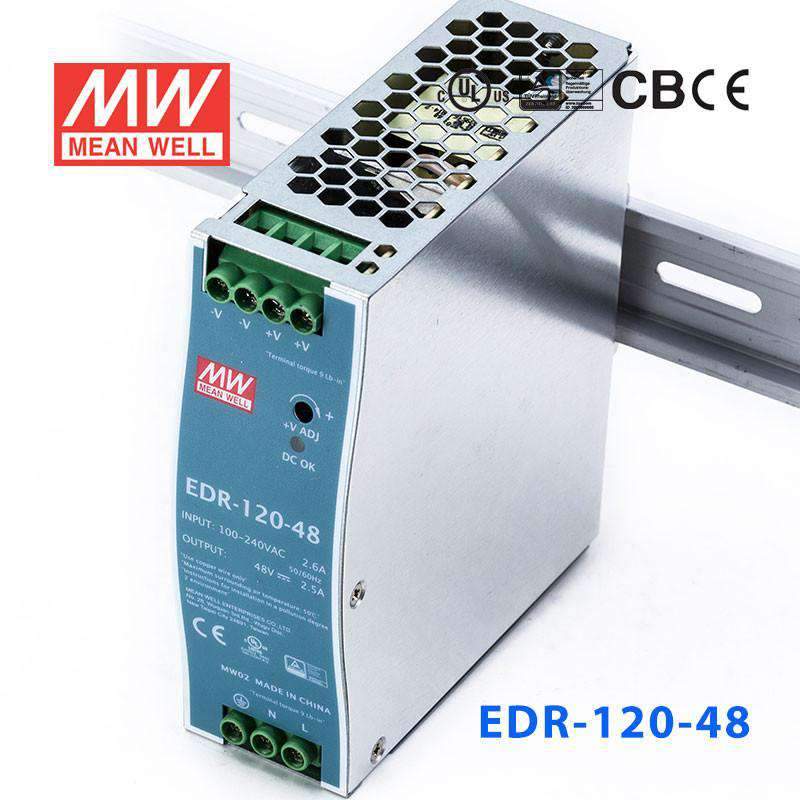

Mean Well EDR Series Power Supply 48V(75~120W)

Name: Mean Well EDR Series Power Supply 48V(75~120W)
Brand: Mean Well
SKU: EDR-120-48
Price: 86.66 NZD
Availability: InStock

SKU EDR-120-48

Log in to see price Trade pricing & online ordering for account holders

Please select a model to see the available options

Select model — 2 in this family

EDR-120-48 120W 48V Backorder

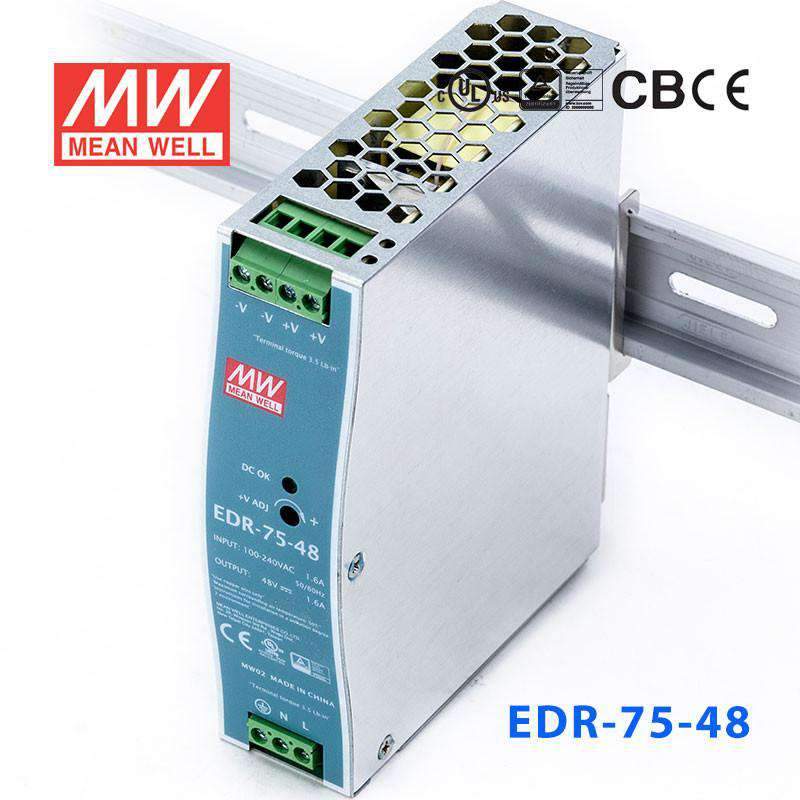

EDR-75-48 75W 48V Backorder

Product variants

Notify me when it's back in stock

The Mean Well EDR series is a highly reliable power supply range available from 75W to 120W. This listing covers the 48V output models — select your model from the options above. Typical series specifications: input range 90~264VAC, operating temperature -20~+60℃.

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -20~+60℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: UL508,TUV BS EN/EN62368-1, (meet BS EN/EN60204-1) EAC TP TC 004 ,BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8)
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":14628142350702, "variants" :[{ "context":"default", "variant_id": 45222533824811, "sku":"EDR-120-48", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" }, { "context":"default", "variant_id": 45222543786283, "sku":"EDR-75-48", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 90~264VAC

✓ DC output voltage adjustable ±10%

✓ 3KVAC reinforced I/O isolation

✓ Cooling by free air convection

✓ Wide operating temperature: -20~+60℃

✓ Protections: Short circuit / Overload / Over voltage / Over temperature

✓ Safety approvals: UL508,TUV BS EN/EN62368-1, (meet BS EN/EN60204-1) EAC TP TC 004 ,BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8)

✓ 3 years warranty
