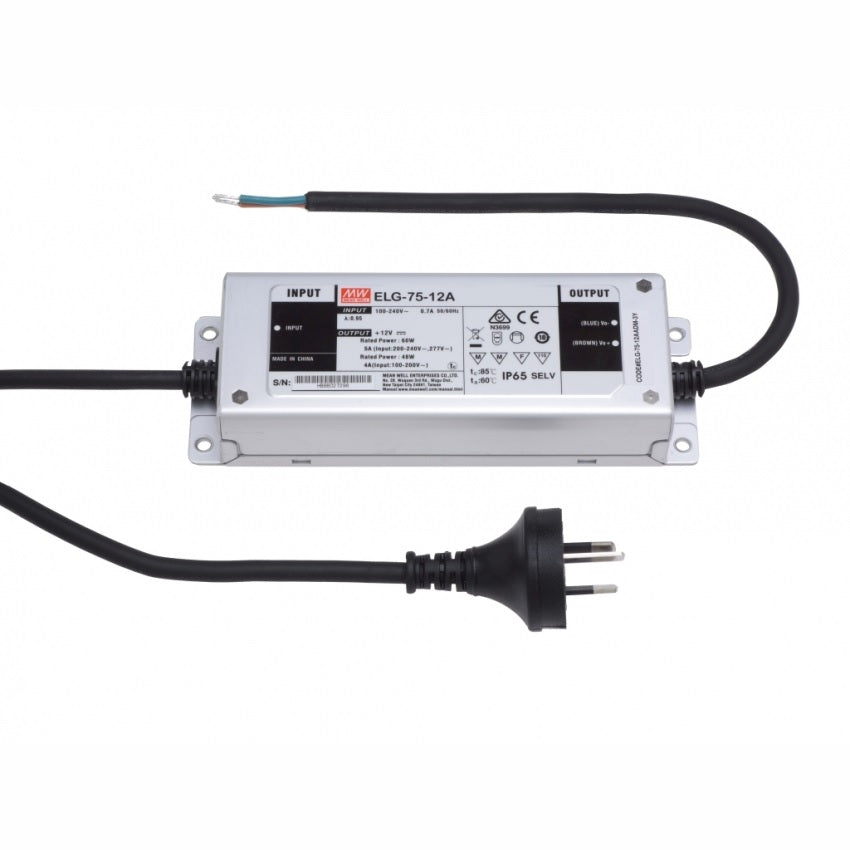

Mean Well ELG-75-12-3Y AC-DC Single output LED Driver Mix Mode (CV+...
Please Login for Pricing
Description
Description
The ELG-75-12 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length18 cm
-
Width6.3 cm
-
Height3.55 cm
-
Weight0.8 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-75-12-3Y be used to power 12V LED strip in outdoor architectural or facade lighting?
Yes. The ELG-75-12-3Y carries an IP67 waterproof rating and operates from -40°C to +90°C, making it appropriate for 12V LED strip installed in outdoor facade coves, under-eave lighting, or landscape uplighting subject to rain and temperature extremes.
How many meters of 12V LED strip can the ELG-75-12-3Y drive?
The ELG-75-12-3Y provides 75W at 12V. For a 7.2 W/m strip, that supports approximately 10.4 meters (75 ÷ 7.2); for a 10 W/m strip, up to 7.5 meters. Always confirm your strip's rated power per meter and maintain a 20% safety margin.
Is the ELG-75-12-3Y suitable for 12V LED lighting in cold-storage or refrigerated display applications?
Yes. The lower end of its operating temperature range is -40°C, which covers walk-in cooler and freezer environments. The IP67 enclosure tolerates condensation that accumulates in refrigerated spaces, making this a reliable choice for cold-chain retail or storage LED lighting.
Can the ELG-75-12-3Y power 12V LED modules in outdoor illuminated sign boxes?
Yes. At 75W and 12V with a 5A output, the ELG-75-12-3Y supports small to medium runs of 12V LED modules or strip used in illuminated sign faces and light boxes. The IP67 metal housing withstands the outdoor conditions and humidity typical of exterior signage enclosures.
What certifications does the ELG-75-12-3Y carry, and which markets does it serve?
The ELG-75-12-3Y holds BSMI, CB, CE, EAC, and UL certifications, covering North America (UL), the EU (CE), Taiwan (BSMI), and Russia/Eurasia (EAC). The CB certification supports recognition in additional national markets through the IECEE mutual recognition scheme.
Is the ELG-75-12-3Y a good fit for 12V LED strip in hospitality accent lighting applications?
Yes. The 75W output and compact 180 × 63 × 35.5 mm enclosure fit well in concealed hospitality lighting installations such as cove accents, minibar illumination, or headboard backlighting. The wide 100–305VAC input handles the voltage ranges found in international hotel installations.
