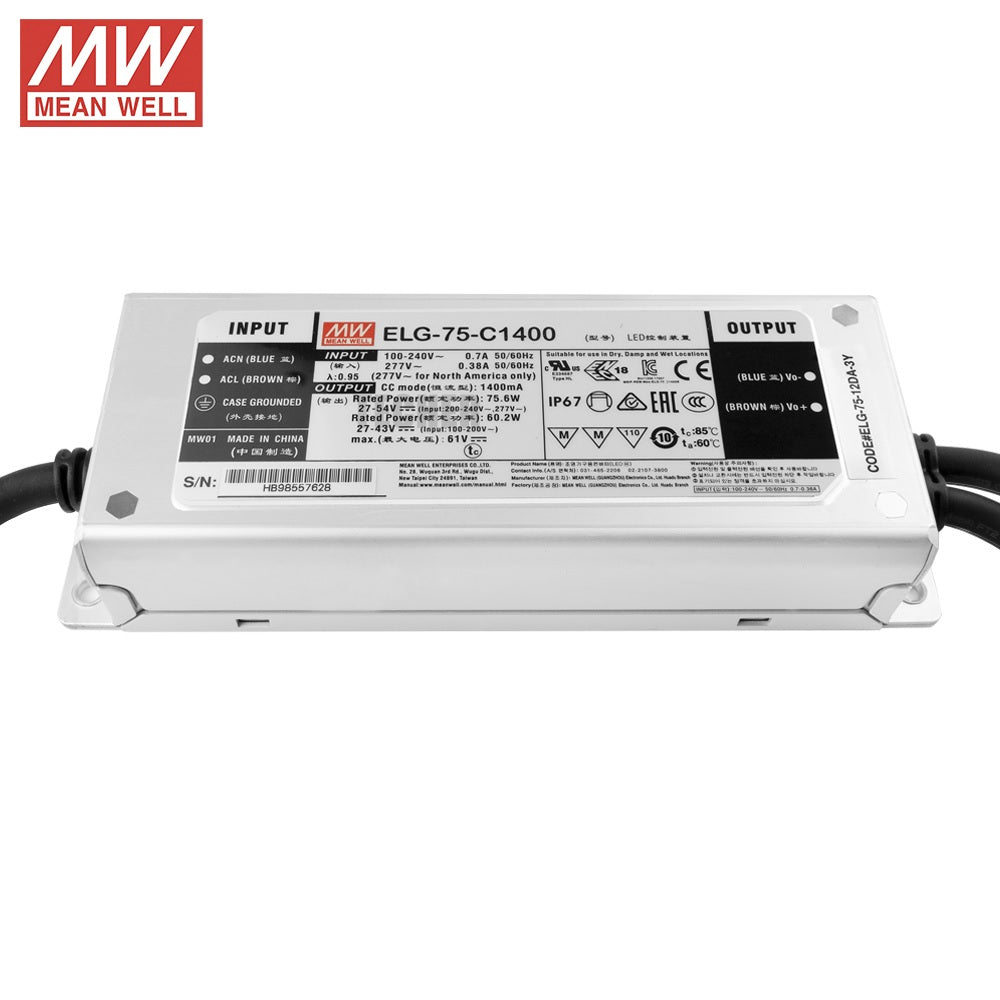

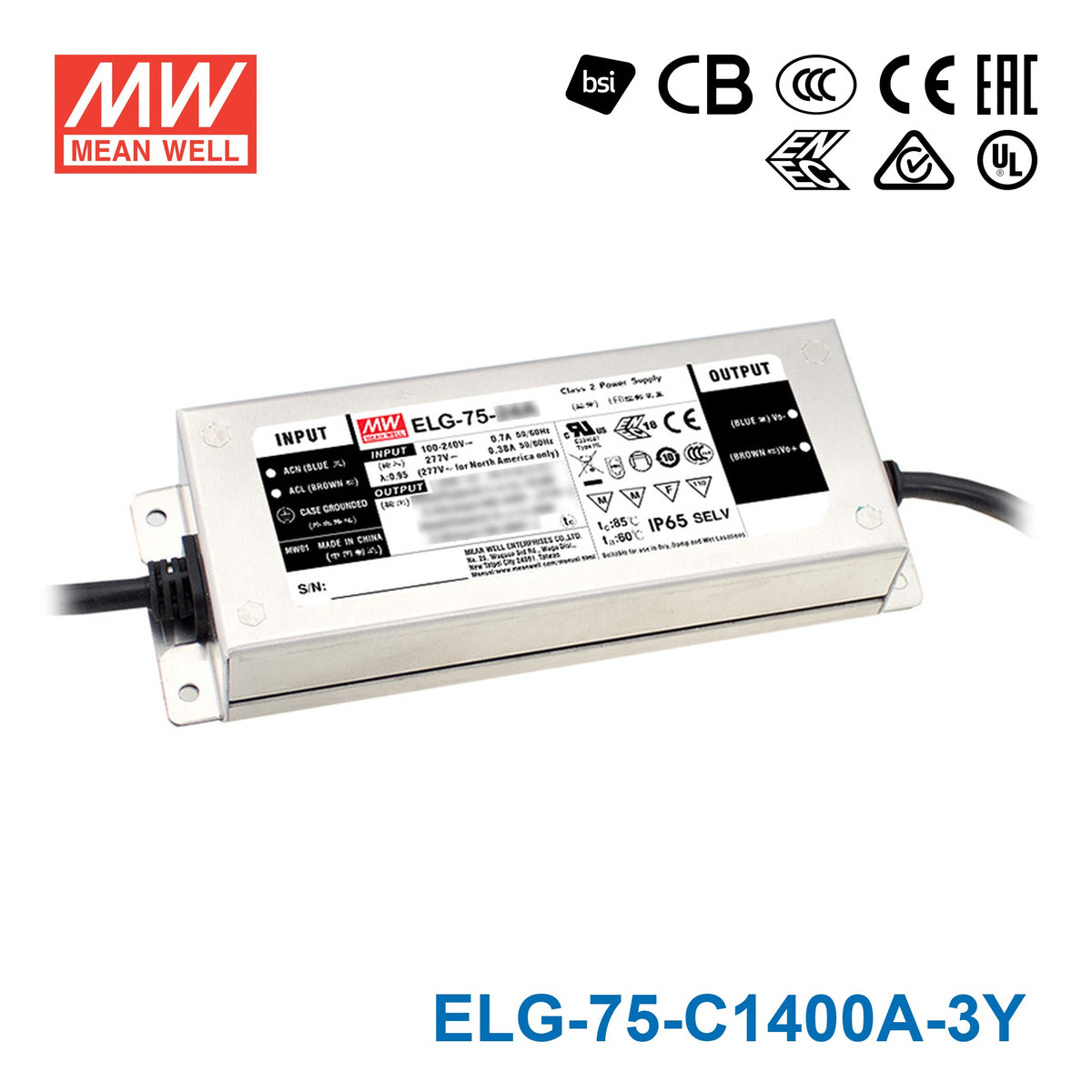

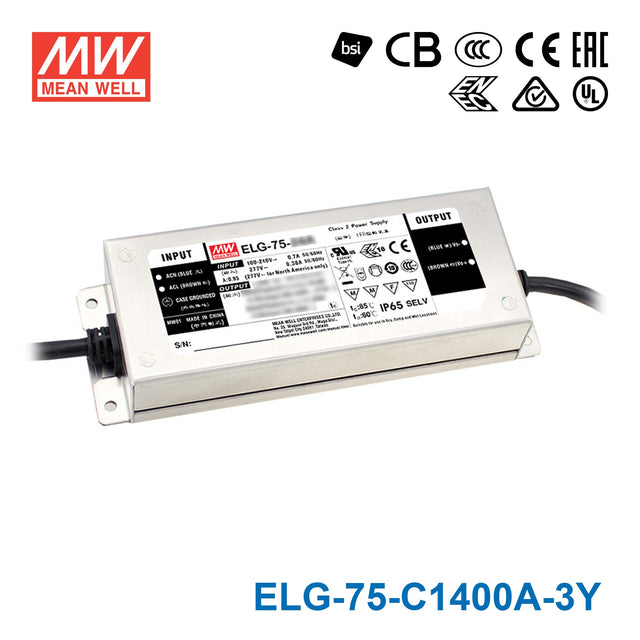

Mean Well ELG-75-C1400A-3Y Power Supply 75W 1400mA - Adjustable — 3-Wire Input (with Earth)

constant currentmetal caseIP655 years warranty

SKU ELG-75-C1400A-3Y

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

ELG-75-C1400A-3Y is the model of this series: rated current 1400mA, typical efficiency 90%.

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C1400A-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60.2W
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
OPEN CIRCUIT VOLTAGE(max.): 61V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 64 ~ 79V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-C1400A-3Y BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C1400A-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-75-C1400A-3Y OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C1400A-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C1400A-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C1400A-3Y MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-75-C1400A-3Y ※ B/DA-Type — ※ B/DA-Type

ELG-75-C1400A-3Y Illustration (page 9) — Illustration (page 9)

ELG-75-C1400A-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C1400)(EN) PDF Download

FAQ

Is the ELG-75-C1400A-3Y suitable for outdoor LED luminaires in wet or coastal locations?

Yes. The ELG-75-C1400A-3Y is rated IP65, protecting against water jets and dust ingress. Its working case temperature (Tcase) range is -40°C to +85°C, accommodating both cold climates and warmer outdoor installations such as coastal area lighting and open-air facility lighting.

Can the ELG-75-C1400A-3Y power LED modules in mid-power LED downlights?

Yes. The ELG-75-C1400A-3Y outputs 1.4A constant current at up to 75.6W within a constant current region of 27–54V. LED modules designed for 1.4A operation with a forward voltage within the driver's output range are compatible, and the number of series LEDs depends on each LED's individual forward voltage.

What does the '3Y' suffix on the ELG-75-C1400A-3Y indicate?

The '3Y' suffix indicates the 3-wire input model: the input cable carries AC/L, AC/N and a PE (green/yellow) earth conductor. The ELG-75-C1400A-3Y otherwise shares the same 75.6W power, constant-current operation, and IP65 rating as the standard ELG-75-C1400A variant.

Can the ELG-75-C1400A-3Y be used to power LED track lighting in commercial retail spaces?

Yes. At 75.6W and 1.4A constant current, the ELG-75-C1400A-3Y is well sized for powering LED track light modules or spot arrays in commercial retail and display environments. Its wide 100–305VAC input handles both 120V and 277V commercial power circuits.

How does the ELG-75-C1400A-3Y compare to the standard ELG-75-C1400A?

Both are rated at 75.6W (60.2W at 100–180VAC) with 1400mA output, a 27–54V constant current region, 61V max. open circuit voltage, a Tcase range of -40°C to +85°C, IP65, and dimensions of 180 × 63 × 35.5 mm. The difference is the input wiring: the -3Y has a 3-wire input cable (AC/L, AC/N and PE), while the standard ELG-75-C1400A has a 2-wire input cable.

Is the ELG-75-C1400A-3Y appropriate for LED lighting in industrial processing environments?

Yes, within its ratings. The ELG-75-C1400A-3Y operates at case temperatures up to +85°C (Tcase), with output derating at higher ambient temperatures per the load vs temperature curve, so it can serve LED luminaires in industrial processing areas. The IP65 rating provides protection against dust and water jets common in these settings.
