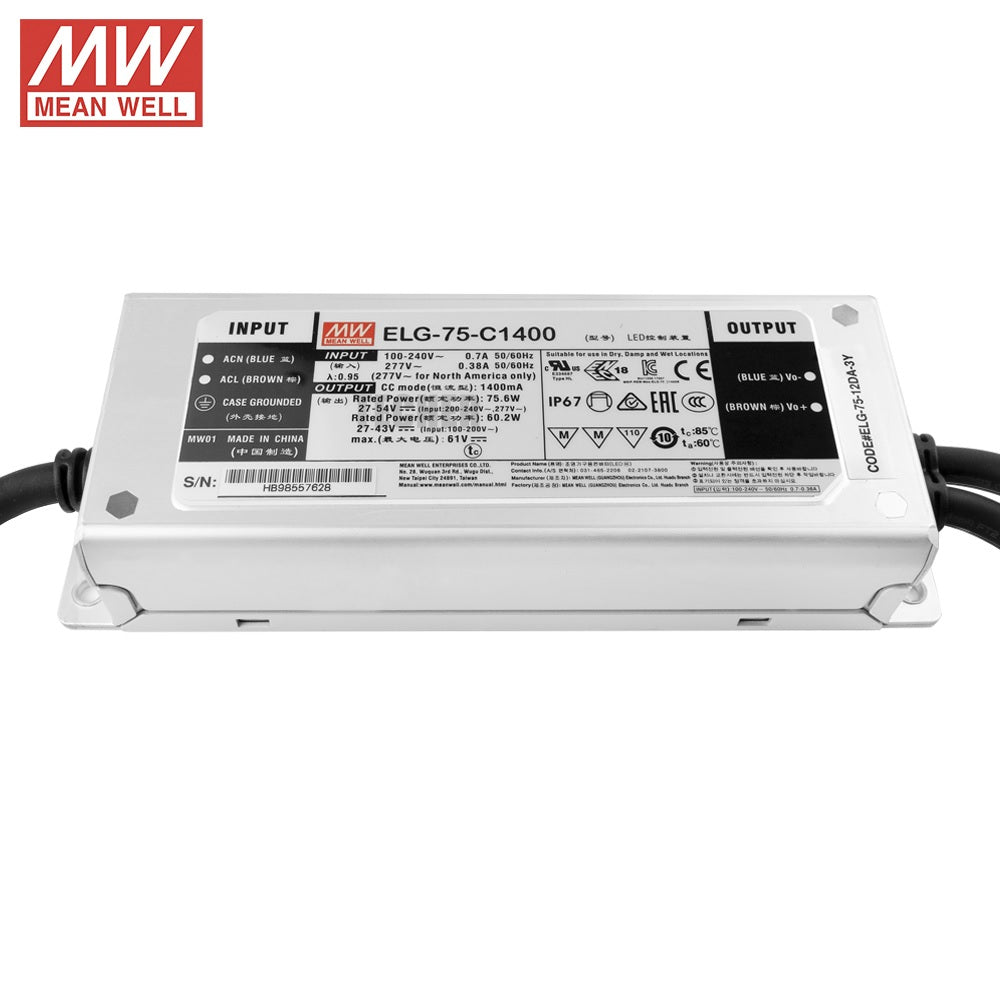

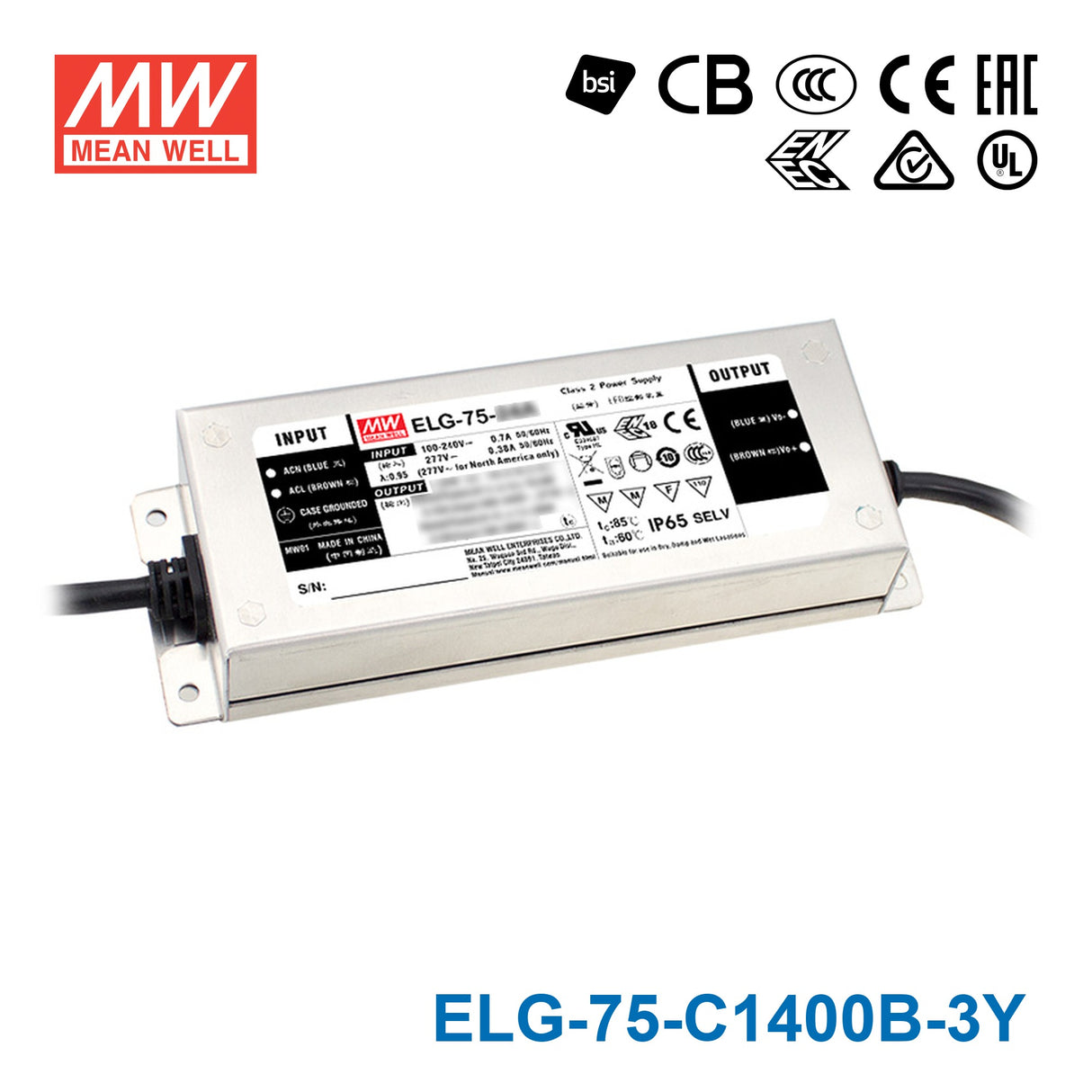

Mean Well ELG-75-C1400B-3Y Power Supply 75W 1400mA - Dimmable — 3-Wire Input (with Earth)

constant currentmetal caseIP675 years warranty

SKU ELG-75-C1400B-3Y

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

ELG-75-C1400B-3Y is the model of this series: rated current 1400mA, typical efficiency 90%. Type B + 3Y: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP67).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Model encoding

Type	Function
Blank	Io fixed; IP67
A	Io adjustable through built-in potentiometer; IP65
B (this model)	3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB	Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA	DALI control technology; IP67

Specifications

ELG-75-C1400B-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC^Note.5: 75.6W
RATED POWER 100VAC ~ 180VAC^Note.5: 60.2W
CONSTANT CURRENT REGION^Note.2: 27 ~ 54V
OPEN CIRCUIT VOLTAGE(max.): 61V
CURRENT ADJ. RANGE: 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 64 ~ 79V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ELG-75-C1400B-3Y BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C1400B-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-75-C1400B-3Y OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C1400B-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C1400B-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C1400B-3Y ※ B/DA-Type — ※ B/DA-Type

ELG-75-C1400B-3Y Illustration (page 9) — Illustration (page 9)

ELG-75-C1400B-3Y Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C1400B-3Y datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C1400)(EN) PDF Download

FAQ

What does the -3Y suffix mean on the ELG-75-C1400B-3Y, and why would I choose it over the standard B variant?

The -3Y designation indicates the 3-wire input model: its input cable carries AC/L, AC/N and a PE (green/yellow) earth conductor, so the case can be connected to protective earth. It is otherwise the same as the ELG-75-C1400B in its constant current operation and IP67 waterproof rating. Choose the -3Y when your installation calls for an earthed 3-wire input connection.

Can the ELG-75-C1400B-3Y be used to drive LED downlights in a hospitality or commercial space with a lighting control system?

Yes. The ELG-75-C1400B-3Y operates in constant current mode at 1.4A output, and its B-type dimming interface supports 0–10V, 10V PWM, and resistance control signals. This makes it compatible with most commercial lighting control systems used in hospitality, retail, and office installations.

Is the ELG-75-C1400B-3Y suitable for outdoor LED signage in rainy climates?

Yes. The ELG-75-C1400B-3Y carries an IP67 waterproof rating, providing dust protection and resistance to temporary water submersion. This level of protection is appropriate for outdoor LED signage enclosures exposed to rain and moisture in temperate or tropical climates.

What is the operating temperature range for the ELG-75-C1400B-3Y, and can it be used in unheated outdoor enclosures?

The ELG-75-C1400B-3Y is rated for a working case temperature (Tcase) of -40°C to +85°C, which covers unheated outdoor enclosures in northern climates; at high ambient temperatures the load derates per the load vs temperature curve. The -40°C lower limit makes it suitable for cold-start applications in extreme winter conditions.

Can the ELG-75-C1400B-3Y drive LED modules in a series string for architectural LED array applications?

Yes. As a constant current driver, the ELG-75-C1400B-3Y maintains a stable 1.4A output regardless of load variation, making it well suited for series-connected LED module strings in architectural lighting arrays. The number of LEDs that can be accommodated in the string depends on each LED's forward voltage.
