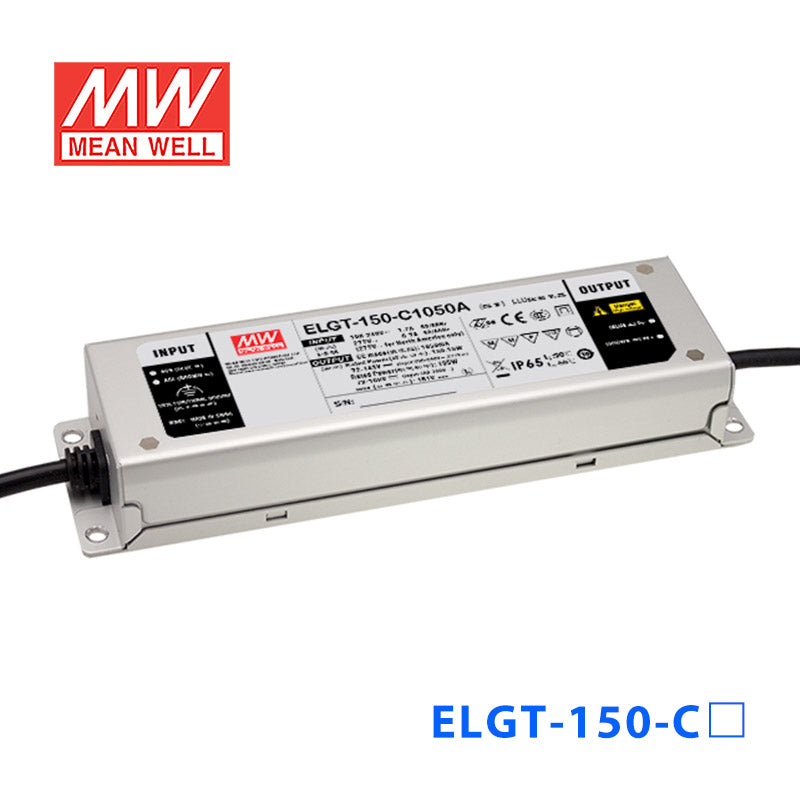

Mean Well ELGT-150-C1400 Power Supply 150W 1400mA

Name: Mean Well ELGT-150-C1400 Power Supply 150W 1400mA
Brand: Mean Well
SKU: ELGT-150-C1400
Price: 118.28 NZD
Availability: InStock

Please for Pricing

Notify me when it's back in stock

Description

ELGT-150-C series is a 105-150W LED AC/DC classII driver featuring the constant current mode and high voltage output. ELGT-150-C operates from 100-305VAC and offers models with different rated current ranging between 700mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40 C-+90 C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. ELGT-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Metal housing design with functional Ground
Class II design Constant
Current mode output Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer: 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;
Typical lifetime>50000 hours
5 years warranty

Applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Comply with class II application

Specifications

Brand

Mean Well
Series

ELGT-C Series
Power Rating

149.8 Watt
Output Voltage

115 Volt
Rated Current

1.4 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

21.9 cm
Width

6.3 cm
Height

3.55 cm
Weight

0.95 kg

File Downloads

::specification::
