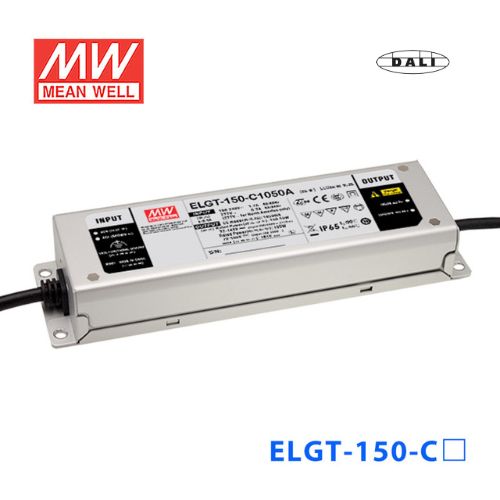

Mean Well ELGT-150-C1400DA Power Supply 150W 1400mA - DALI


|

Description

ELGT-150-C series is a 105-150W LED AC/DC classII driver featuring the constant current mode and high voltage output. ELGT-150-C operates from 100-305VAC and offers models with different rated current ranging between 700mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40 C-+90 C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. ELGT-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Metal housing design with functional Ground
  • Class II design Constant
  • Current mode output Built-in active PFC function
  • No load / Standby power consumption <0.5W
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer: 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;
  • Typical lifetime>50000 hours
  • 5 years warranty

Applications

  • LED street lighting
  • LED harbor lighting
  • LED bay lighting
  • LED greenhouse lighting
  • LED flood lighting
  • Comply with class II application

Specifications

  • Brand
    Mean Well
  • Series
    ELGT-C Series
  • Power Rating
    149.8 Watt
  • Output Voltage
    115 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    BSI,CB,CCC,CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    21.9 cm
  • Width
    6.3 cm
  • Height
    3.55 cm
  • Weight
    0.95 kg

File Downloads

::specification::
