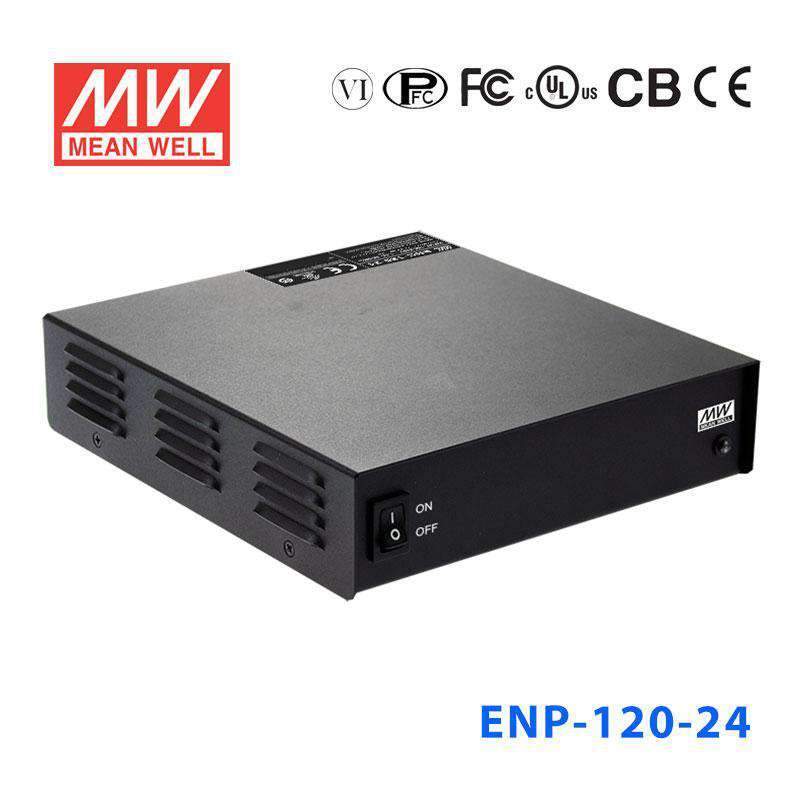

Mean Well ENP-120-24 Desktop Type Chargers 120W 27.6V 4.3A - Level ...
Please Login for Pricing
Description
Description
Features
| Universal AC input/Full range |
| Built-in active PFC function |
| Energy efficiency Level VI |
| No load power consumption <0.15W |
| Comply with EISA 2007/DoE, NRCan, and EU Erp |
| 125% peak load capability |
| Fanless design, cooling by free air convection |
| Protection: Short circuit/ Overload/ Over voltage/ Over temperature |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current (max.) | Cold start, 65A at 230VAC |
| Overload protection | 110~125% Constant current limiting, auto-recovery |
| Over-voltage protection | 112%~132% rated voltage |
| Setup, rise, hold up time | 1000ms,100ms,20ms at full load |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70ºC |
| Safety standards | IEC62368-1, UL62368-1 |
| EMC standards |
EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) (mm) | 192x178x45.5mm |
| Packing | 10pcs/10.8Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesENP Series
-
Power Rating120 Watt
-
Output Voltage27.6 Volt
-
Rated Current4.3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length19.2 cm
-
Width17.8 cm
-
Height4.55 cm
-
Weight0.98 kg
