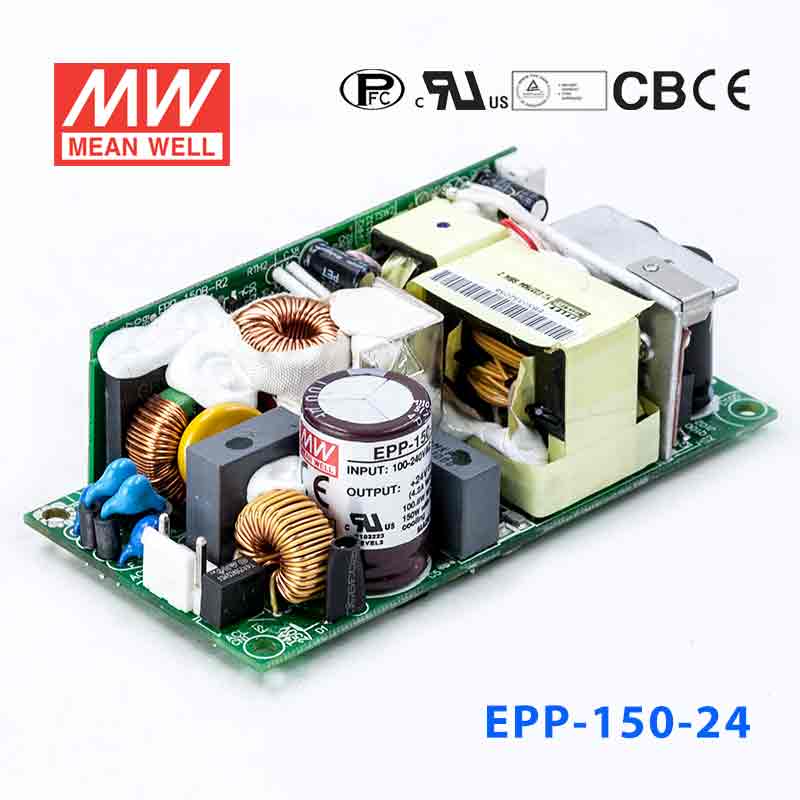

Mean Well EPP-150-24 Power Supply 100W 24V
Please Login for Pricing
Description
Description
Features
| 4"x2" compact size |
| Universal AC input / Full range |
| Built-in active PFC function |
| High efficiency up to 93% |
| Protections: Short circuit/Overload/Over voltage/Over temperature |
| 100W free air convection, 150W with 20CFM forced air |
| LED indicator for power on |
| No-load power consumption<0.5W |
| Built-in 12V /0.3A auxiliary output |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | COLD START 70A/230VAC |
| Leakage current | <2mA/240VAC |
| Overload protection | 105 ~ 145% rated output power |
| Over-voltage protection | 110%~130% rated output voltage |
| Setup, rise, hold up time | 1000ms, 30ms, 16ms |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| Connection | I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH |
| Dimension (LxWxH) | 101.6x50.8x29 |
| Packing | 72pcs / 15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.9 cm
-
Weight0.2 kg
