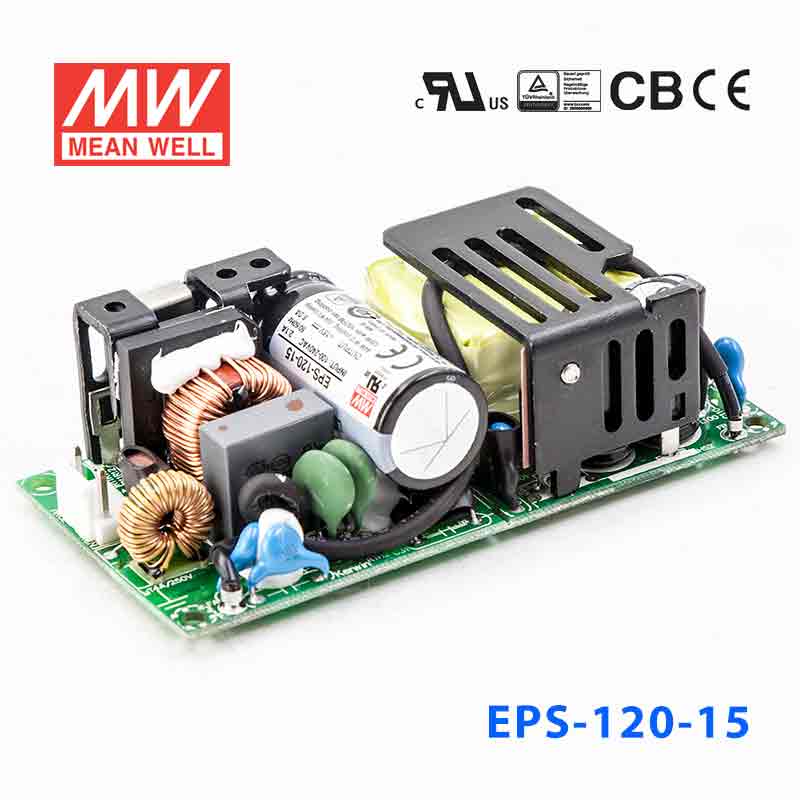

Mean Well EPS-120-15 Power Supply 84W 15V
Please Login for Pricing
Description
Description
Features
| 4"x2" miniature size |
| Universal AC input / Full range |
| EMI Class B for both Class I (with FG) and Class II (without FG) configuration |
| No load power consumption < 0.3W |
| High efficiency up to 91% |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection for 48W and 120W with 10CFM |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | |
| AC inrush current (max.) | COLD START 30A/115VAC | 60A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode recovers automatically after the fault condition is removed |
| Over-voltage protection | 110%~135% | Protection type: Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating84 Watt
-
Output Voltage15 Volt
-
Rated Current5.6 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.9 cm
-
Weight0.15 kg
