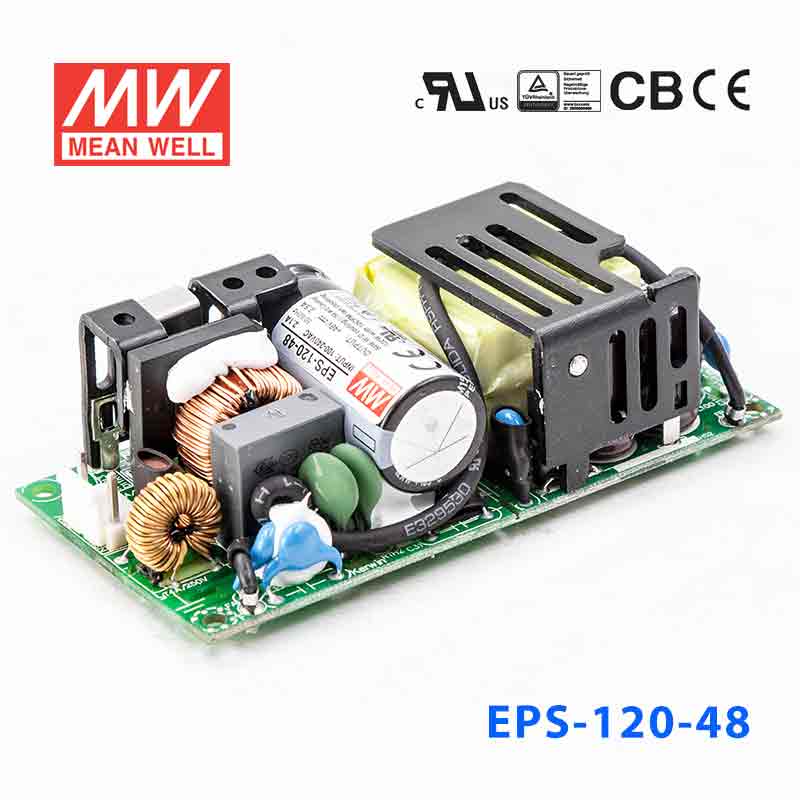

Mean Well EPS-120-48 Power Supply 84W 48V

3" x 2", economical non-PFC, small size, high efficiency
SKU:
EPS-120-48

|

Description

Features

4"x2" miniature size
Universal AC input / Full range
EMI Class B for both Class I (with FG) and Class II (without FG) configuration
No load power consumption < 0.3W
High efficiency up to 91%
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection for 48W and 120W with 10CFM
Compact size
LED indicator for power on
3 years warranty
Case available

General Specification

AC input voltage range
AC inrush current (max.) COLD START 30A/115VAC | 60A/230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 115%~160% rated output power
Overload protection Type Hiccup mode recovers automatically after the fault condition is removed
Over-voltage protection 110%~135% | Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 3+4P/3.96mm pitch, JST B3P/B4P-VH
Dimension (LxWxH) PCB: 101.6x50.8x29 ; Case: 103.4x62x37

Specifications

  • Brand
    Mean Well
  • Series
    EPS Series
  • Power Rating
    84 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.75 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    10.16 cm
  • Width
    5.08 cm
  • Height
    2.9 cm
  • Weight
    0.15 kg

File Downloads

::specification::
