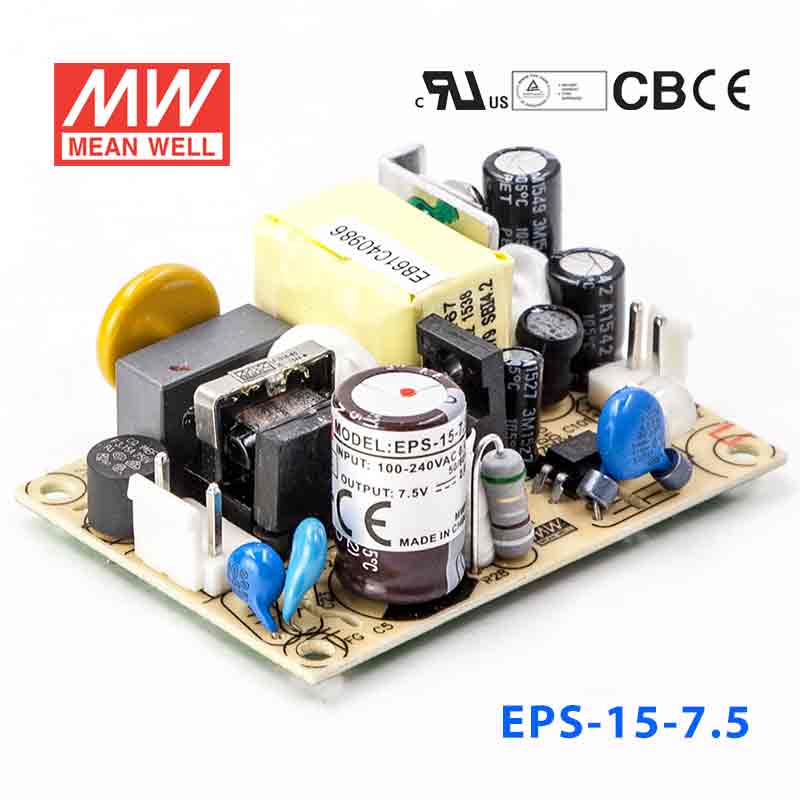

Mean Well EPS-15-7.5 Power Supply 15W 7.5V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 85% |
| Cooling by free air convection |
| Compact size |
| Operating altitude up to 3000 meters |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 45A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~150% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL62368-1, TUV EN/EN62368-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+2P/3.96mm pitch, JST B3P/B2P-VH |
| Dimension (LxWxH) | 63.5x45.7x24 |
| Packing | 120pcs/7.84Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.35 cm
-
Width4.57 cm
-
Height2.4 cm
-
Weight0.06 kg
