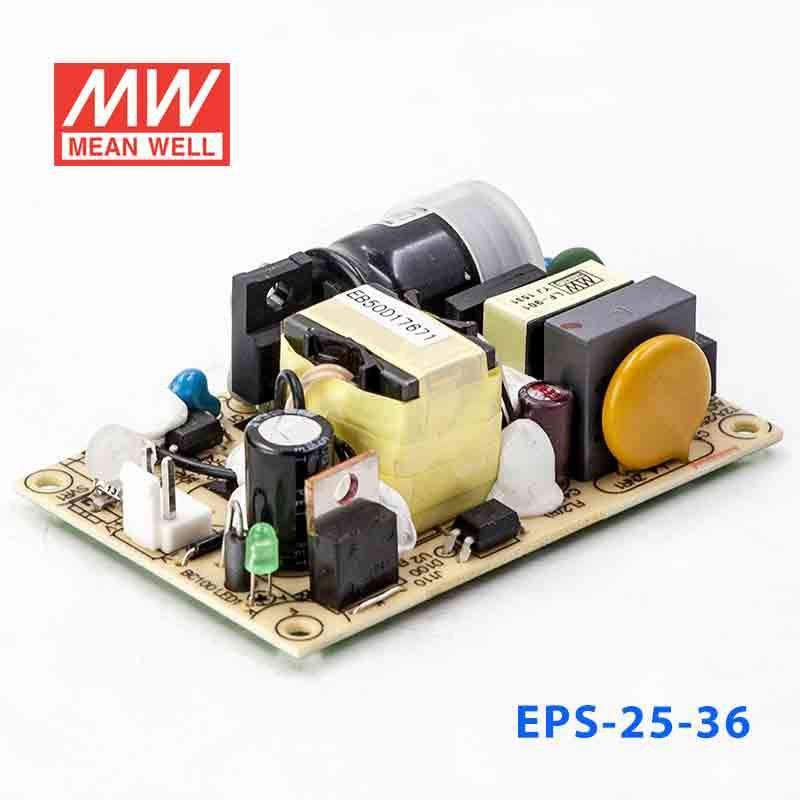

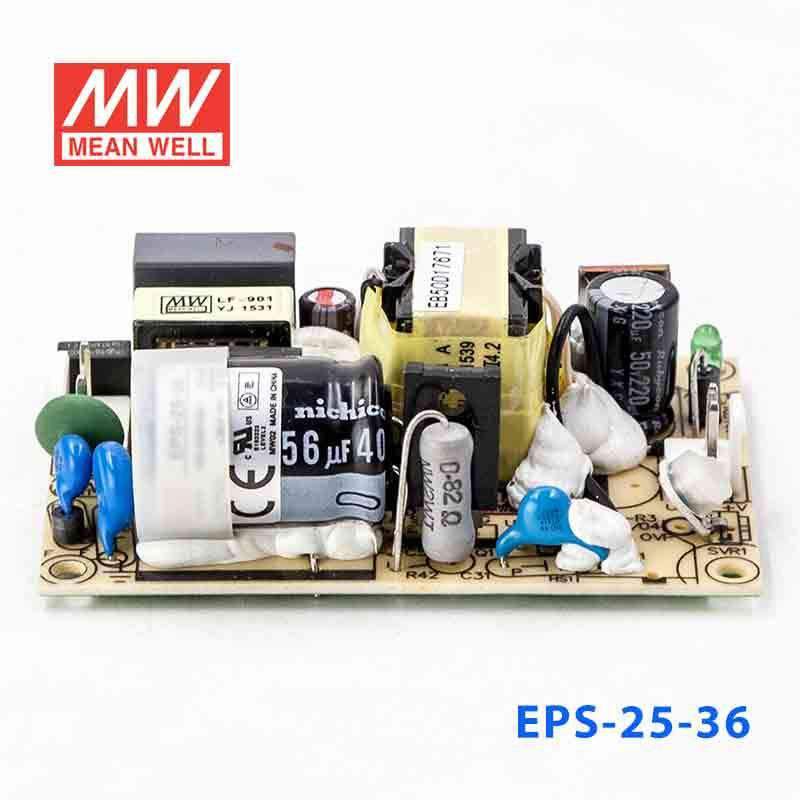

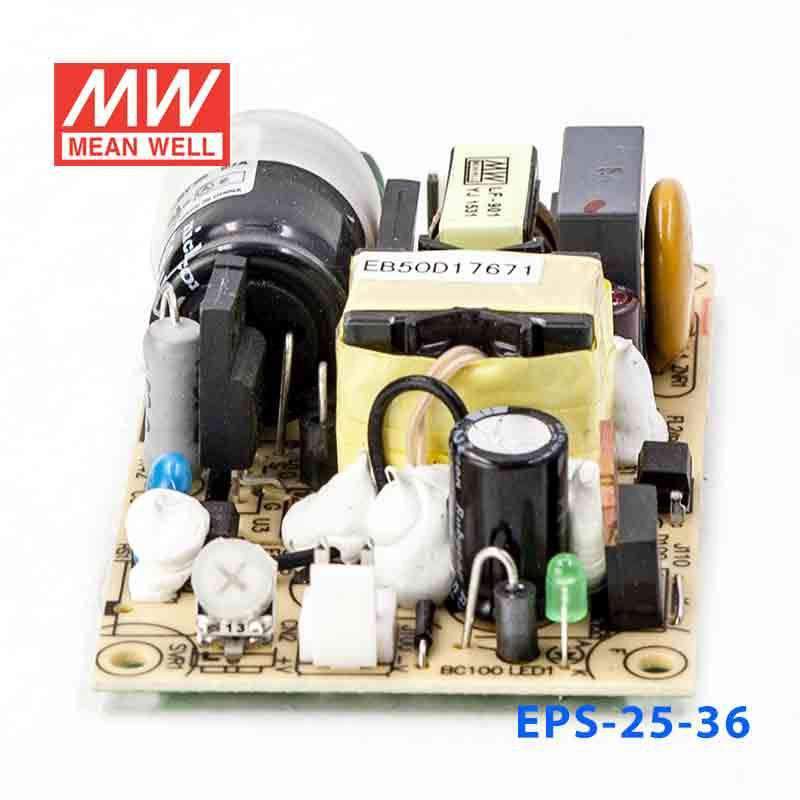

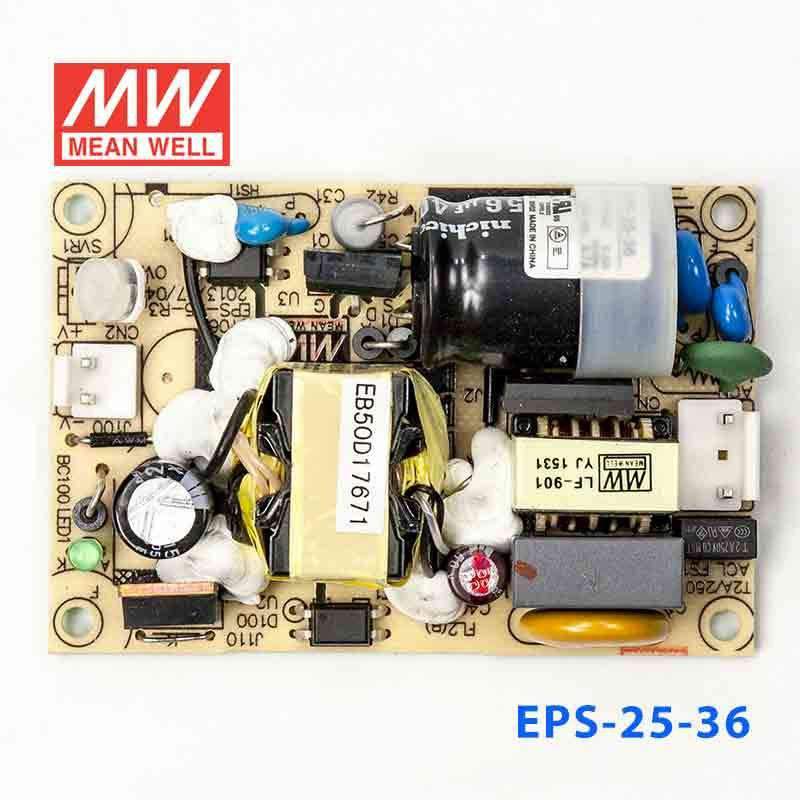

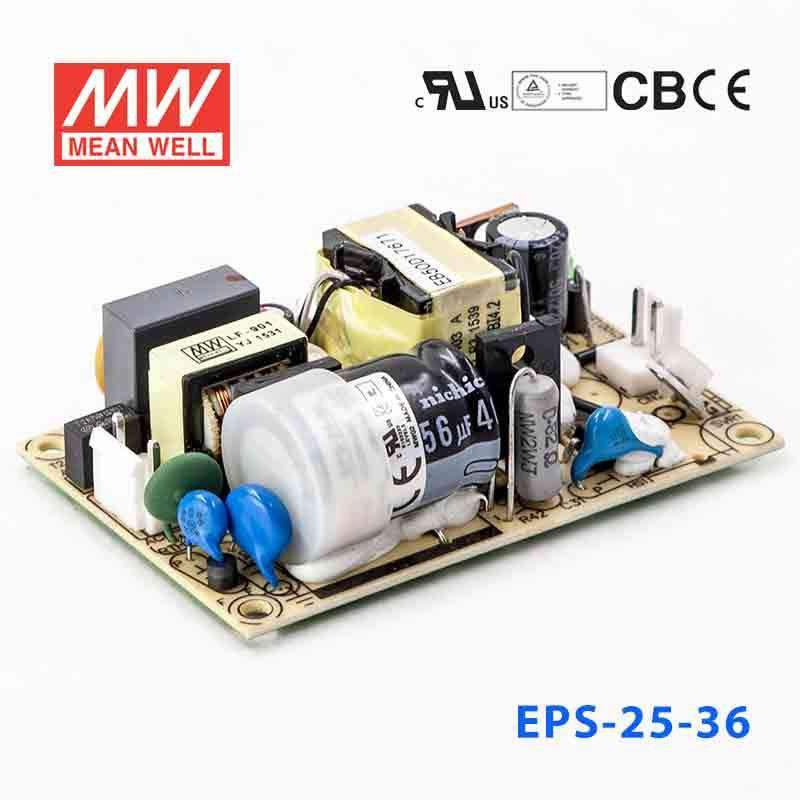

Mean Well EPS-25-36 Power Supply 25W 36V

3" x 2", economical non-PFC, small size, high efficiency
SKU:
EPS-25-36

|

Description

Features

Universal AC input / Full range
No load power consumption < 0.3W
Protections: Short circuit / Overload / Over voltage
High efficiency up to 90%
Cooling by free air convection
Compact size
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 115%~170% rated output power
Overload protection Type Hiccup mode, auto recovery
Over voltage protection 110%~140%
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 3+2P/3.96mm pitch, JST B3P/B2P-VH
Dimension (LxWxH) 76.2x50.8x24

Specifications

  • Brand
    Mean Well
  • Series
    EPS Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    7.62 cm
  • Width
    5.08 cm
  • Height
    2.4 cm
  • Weight
    0.08 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8430205239595, "variants" :[{ "context":"default", "variant_id": 45661606314283, "sku":"EPS-25-36", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
Mean Well EPS-25-36 Power Supply 25W 36V
Mean Well

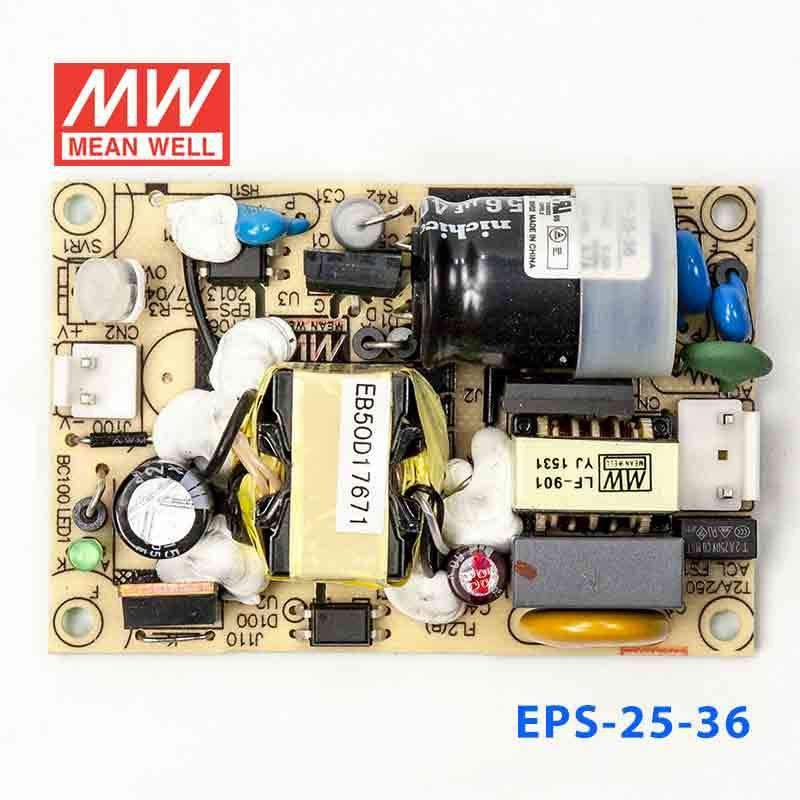

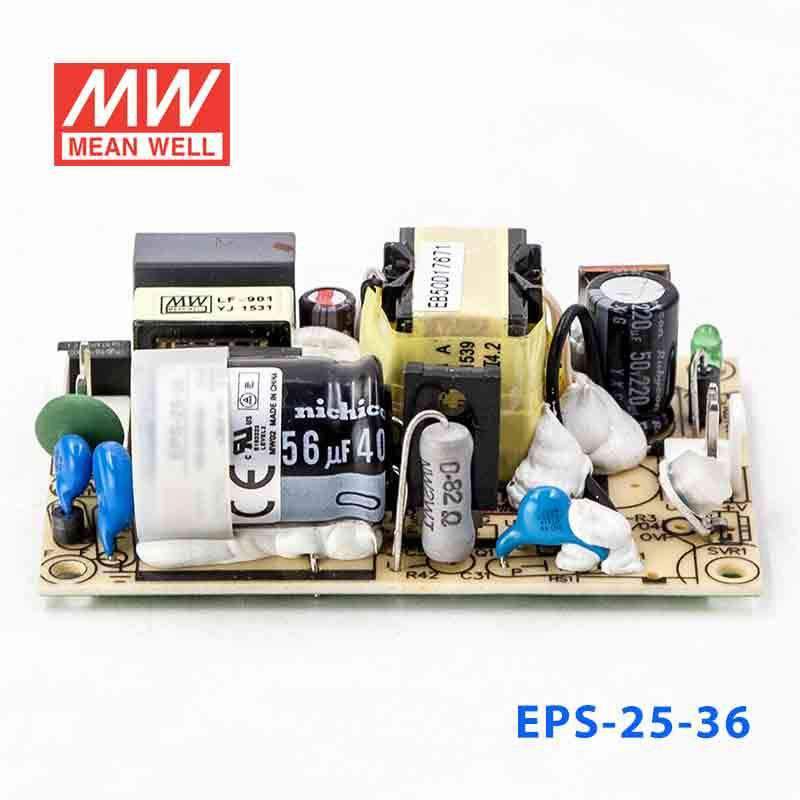

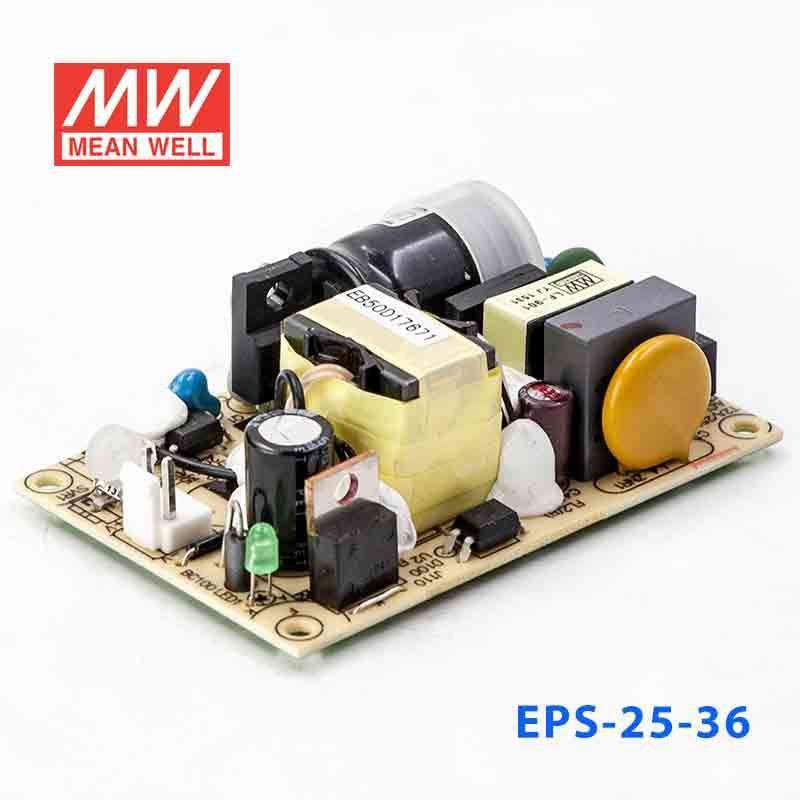

Mean Well EPS-25-36 Power Supply 25W 36V
