Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

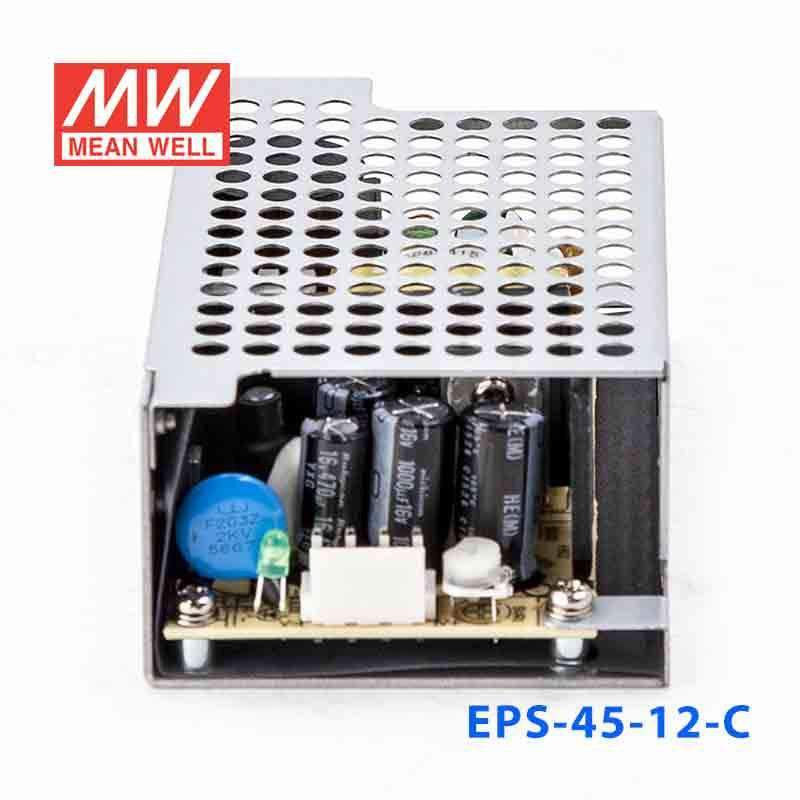

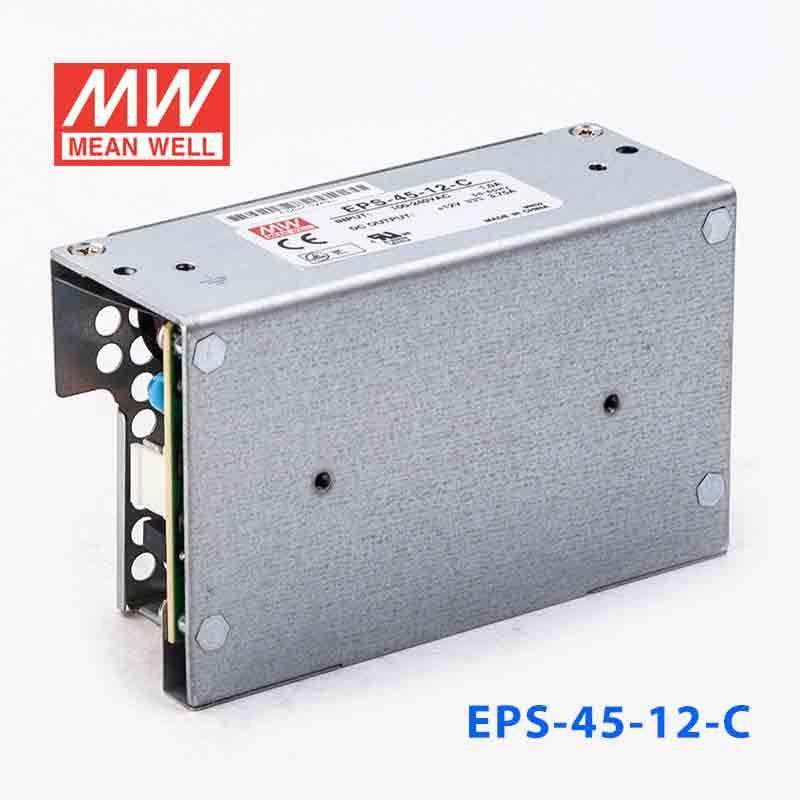

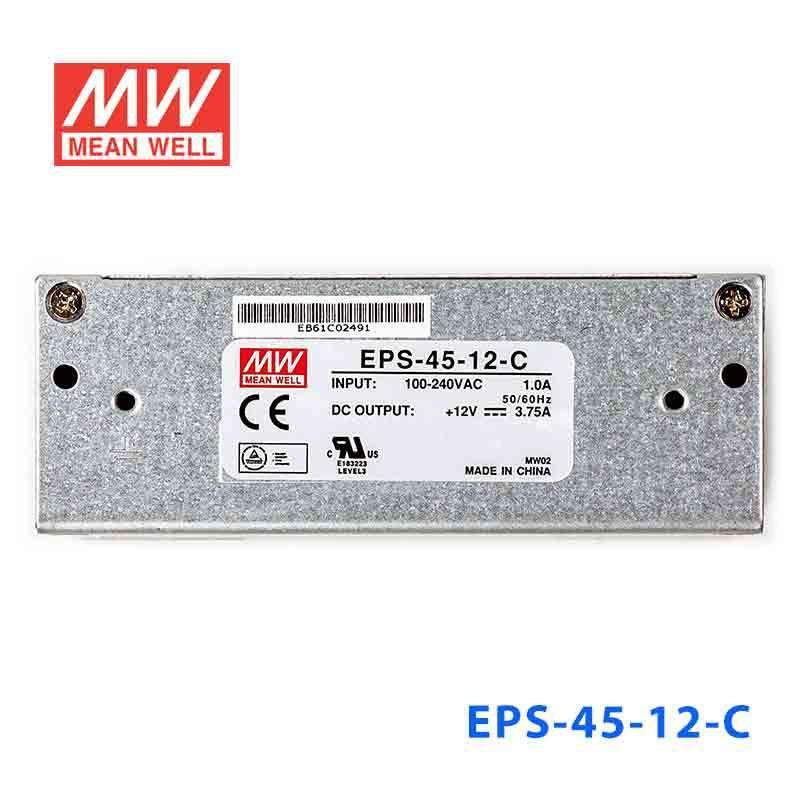

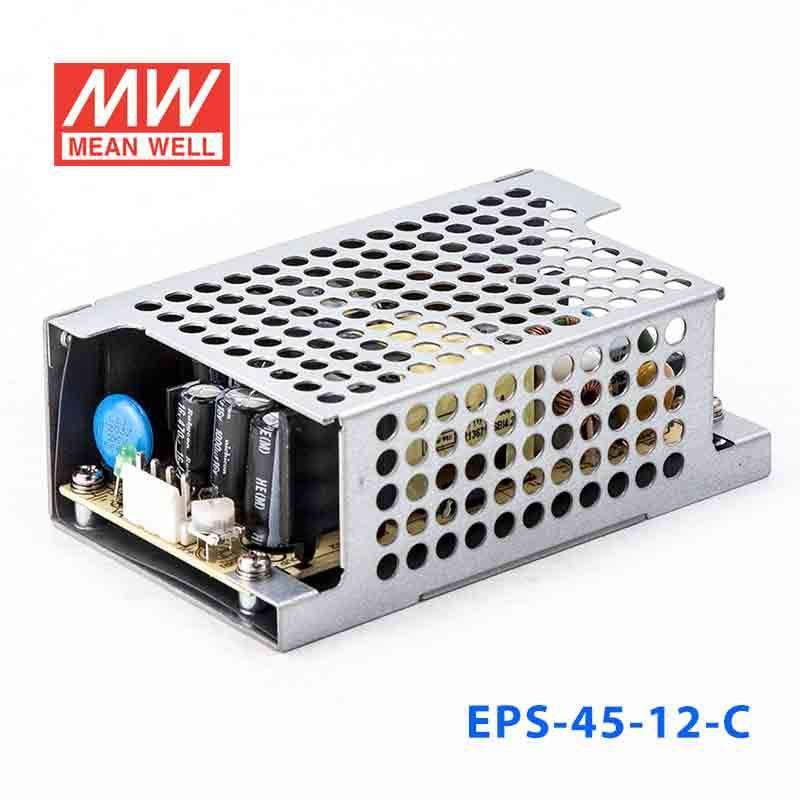

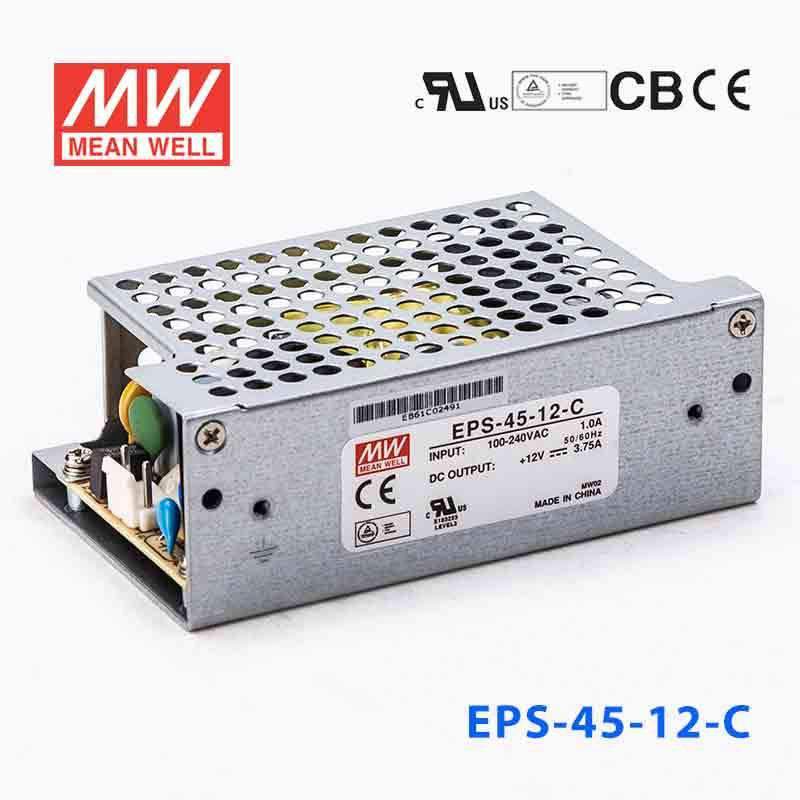

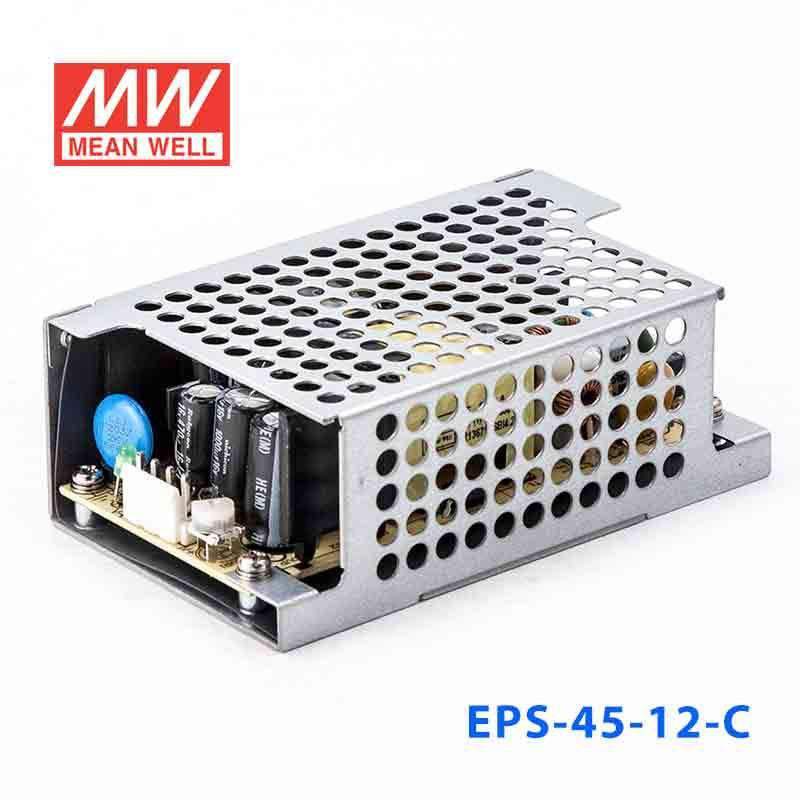

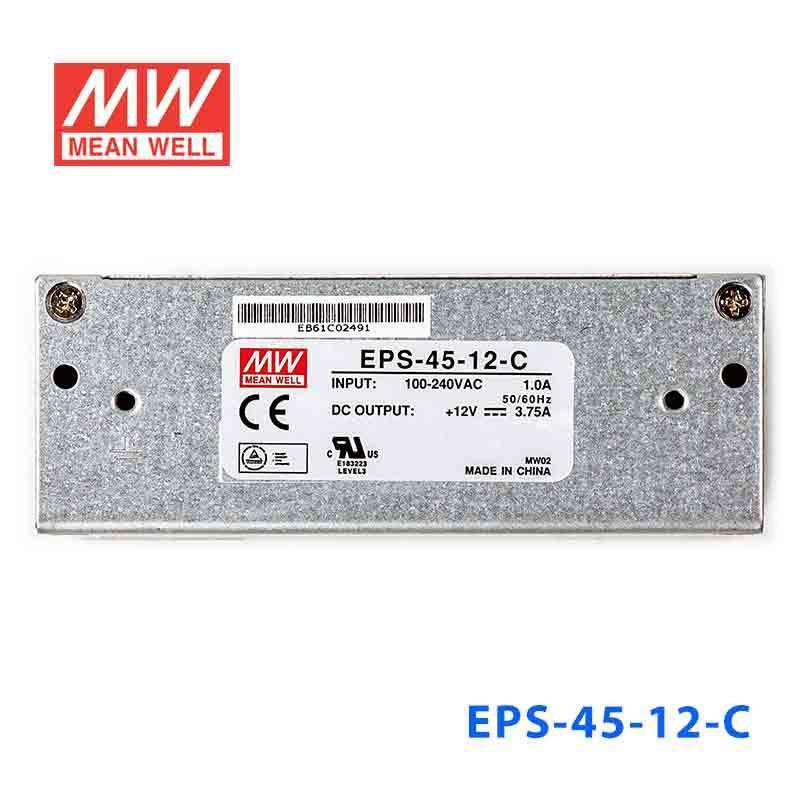

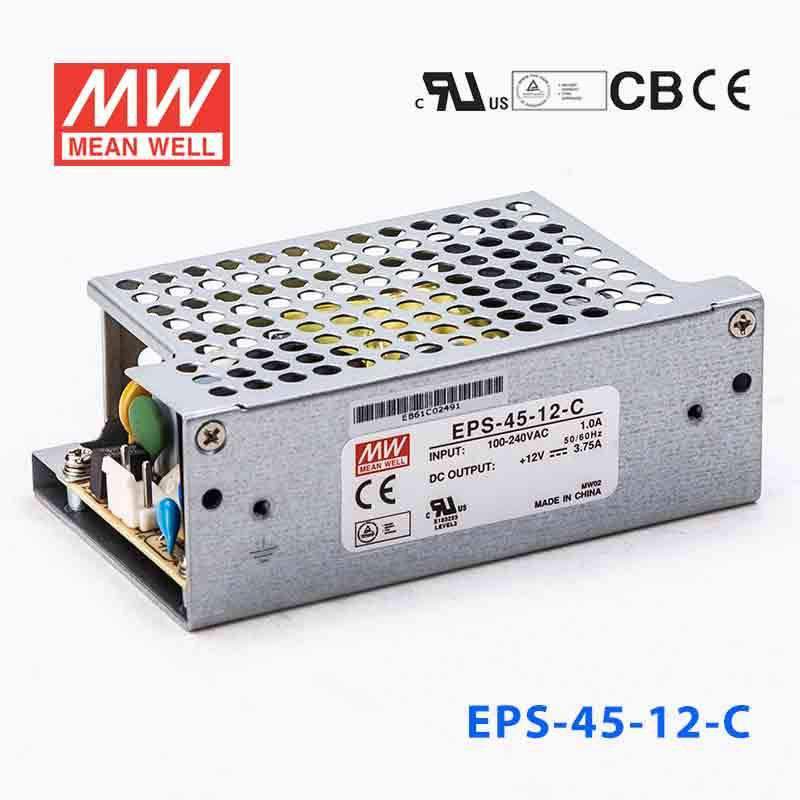

Mean Well EPS-45-12-C Power Supply 45W 12V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.3W |
| Protections: Short circuit / Overload / Over voltage |
| High efficiency up to 90% |
| Cooling by free air convection |
| Compact size |
| LED indicator for power on |
| 3 years warranty |
| Case available |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~160% rated output power |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection | 110%~135% |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3+4P/3.96mm pitch, JST B3P/B4P-VH |
| Dimension (LxWxH) | PCB: 101.6x50.8x29 ; Case: 103.4x62x37 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating45 Watt
-
Output Voltage12 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.34 cm
-
Width6.2 cm
-
Height3.7 cm
-
Weight0.3 kg
