Description
Description
Features
Universal AC input / Full range |
Built-in active PFC function |
Protections: Short circuit / Overload / Over voltage / Over Temp. |
No load power consumption < 0.5W |
High efficiency up to 91% |
2 stage charging characteristic |
Cooling by free air convection |

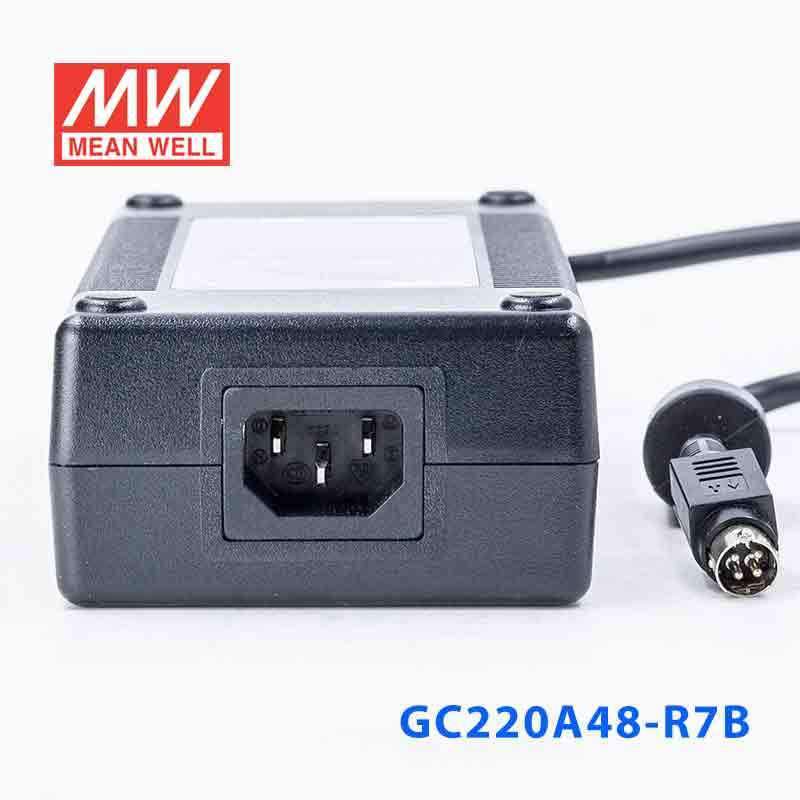

3 pole AC inlet IEC320-C14 |
Class I power (with earth pin) |
Fully enclosed plastic case |

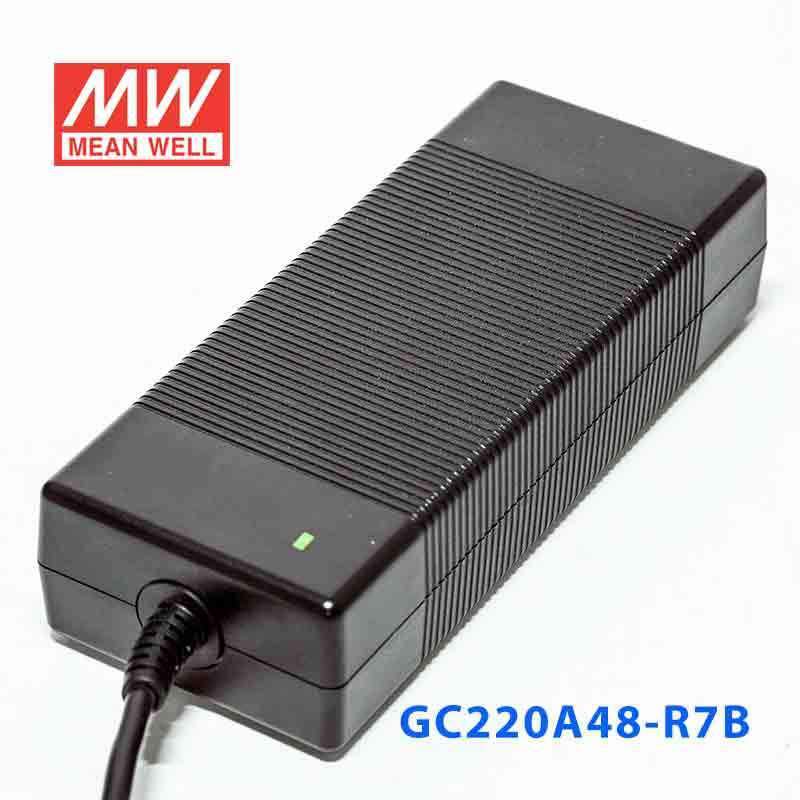

2 color LED indicator for charging status |
2 years warranty |
General Specification
AC input voltage range | 85~264VAC; 120~370VDC |
Overload protection | 90~110% constant current, auto-recovery |
Over voltage protection | 105%~135% shut down O/P voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC |
Working temperature | -30~+70°C (refer to derating curve) |
Safety standards | UL1012 (GC120Axx-AD1 only), EN60950-1 approved |
EMC standards | EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
Dimension (LxWxH) | 167x 67x 35 mm |
Length of output cable | 120cm of UL2464, 18AWGx 4C |
Standard DC plug | Power DIN 4P with lock type (R7B) |
Specifications
Specifications
-
BrandMean Well
-
SeriesGC Series
-
Power Rating120.2 Watt
-
Output Voltage54.4 Volt
-
Rated Current2.21 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,cUL,EAC,FCC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length16.7 cm
-
Width6.7 cm
-
Height3.5 cm
-
Weight0.62 kg
